PLAN 929-534
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 929-534
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Full Specs & Features
Height : 27'
Width : 56' 4"
First Floor: 1949 sq/ft
Roof Framing : Conventional
Framing : Wood - 2x4
Formal Dining Room
Unfinished Future Space
Covered Rear Porch
3rd BR Closet:
19 sq/ft width 6' x depth 3' 4"
Bathroom 2:
45 sq/ft width 5' x depth 9'
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 2 Closet:
21 sq/ft width 6' 4" x depth 3' 4"
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 3 Closet:
21 sq/ft width 6' 4" x depth 3' 4"

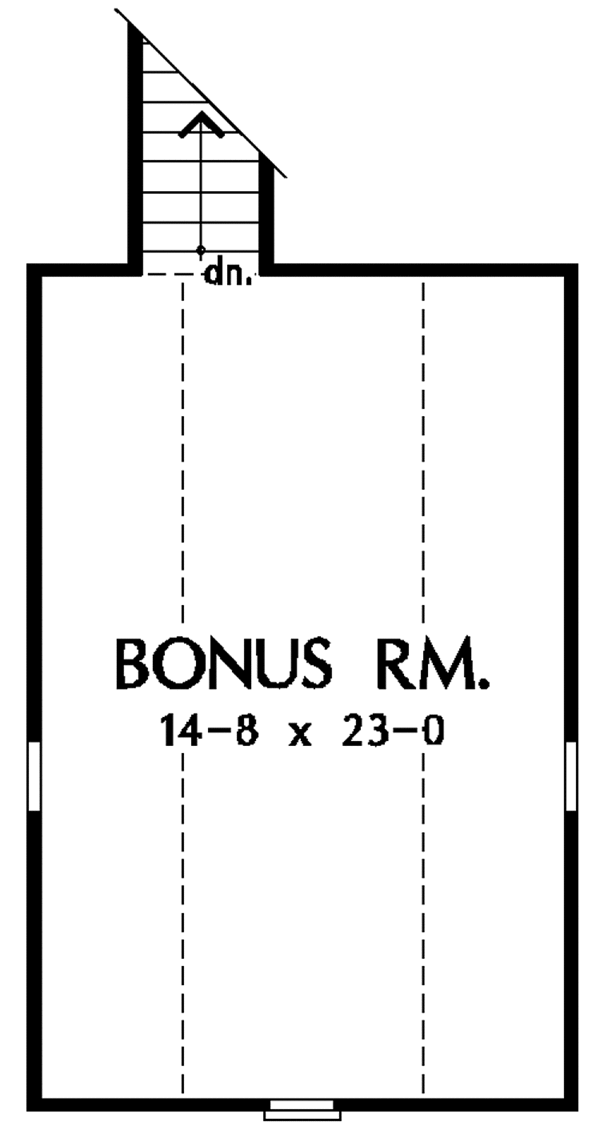

Bonus Room - Finished:
337 sq/ft width 14' 8" x depth 23'
Breakfast Room:
81 sq/ft width 9' x depth 9'
Coat Closet:
15 sq/ft width 2' x depth 7' 8"
Dining Room:
143 sq/ft width 11' x depth 13'
Foyer:
66 sq/ft width 6' x depth 11'
Garage:
513 sq/ft width 22' 4" x depth 23'
Garage Storage:
37 sq/ft width 6' 4" x depth 6'
Gathering Room:
380 sq/ft width 19' 8" x depth 19' 4"
Kitchen:
132 sq/ft width 11' x depth 12'
Linen Closet:
3 sq/ft width 1' x depth 3' 4"
Master Bathroom:
83 sq/ft width 7' 4" x depth 11' 4"
Master Bedroom:
221 sq/ft width 13' x depth 17'
Porch - Front:
151 sq/ft width 21' 8" x depth 7'
Porch - Rear:
200 sq/ft width 21' 6" x depth 9' 4"
Storage:
21 sq/ft width 10' 10" x depth 2'
Utility Room:
36 sq/ft width 6' x depth 6'
