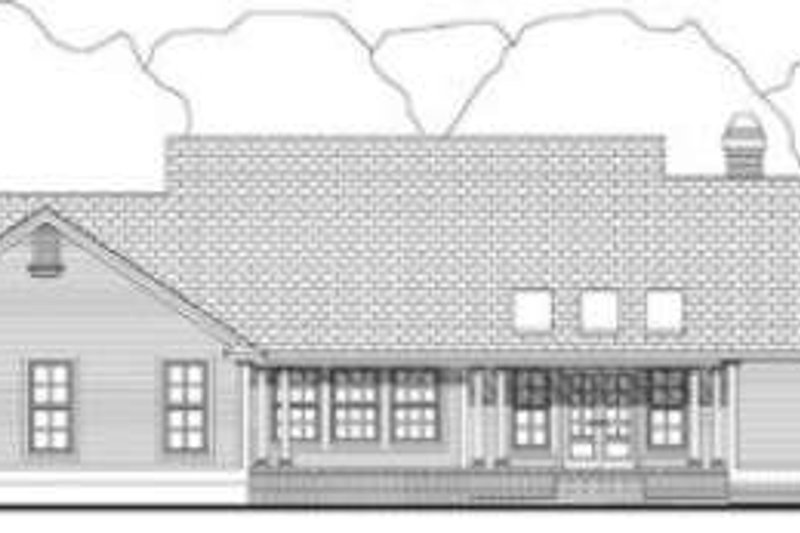

Southern Exterior - Rear Elevation Plan #406-202

Select Plan Set Options

What's included?
Additional Construction Sets
$55.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
$1050.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 406-202

Key Specs


1974
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

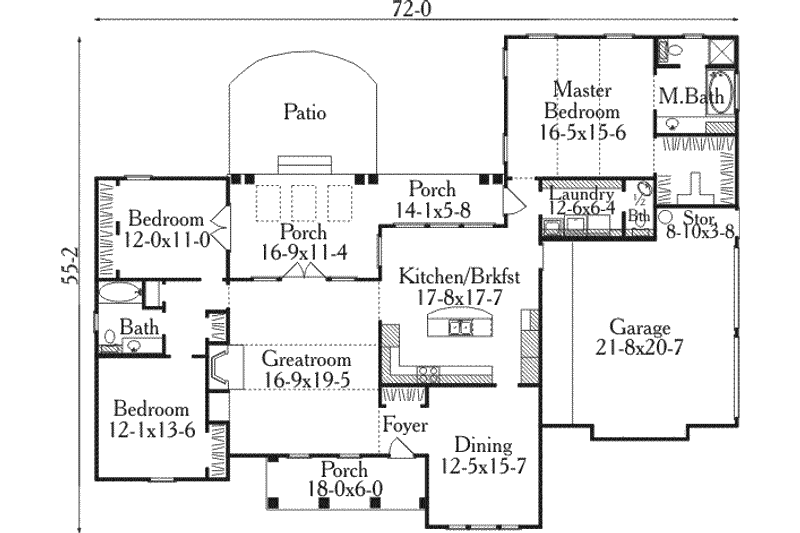

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 55' 2"
Height : 21'
Width : 72'
Area
First Floor: 1974 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Hall Bathroom:

59 sq/ft width 8' 2" x depth 7' 4"

Master Bathroom:

92 sq/ft width 10' 8" x depth 8' 8"

What's Included In This Plan Set


  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
