PLAN 70-1271
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
An impressive porch greets you as you approach this Craftsman inspired, two-bedroom ranch home. An open concept design includes a kitchen that overlooks both the dining area and great room to create a comfortable living space. The bedrooms are located to the left of the entry and include a master suite with direct access to the laundry, private bath and walk-in closet. The second bedroom lies to the front of the home and features a walk-in closet and private bath. A split-load three-stall garage completes the home.
Floor Plans

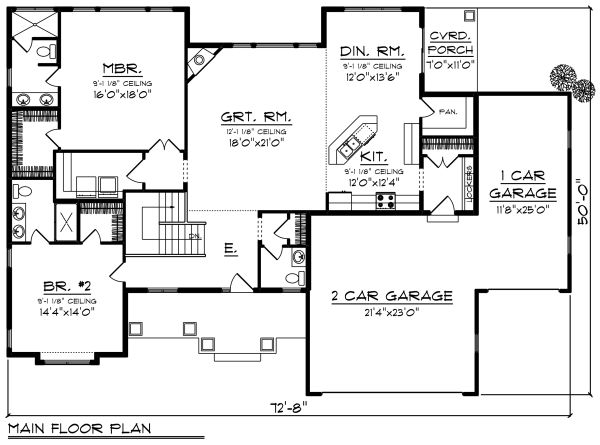

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 24' 10"
Width : 72' 8"
Area
Garage : 817 sq/ft
Main Floor : 1986 sq/ft
Porch : 237 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 9'. Grt Rm 12'
Lower Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Secondary Pitch : 8:12
Exterior Wall Framing
Framing : 2x6
Insulation : Shake, Siding
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Empty Nester
Suited For Vacation Home
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover sheet with front rendering
- Foundation Plan(s): Foundation plans at 1/4" = 1' scale
- Floor Plan(s): Floor plans at 1/4" = 1' scale
- Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building sections and details as required to construct the individual design
- Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
- Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): General specification design notes
