PLAN 928-163
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 28'
Height : 29' 6"
Width : 62'
Area

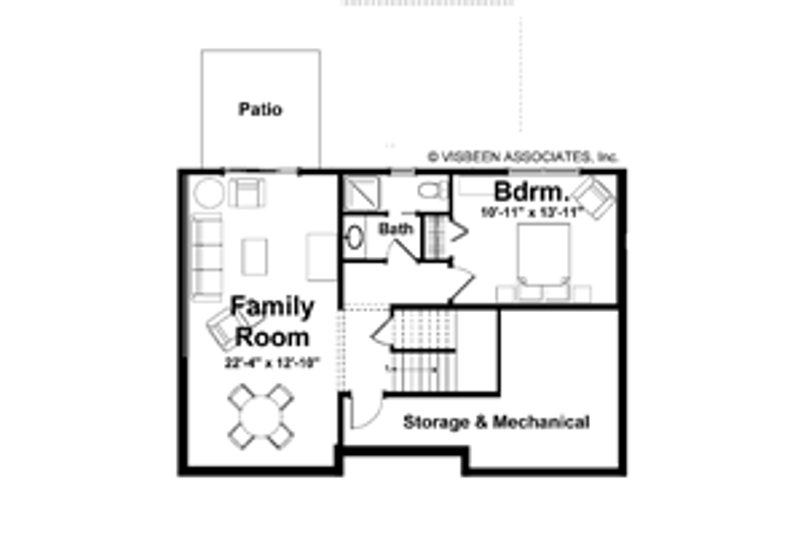

Basement Unfinished: 657 sq/ft height 9'
First Floor: 1002 sq/ft height 9'
Second Floor: 988 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Deck
Rooms
Bathroom 2:
142 sq/ft width 13' 9" x depth 10' 4"
Bedroom 2:
151 sq/ft width 11' 4" x depth 13' 4"
Bedroom 3:
149 sq/ft width 11' 3" x depth 13' 4"
Den:
99 sq/ft width 9' x depth 11'
Dining Room:
141 sq/ft width 13' 3" x depth 10' 8"
Family Room:
286 sq/ft width 22' 4" x depth 12' 10"
Garage:
504 sq/ft width 21' 4" x depth 23' 8"
Kitchen:
146 sq/ft width 11' 3" x depth 13'
Living Room:
204 sq/ft width 16' x depth 12' 9"
Master Bedroom:
173 sq/ft width 11' 3" x depth 15' 5"
What's Included In This Plan Set
Please note: If you are building this plan in the state of Michigan, please give us a call to confirm availability. The designer has some geographic restrictions in Michigan.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
-
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Important: If you are ordering a CAD set, or Right-Reading Reverse on this plan, please allow two weeks for delivery based on the current design schedule.
Plan Set
$995.00
$2995.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
