Full Specs & Features
Depth : 38'
Height : 27'
Width : 71'
Garage : 560 sq/ft

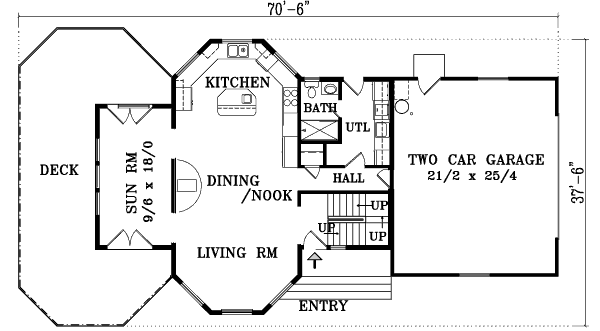

Main Floor : 1023 sq/ft

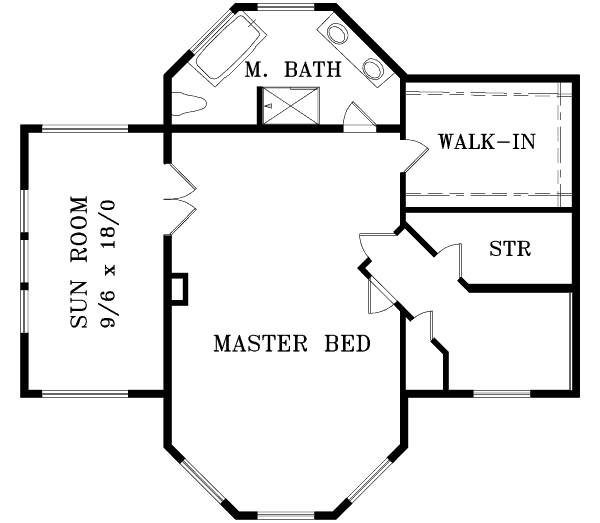

Upper Floor : 968 sq/ft
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x6"
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Side Entry Garage
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
