PLAN 40-361
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

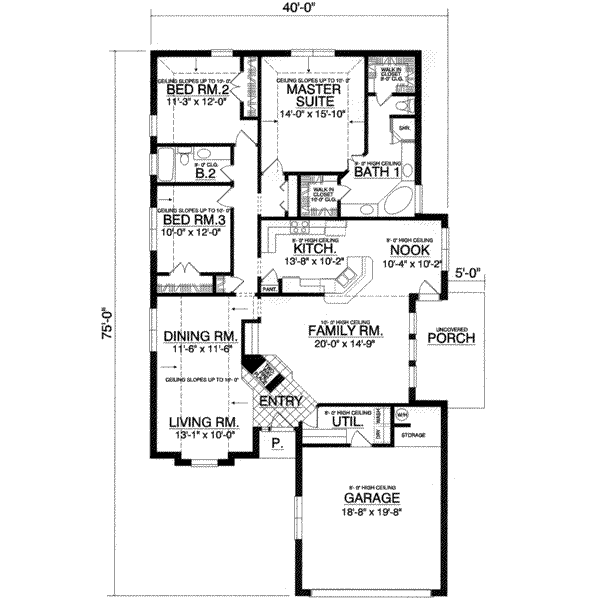

Floor Plans
Full Specs & Features
Dimension
Depth : 75'
Height : 22' 10"
Width : 40'
Area
First Floor: 1998 sq/ft height 8'
Garage: 462 sq/ft
Porch: 158 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Rooms
Bedroom 2:
135 sq/ft width 11' 3" x depth 12'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Dining Room:
132 sq/ft width 11' 6" x depth 11' 6"
Family Room:
295 sq/ft width 20' x depth 14' 9"
Garage:
367 sq/ft width 18' 8" x depth 19' 8"
Kitchen:
138 sq/ft width 13' 8" x depth 10' 2"
Living Room:
130 sq/ft width 13' 1" x depth 10'
Master Bedroom:
221 sq/ft width 14' x depth 15' 10"
Nook:
105 sq/ft width 10' 4" x depth 10' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
