PLAN 430-140

Home > Style > Craftsman

Key Specs

2004
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This well-appointed Craftsman style house plan offers many great features. Three well-sized bedrooms are offered within the popular split plan design. The large kitchen offers abundant counter space along with a sitting bar and convenient eating area and walk-in pantry close at hand. The master suite is luxurious and spacious, and features a custom shower, jet tub, dual vanities, and expansive closet space. A bonus room is also provided upstairs, and could be anything from an extra bedroom to a media space.

Floor Plans

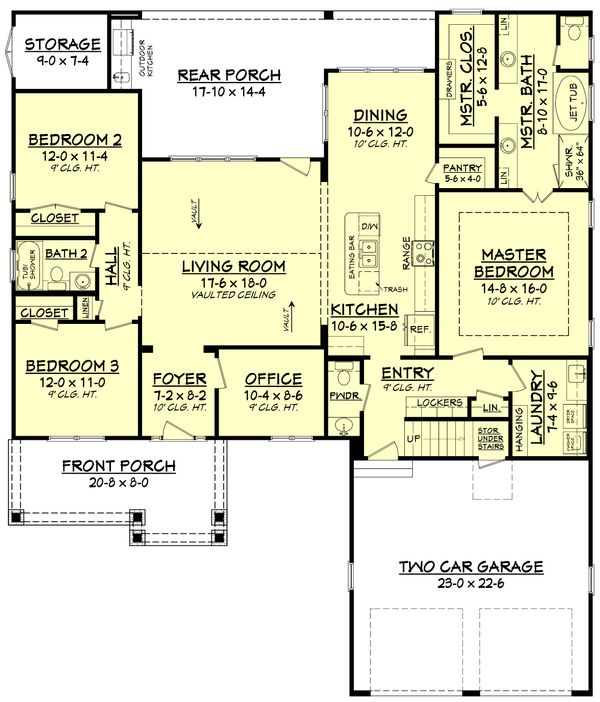

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

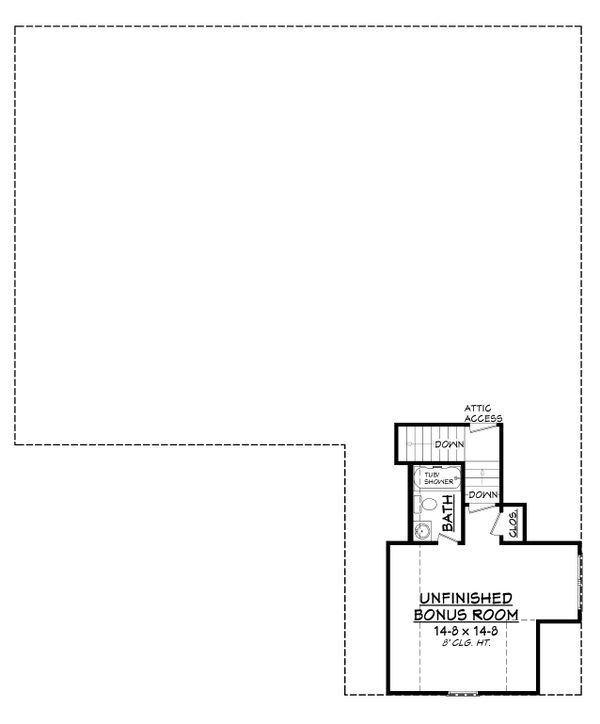

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 66' 10"

Height : 26'

Width : 56' 8"

Area

Bonus: 354 sq/ft height 8'

First Floor: 2004 sq/ft height 9'

Garage: 544 sq/ft

Porch: 523 sq/ft

Storage: 74 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 9:12

Roof Framing : Stick

Roof Load : 40

Roof Type : Shingles

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding & Brick

Framing : 2x4

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Front Entry Garage

Oversized Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Economical To Build

Empty Nester

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set gives you an unlimited build license.

Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Cabinet Elevations – Displays interior kitchen cabinet views.
