PLAN 23-2513
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Build up instead of out to take advantage of a lovely location. This plan does just that, with two stories of comfortable living. On the main level, a fireplace warms the spacious living room, with an eat-in kitchen nearby. The master bedroom is easy to reach and offers easy access to a full bathroom. Upstairs, two more spacious bedrooms share another full bath and a relaxed loft area. When the weather is nice, enjoy sitting on the full-width deck.
Floor Plans

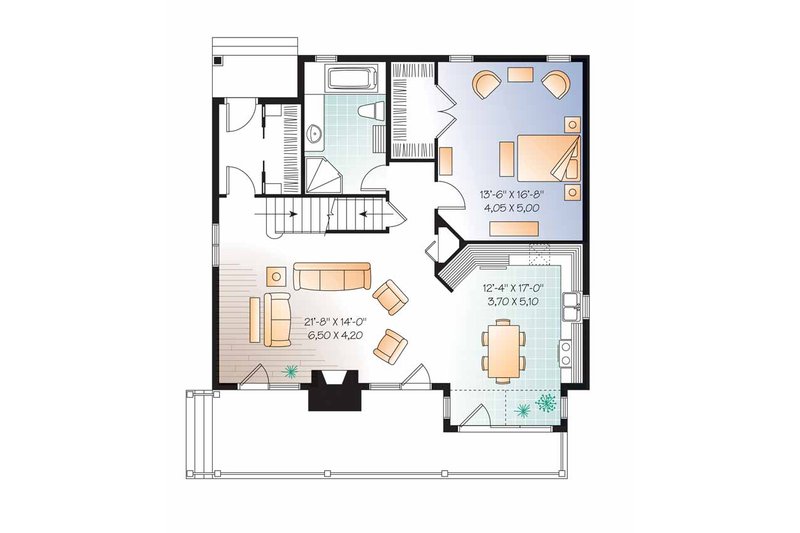

Floor Plan - Main Floor

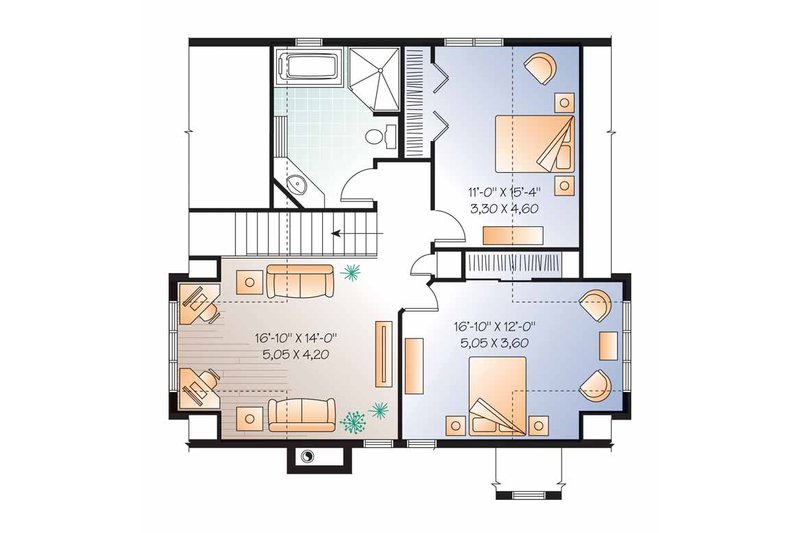

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 35' 4"
Height : 35' 2"
Width : 35' 4"
Area
First Floor: 1122 sq/ft height 8'
Second Floor: 899 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 0:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Rooms
Bedroom 2:
201 sq/ft width 16' 10" x depth 12'
Bedroom 3:
168 sq/ft width 11' x depth 15' 4"
Family Room:
235 sq/ft width 16' 10" x depth 14'
Great Room:
303 sq/ft width 21' 8" x depth 14'
Kitchen:
209 sq/ft width 12' 4" x depth 17'
Master Bedroom:
225 sq/ft width 13' 6" x depth 16' 8"
What's Included In This Plan Set
This plan set typically contains:

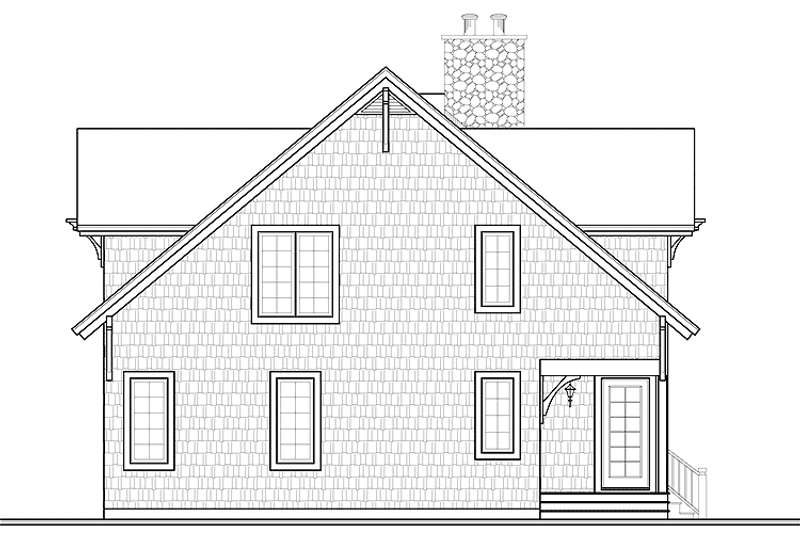

Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
