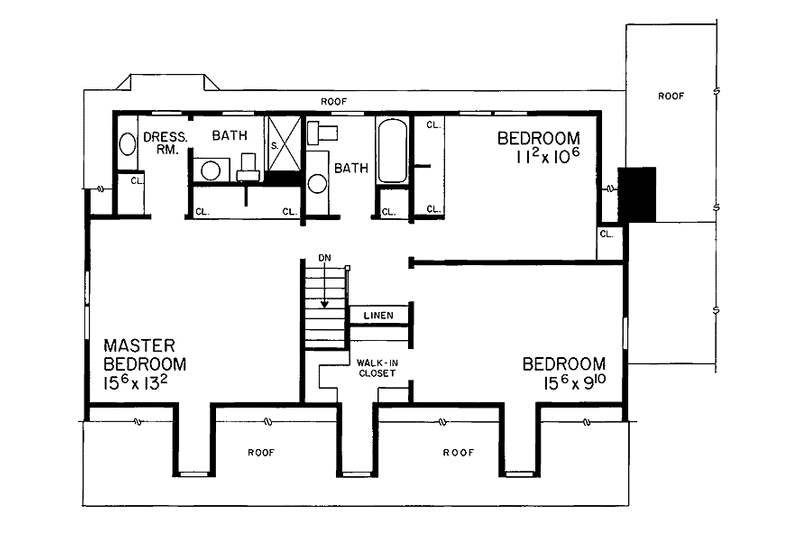

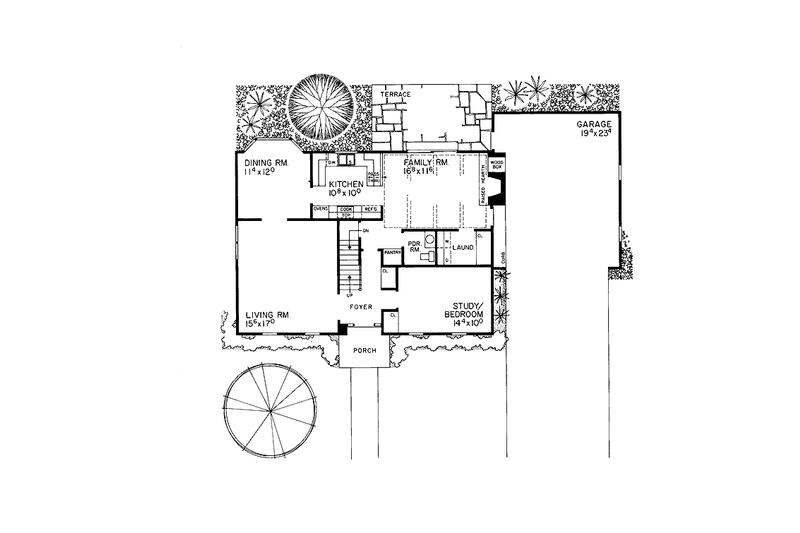

Cape Cods are among the most popular designs of all time. This moderately sized plan is symmetrically beautiful. The traditional central foyer leads to a formal living area on the left and a study (or additional bedroom) on the right. A bay-windowed dining room sits between the spacious kitchen and the living room. A family room with a beam ceiling and raised-hearth fireplace offers access to the rear terrace through sliding glass doors. Dormer windows grace two of the three bedrooms on the second floor. The family bedrooms share a full bath. The master bedroom contains a private bath with a dressing area.
3rd BR Closet:
14 sq/ft width 2' 1" x depth 7'
1200 sq/ft width 30' x depth 40'
53 sq/ft width 7' x depth 7' 8"
152 sq/ft width 9' 10" x depth 15' 6"
117 sq/ft width 10' 6" x depth 11' 2"
135 sq/ft width 11' 4" x depth 12'
77 sq/ft width 7' x depth 11'
451 sq/ft width 19' 4" x depth 23' 4"
6 sq/ft width 2' x depth 3'
6 sq/ft width 2' x depth 3' 2"
106 sq/ft width 10' x depth 10' 8"
40 sq/ft width 5' x depth 8' 2"
263 sq/ft width 15' 6" x depth 17'
37 sq/ft width 4' 8" x depth 8' 1"
204 sq/ft width 13' 2" x depth 15' 6"
16 sq/ft width 2' 1" x depth 8'
Porch - Front:
32 sq/ft width 4' x depth 8'
23 sq/ft width 4' 8" x depth 5'
143 sq/ft width 10' x depth 14' 4"
40 sq/ft width 5' 4" x depth 7' 8"
