PLAN 943-25
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

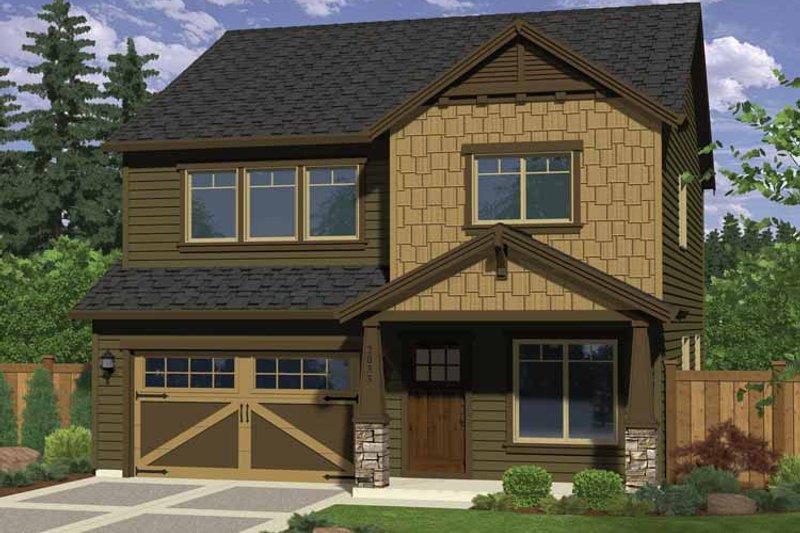

Compact enough to fit even the most challenging lot, this home offers many features that you would expect from a larger and more expensive house. The main level includes two main living areas: the open kitchen (boasting a walk-in pantry), breakfast nook, and family room to the back; and the dining and living spaces in the front. Upstairs the large master suite includes a walk-in closet, relaxing garden tub, and plenty of sunny windows. Two bedrooms, a bonus room, and the laundry room complete the floor.
Floor Plans

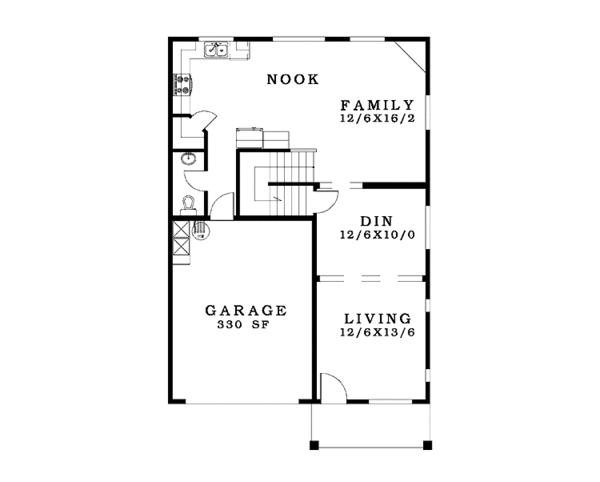

Floor Plan - Main Floor

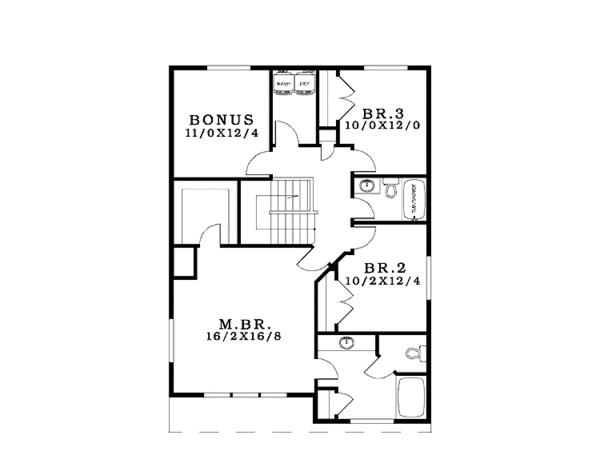

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 47'
Height : 28' 2"
Width : 30'
Area
Bonus: 147 sq/ft
First Floor: 913 sq/ft height 8'
Garage: 330 sq/ft height 8'
Porch: 67 sq/ft
Second Floor: 1120 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
125 sq/ft width 10' 2" x depth 12' 4"
Bedroom 3:
120 sq/ft width 10' x depth 12'
Bonus Room - Unfinished:
135 sq/ft width 11' x depth 12' 4"
Dining Room:
125 sq/ft width 12' 6" x depth 10'
Family Room:
202 sq/ft width 12' 6" x depth 16' 2"
Living Room:
168 sq/ft width 12' 6" x depth 13' 6"
Master Bedroom:
269 sq/ft width 16' 2" x depth 16' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set:
$805.00
$805.00
5 printed plan sets mailed to you.
8 Copy Set:
$875.00
$875.00
8 printed plan sets mailed to you.
PDF Set:
$982.00
$982.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1031.00
$1031.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1649.00
$1649.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$751.00
$751.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Stem Wall Foundation:
$0.00
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$175.00
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$60.00
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$55.00
$55.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
