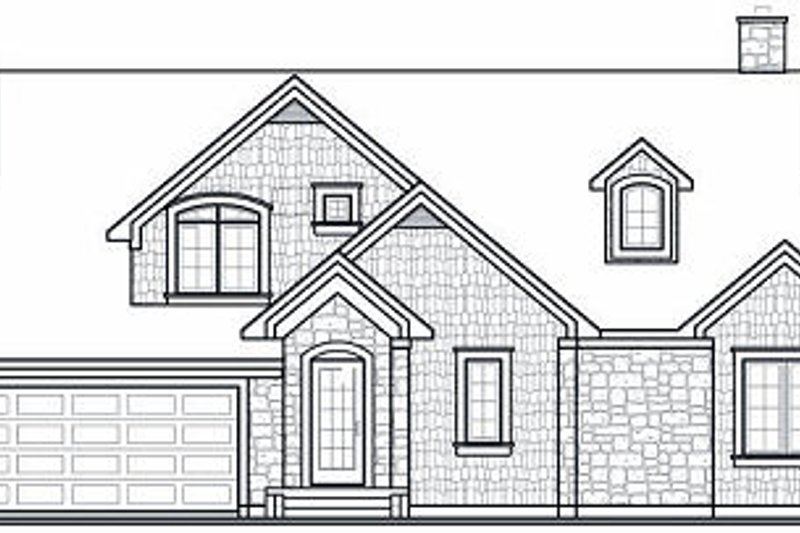

Home Plan - Traditional Exterior - Rear Elevation Plan #23-727

Home Plan - Traditional Floor Plan - Main Floor Plan #23-727

Home Plan - Traditional Floor Plan - Upper Floor Plan #23-727

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional

Key Specs

2037
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$65.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1655.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 23-727

Home > Style > Traditional

Key Specs

2037
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2037 sq ft and has 4 bedrooms and 2 bathrooms.

Floor Plans

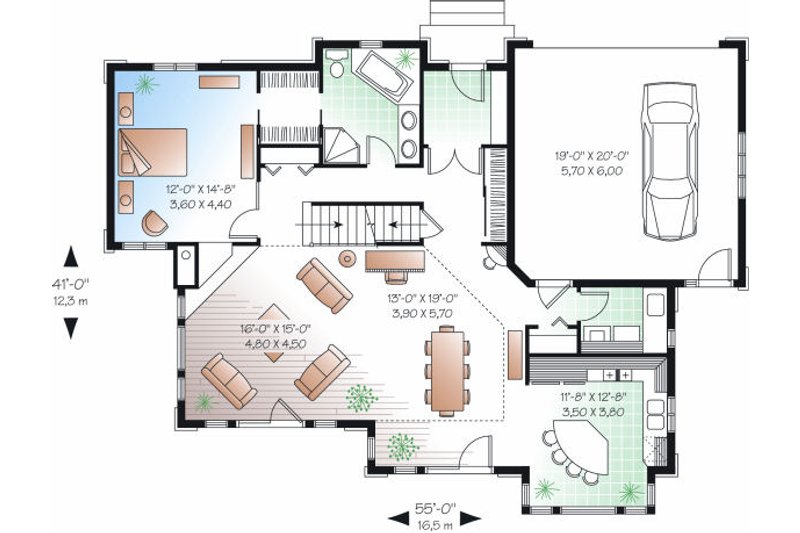

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

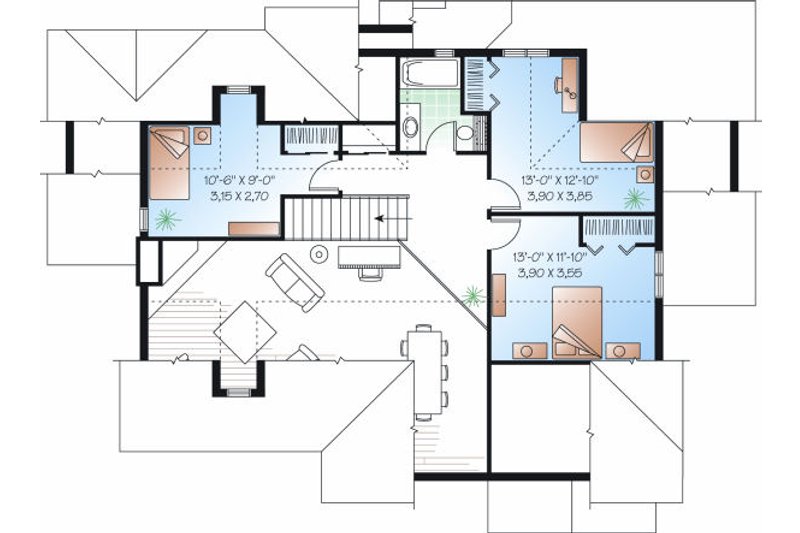

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 41'

Height : 24'

Width : 55'

Area

First Floor: 1347 sq/ft height 8'

Garage: 412 sq/ft

Second Floor: 690 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Loft

Storage Area

Unfinished Future Space

Outdoor Spaces

Balcony

Covered Front Porch

Suited For Vacation Home

Rooms

3rd BR Closet:

9 sq/ft width 2' x depth 4' 6"

Bathroom 2:

56 sq/ft width 7' 4" x depth 7' 8"

Bedroom 2:

156 sq/ft width 13' x depth 12'

Bedroom 2 Closet:

11 sq/ft width 5' 10" x depth 2'

Bedroom 3:

169 sq/ft width 13' x depth 13'

Bedroom 3 Closet:

11 sq/ft width 5' 10" x depth 2'

Bedroom 4:

94 sq/ft width 10' 6" x depth 9'

Bedroom 4 Closet:

8 sq/ft width 4' 5" x depth 2'

Coat Closet:

16 sq/ft width 2' x depth 8'

Deck:

313 sq/ft width 30' 4" x depth 10' 4"

Dining Room:

247 sq/ft width 13' x depth 19'

Foyer:

43 sq/ft width 7' x depth 6' 2"

Garage:

380 sq/ft width 19' x depth 20'

Kitchen:

152 sq/ft width 12' x depth 12' 8"

Laundry Room:

41 sq/ft width 7' 4" x depth 5' 8"

Linen Closet:

8 sq/ft width 4' 5" x depth 2'

Living Room:

24 sq/ft width 17' 3" x depth 1' 5"

Master Bathroom:

83 sq/ft width 8' 4" x depth 10'

Master Bedroom:

176 sq/ft width 12' x depth 14' 8"

Walk-In Closet:

30 sq/ft width 6' 2" x depth 5'

What's Included In This Plan Set

See a sample plan set

*Important* This designer may need 5-7 business days to update the plan content when an order is placed. Please call to confirm your order details.

This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.
