PLAN 927-523
Key Specs
2044
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 927-523
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

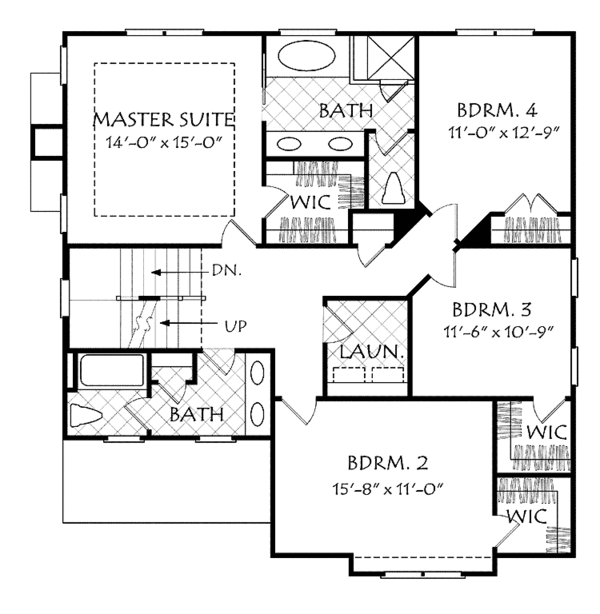

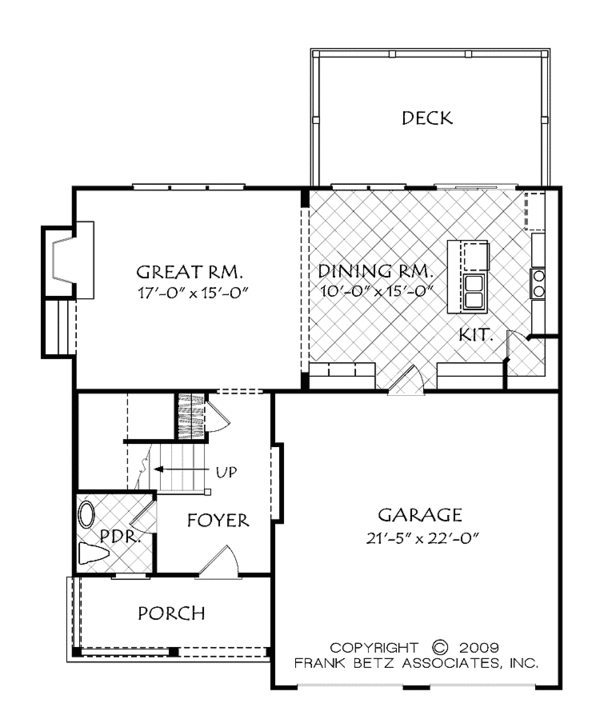

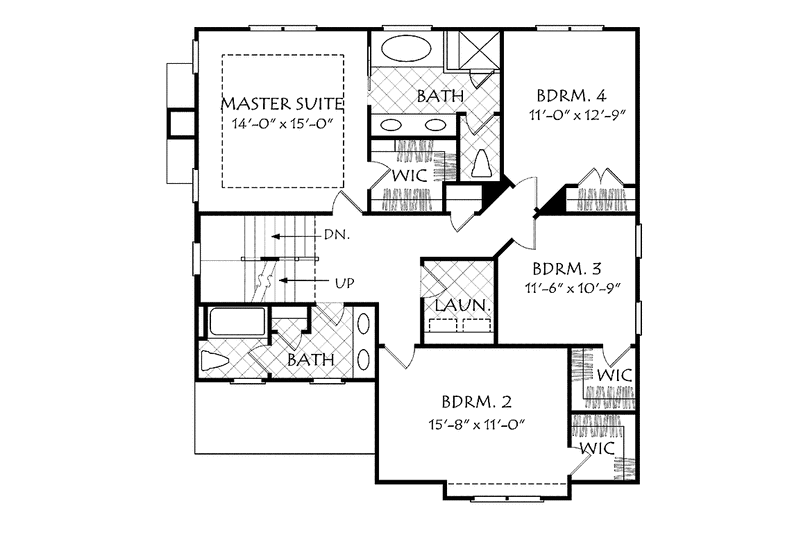

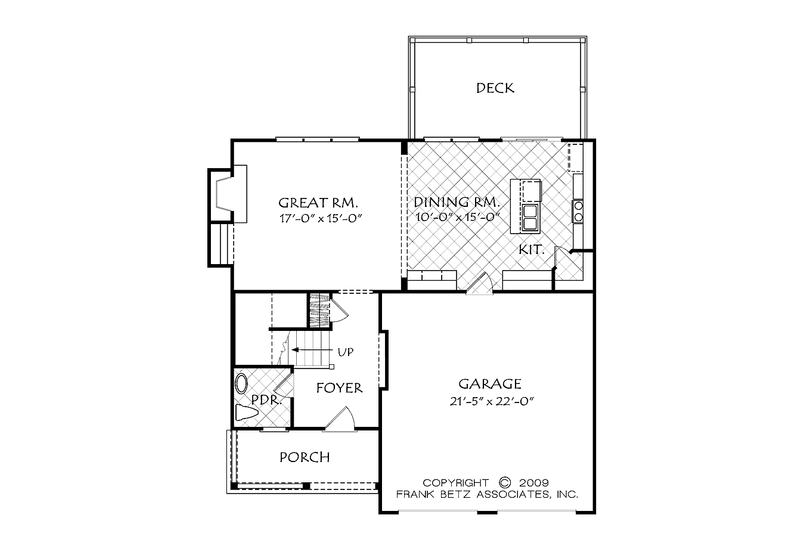

Despite its narrow footprint, this traditional home easily accommodates four bedrooms, a rear deck, and room to expand. The front-loading two-car garage conveniently accesses the kitchen for easy unloading of groceries. Upstairs placement of all the bedrooms allows for energy-efficient heating and cooling. The master suite includes a walk-in closet and close proximity to the centrally-located laundry room. An optional bonus room offers additional space and could serve as a bedroom or study.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 38'
Height : 32' 6"
Width : 39' 4"
Height : 32' 6"
Width : 39' 4"
Area
Bonus: 575 sq/ft
First Floor: 818 sq/ft
Garage: 484 sq/ft
Second Floor: 1226 sq/ft
First Floor: 818 sq/ft
Garage: 484 sq/ft
Second Floor: 1226 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Upstairs Master Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Great Room Living Room
Upstairs Laundry
Upstairs Laundry
Outdoor Spaces
Covered Front Porch
Deck
Deck
Rooms
Bedroom 2:
172 sq/ft width 15' 8" x depth 11'
Bedroom 3:
123 sq/ft width 11' 6" x depth 10' 9"
Bedroom 4:
140 sq/ft width 11' x depth 12' 9"

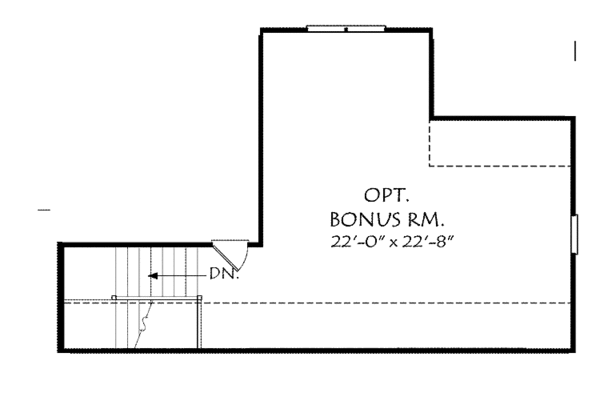

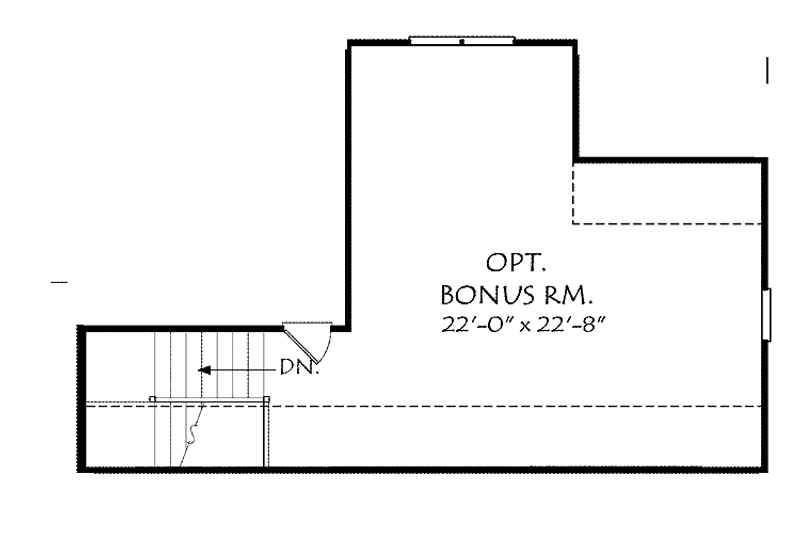

Bonus Room - Unfinished:
498 sq/ft width 22' x depth 22' 8"
Dining Room:
150 sq/ft width 10' x depth 15'
Garage:
471 sq/ft width 21' 5" x depth 22'
Great Room:
255 sq/ft width 17' x depth 15'
Master Suite:
210 sq/ft width 14' x depth 15'
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1595.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set : $1875.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Unlimited Build : $1895.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Five Copy and PDF Set Unlimited Build : $2175.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Unlimited Build : $3195.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $250.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
