Full Specs & Features
Depth : 42' 8"
Height : 28'
Width : 83' 2"
First Floor: 2048 sq/ft
Main Ceiling : 9'
Primary Pitch : 8:12
Roof Framing : Stick Framing
Roof Load : 40 psf
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Side Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
163 sq/ft width 13' 5" x depth 12' 2"
94 sq/ft width 11' 2" x depth 8' 6"
637 sq/ft width 22' 6" x depth 28' 4"
360 sq/ft width 18' x depth 20'
311 sq/ft width 20' 5" x depth 15' 3"
264 sq/ft width 16' x depth 16' 6"
173 sq/ft width 13' 11" x depth 12' 6"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence

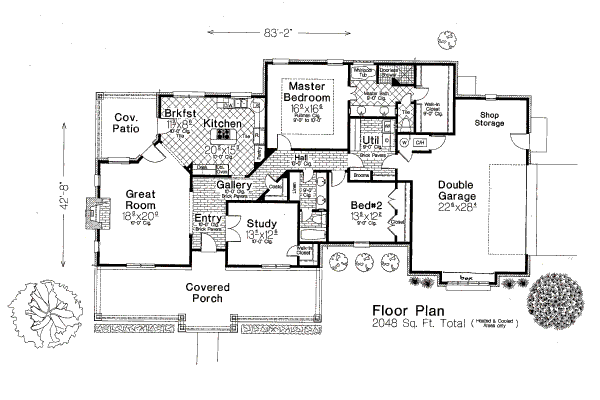

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
