Plan Description
This impressive home would be perfect anywhere that giant floor-to-ceiling
windows are the only way to fully appreciate the views outdoors. The great room
has vaulted ceilings, a fireplace, and a built-in media center. The kitchen
also benefits from the views, with a four-stool snack bar. The dining room juts
out from the house to provide architectural interest as well as to take
advantage of the various views. Entertaining can also be done on the front
deck, which spans the width of the house. The master suite has French doors
that lead to a private deck. A walk-in closet, compartemented bathroom with
double vanities, a glass shower, and a whirlpool tub are the additional
luxuries to be enjoyed in the master suite. Upstairs are two bedrooms which
share a compartmented bath and a loft, which can be used for casual gatherings.
Please specify basement, crawlspace or slab foundation when ordering.
Floor Plans

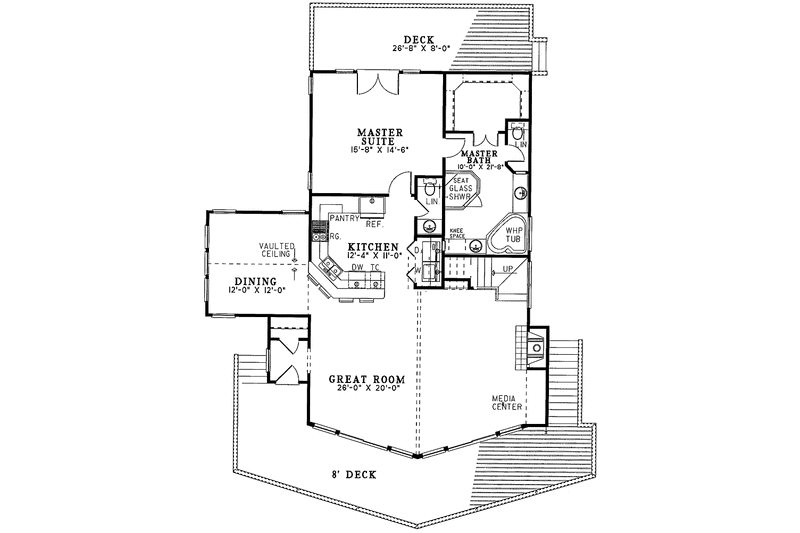

Floor Plan - Main Floor

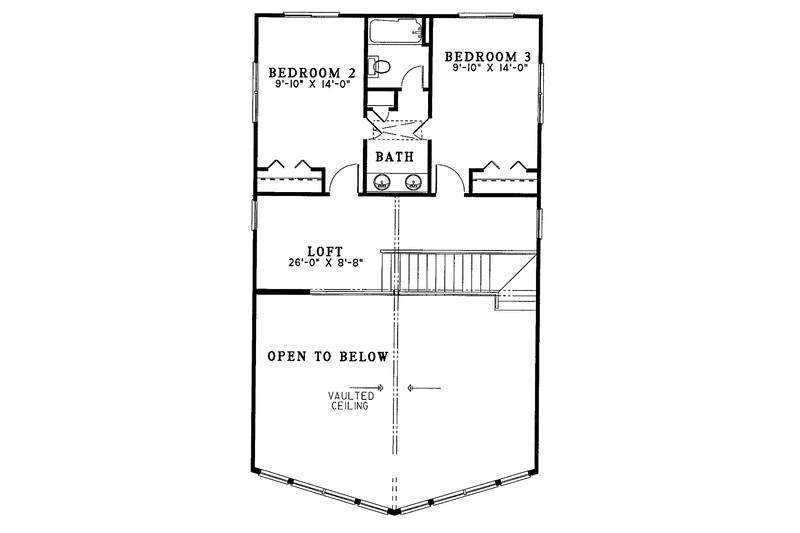

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 63'
Width : 47'
Area
First Floor: 1413 sq/ft height 8'
Second Floor: 641 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Great Room Living Room
Media Room
Outdoor Spaces
Wrap Around Porch
Rooms
Bedroom 2:
137 sq/ft width 14' x depth 9' 10"
Bedroom 3:
137 sq/ft width 14' x depth 9' 10"
Deck:
213 sq/ft width 8' x depth 26' 8"
Dining Room:
144 sq/ft width 12' x depth 12'
Gathering Room:
520 sq/ft width 20' x depth 26'
Kitchen:
135 sq/ft width 11' x depth 12' 4"
Master Bathroom:
216 sq/ft width 21' 8" x depth 10'
Master Bedroom:
227 sq/ft width 14' 6" x depth 15' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
