Full Specs & Features
Depth : 63' 8"
Height : 20'
Width : 81' 3"
Basement Unfinished: 2065 sq/ft
First Floor: 2065 sq/ft height 9'
Garage: 431 sq/ft height 9'
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x4
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Side Entry Garage
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath
width 15' 4" x depth 11'
width 13' x depth 11'
width 15' 4" x depth 12'
431 sq/ft width 21' x depth 20'
width 16' x depth 22' 8"
width 16' x depth 12'
width 12' x depth 20' 4"
Porch - Rear:
160 sq/ft width 16' x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

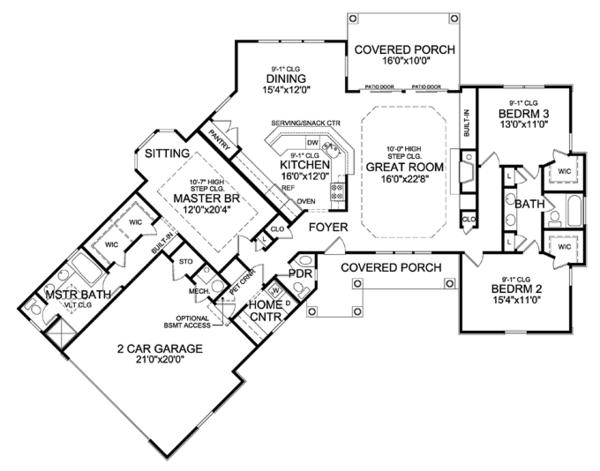

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
