PLAN 137-163
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This colonial design floor plan is 2076 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

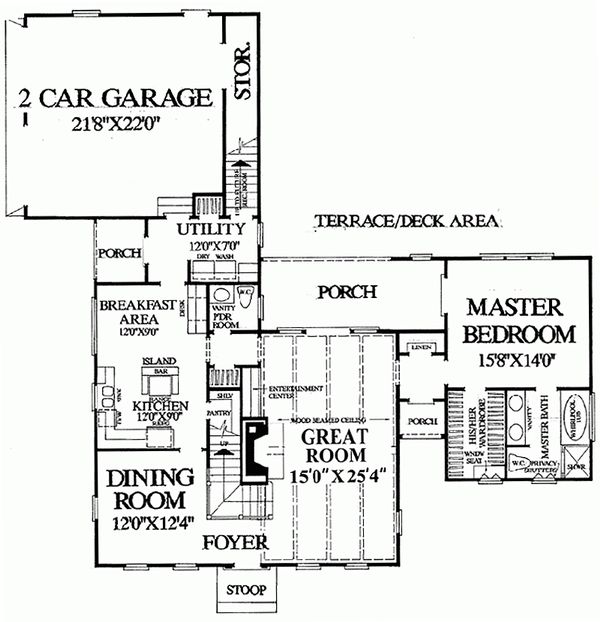

Floor Plan - Main Floor

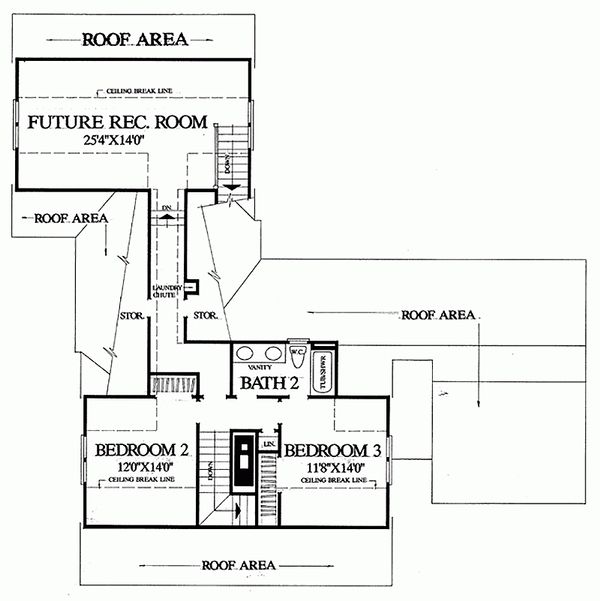

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 61'
Height : 24'
Width : 62' 8"
Area
Bonus: 502 sq/ft
First Floor: 1540 sq/ft height 9'
Second Floor: 536 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
Rooms
Bedroom 2:
168 sq/ft width 12' x depth 14'
Bedroom 3:
163 sq/ft width 11' 8" x depth 14'
Breakfast Room:
108 sq/ft width 12' x depth 9'
Dining Room:
147 sq/ft width 12' x depth 12' 4"
Game Room:
354 sq/ft width 25' 4" x depth 14'
Garage:
476 sq/ft width 21' 8" x depth 22'
Kitchen:
108 sq/ft width 12' x depth 9'
Living Room:
379 sq/ft width 15' x depth 25' 4"
Master Bedroom:
219 sq/ft width 15' 8" x depth 14'
Utility Room:
84 sq/ft width 12' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Rendering(s): Designer’s rendering of front elevation
