PLAN 120-162

Photographs may show modified designs.

Home Plan - Craftsman house plan - Mountain Lodge Style by David Wiggins 2000 sft

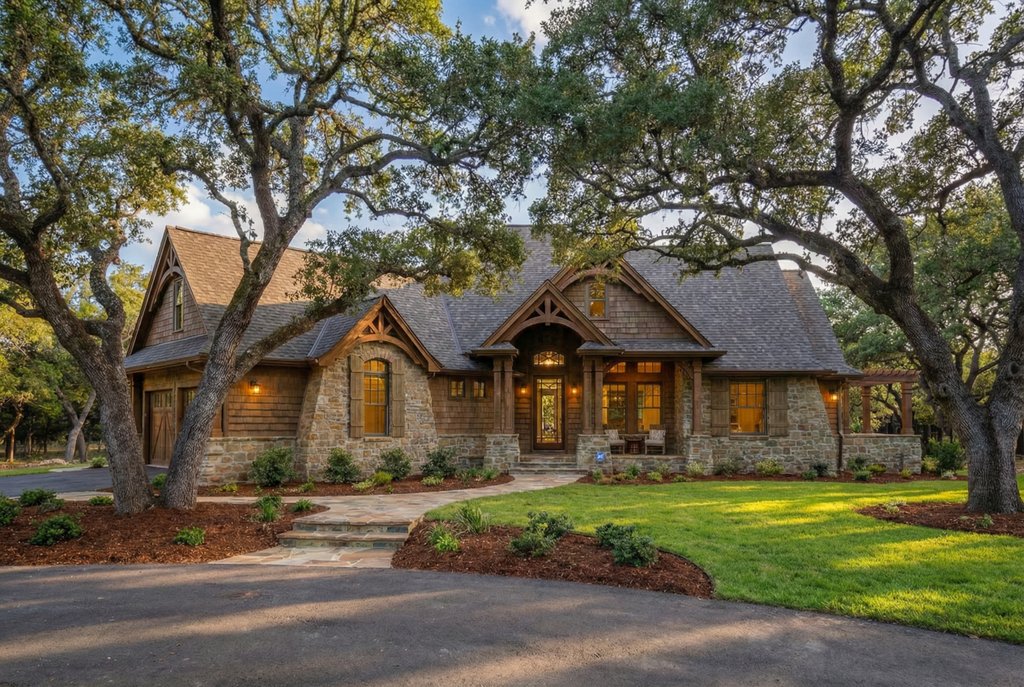

Home Plan - Craftsman Exterior - Front Elevation Plan #120-162

Home Plan - Craftsman Exterior - Rear Elevation Plan #120-162

Home Plan - Craftsman Exterior - Other Elevation Plan #120-162

Home Plan - Craftsman Interior - Kitchen Plan #120-162

Home Plan - Craftsman Interior - Family Room Plan #120-162

Home Plan - Craftsman Interior - Dining Room Plan #120-162

Home Plan - Craftsman Exterior - Covered Porch Plan #120-162

Home Plan - Craftsman Exterior - Outdoor Living Plan #120-162

Home / Style / Craftsman

Key Specs

2091
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$450.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License

$395.00

Allows you to build this home as many times as you want.

3 Car Garage

$195.00

Adds an additional garage bay

Subtotal

$1095.00

Also order by phone: 1-888-447-1946

Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 120-162

Home / Style / Craftsman

Key Specs

2091
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This floor plan offers the warmth and comfort of a home you'll want to spend a lot of time in, as well as a unique design for great entertaining and outdoor living. The plan features a wealth of amenities on the inside - from a gourmet kitchen and formal dining room to a two-sided fireplace linking you to the outdoor areas. The plan is available with all foundation options as well as 2x4 or 2x6 exterior walls. When ordering with the Daylight Basement foundation, the total heated square footage is 4182. Please specify basement stair option 1 or stair option 2 when ordering a Daylight or regular basement foundation Plan 120-162 has Additional Options available for all plan types: 3 Car Garage version (+$150.00) 2x6 Exterior Walls (+$150.00) Material List for Crawlspace Foundation (+$150.00) To order any additional options, please call us at 1-800-913-2350 This plan is also featured in our Editor's Blog, EYE ON DESIGN. Fire Pits and Outdoor Fireplaces

Floor Plans

Floor Plan - Main Floor

Reverse

Home Plan - Mountain Lodge craftsman floor plan by David Wiggins 2000 sft

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Home Plan - Craftsman style house plan, bonus level floor plan

Floor Plan - Lower Floor

Reverse

Floor Plan - Other Floor

Reverse

Home Plan - Optional Lower Level Stair Placement 1

Floor Plan - Other Floor

Reverse

Home Plan - Optional Lower Level Stair Placement 2

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 71' 5"

Height : 30'

Width : 78' 9"

Area

Basement Unfinished: 1524 sq/ft

Basement Unfinished: 2091 sq/ft

Bonus: 349 sq/ft

First Floor: 2091 sq/ft

Garage: 549 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'

Ceiling Details : Stepped ceiling in Family, Dining and Master Suite starting at 12' and going up from there.

Garage Ceiling : 8'

Main Ceiling : 10'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Load : 30

Roof Type : Composition

Secondary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : Stone and Shingles

Framing : 2"x4"

Insulation : 15

Seismic Rating : na

Wind Rating : 20

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Master Sitting Area

Media Room

Play Flex Room

Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural 2nd Floor Framing

Structural Roof Framing

Energy Efficient Features

Energy Efficient Design

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

137 sq/ft width 11' 5" x depth 12'

Bedroom 3 Closet:

30 sq/ft width 5' x depth 6'

Bonus Room - Finished:

349 sq/ft width 22' x depth 12' 9"

Dining Room:

128 sq/ft width 10' 8" x depth 12'

Family Room:

319 sq/ft width 18' x depth 17' 9"

Foyer:

56 sq/ft width 7' x depth 8'

Garage:

549 sq/ft width 22' 5" x depth 22'

Grilling Porch:

256 sq/ft width 13' 6" x depth 16' 9"

Kitchen:

135 sq/ft width 12' x depth 11' 4"

Lanai:

175 sq/ft width 15' 9" x depth 11' 2"

Master Bathroom:

105 sq/ft width 13' 2" x depth 8'

Master Closet:

54 sq/ft width 6' x depth 9'

Master Closet Two:

36 sq/ft width 6' x depth 6'

Master Suite:

226 sq/ft width 13' 2" x depth 17' 2"

Media Room:

123 sq/ft width 10' 3" x depth 12'

Nook:

112 sq/ft width 10' 7" x depth 10' 8"

Pantry:

13 sq/ft width 3' 8" x depth 3' 8"

Porch - Front:

192 sq/ft width 19' 9" x depth 7' 8"

Study:

123 sq/ft width 10' 3" x depth 12'

Utility Room:

54 sq/ft width 8' 5" x depth 6' 6"

What's Included In This Plan Set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1095.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1095.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set:
$1245.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1345.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1895.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$395.00

Ideal for level lot, lower level of home partially or fully underground.

Walk Out Basement:
$395.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$245.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$450.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License:
$395.00

Allows you to build this home as many times as you want.

3 Car Garage:
$195.00

Adds an additional garage bay

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
