PLAN 929-105
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

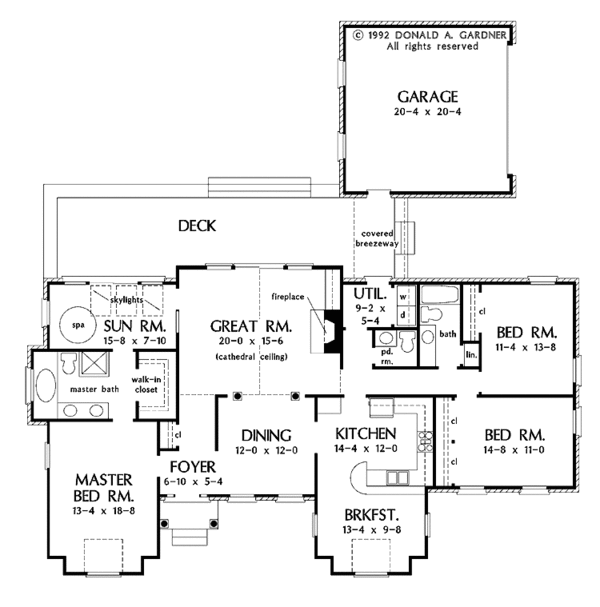

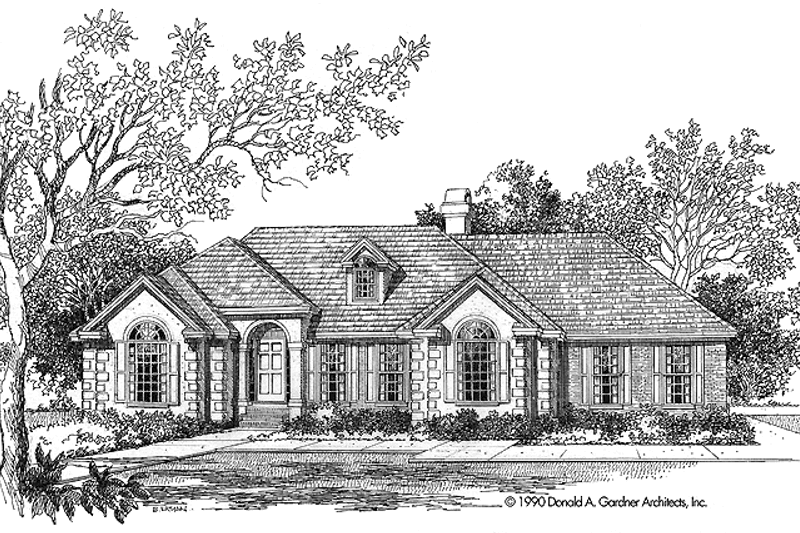

By putting the garage to the rear of this plan, nothing is taken away from the
beautiful stone and stucco facade. Access from the garage is enhanced by a
covered breezeway which passes the rear covered porch and connects to the home
at the utility room. A great room with cathedral ceiling and fireplace has
sliding glass doors to the rear deck and access to the skylit sunroom which
also opens to the deck. The master bath connects to the sunroom as well. It is
the perfect complement to the private master bedroom. Choose two styles of
dining: the formal dining room with columned entrance to the great room, or the
sunny breakfast room, attached to the U-shaped kitchen. Two additional bedrooms
are at the right side of the plan and share a full bath with linen storage.
Full Specs & Features
Dimension
Depth : 68' 7"
Height : 21'
Width : 68' 4"
Height : 21'
Width : 68' 4"
Area
First Floor: 2099 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Formal Dining Room
Split Bedrooms
Additional Room Features
Great Room Living Room
Sunroom
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Deck
Screened Porch
Rooms
3rd BR Closet:
14 sq/ft width 7' x depth 2'
Bathroom 2:
45 sq/ft width 10' 2" x depth 4' 6"
Bedroom 3:
154 sq/ft width 13' 8" x depth 11' 4"
Bedroom 4:
161 sq/ft width 11' x depth 14' 8"
Bedroom 4 Closet:
22 sq/ft width 11' x depth 2'
Breakfast Room:
128 sq/ft width 9' 8" x depth 13' 4"
Deck:
430 sq/ft width 10' x depth 43'
Dining Room:
144 sq/ft width 12' x depth 12'
Foyer:
36 sq/ft width 5' 4" x depth 6' 10"
Garage:
413 sq/ft width 20' 4" x depth 20' 4"
Gathering Room:
310 sq/ft width 15' 6" x depth 20'
Hall:
51 sq/ft width 3' 1" x depth 16' 10"
Kitchen:
171 sq/ft width 12' x depth 14' 4"
Master Bathroom:
106 sq/ft width 8' 4" x depth 12' 9"
Master Bedroom:
248 sq/ft width 18' 8" x depth 13' 4"
Master Closet:
38 sq/ft width 8' 3" x depth 4' 8"
Powder Room:
23 sq/ft width 4' 6" x depth 5' 2"
What's Included In This Plan Set
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

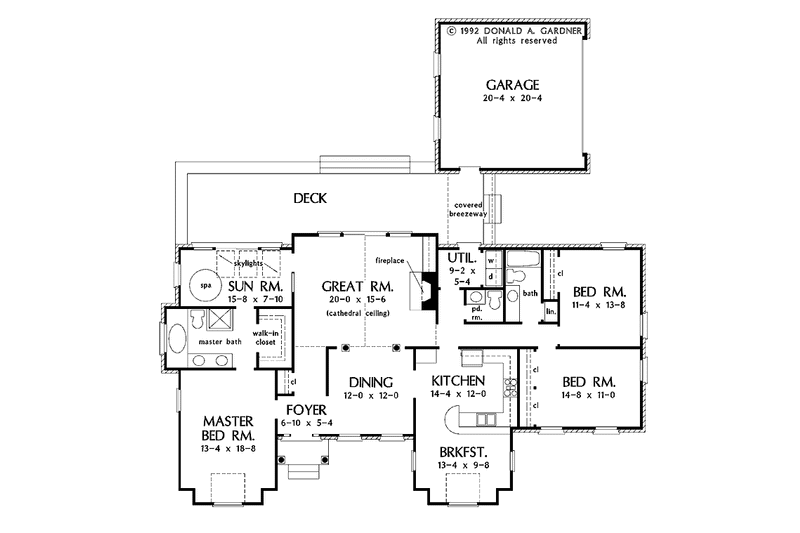

- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.

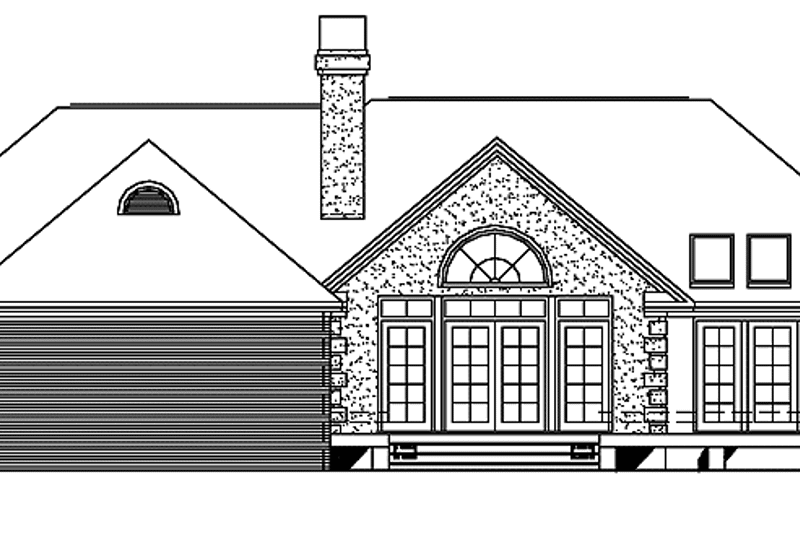

- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
