Full Specs & Features
Depth : 64' 8"
Height : 26' 5"
Width : 72' 4"
Garage : 1049 sq/ft

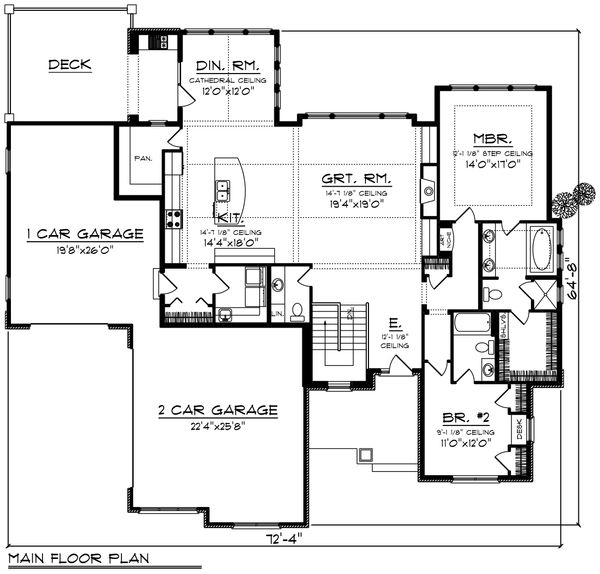

Main Floor : 2107 sq/ft
Ceiling Details : Entry 12'. Grt, Kit 15'. Din Cathedral. MBR 12' Step.
Lower Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Horizontal Siding. Stone.
Framing : 2x6
Insulation : R-20
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Side Entry Garage
Suited For Corner Lot
Covered Front Porch
Grill Deck Sundeck
Suited For Vacation Home
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
