Full Specs & Features
Depth : 60'
Height : 22' 2"
Width : 59'
First Floor: 2110 sq/ft height 9'
Garage: 717 sq/ft height 9'
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6

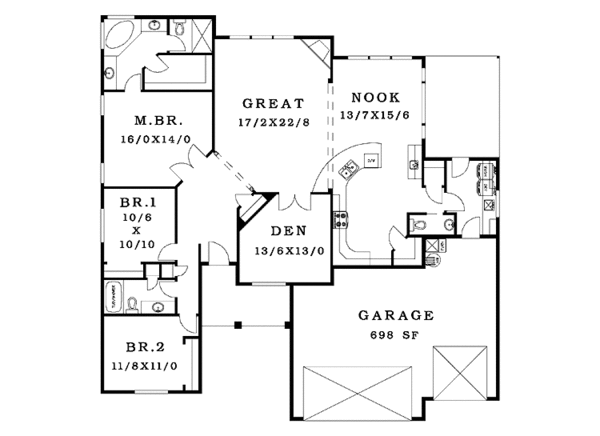

113 sq/ft width 10' 6" x depth 10' 10"
128 sq/ft width 11' 8" x depth 11'
175 sq/ft width 13' 6" x depth 13'
389 sq/ft width 17' 2" x depth 22' 8"
224 sq/ft width 16' x depth 14'
210 sq/ft width 13' 7" x depth 15' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
