Key Specs
2116
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 20-1589
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

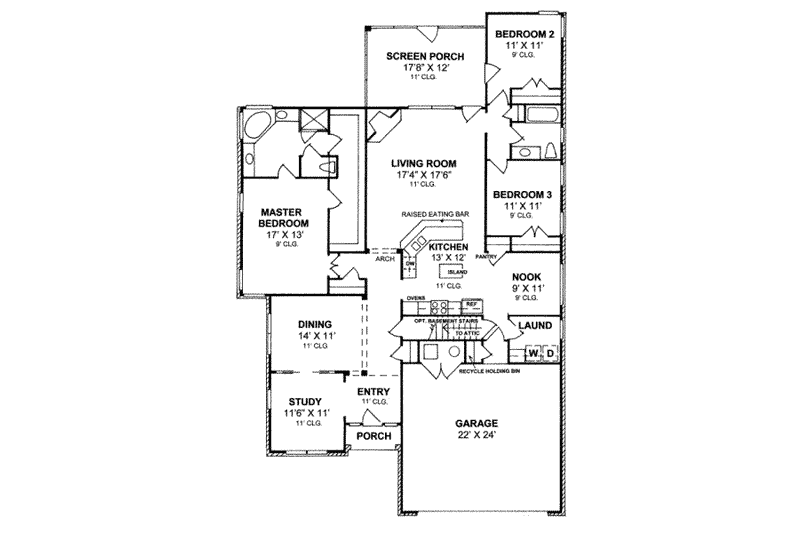

Floor Plans
Full Specs & Features
Dimension
Depth : 74'
Height : 28'
Width : 48'
Area
First Floor: 2116 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Rooms
Bedroom 2:
121 sq/ft width 11' x depth 11'
Bedroom 3:
121 sq/ft width 11' x depth 11'
Dining Room:
154 sq/ft width 14' x depth 11'
Garage:
528 sq/ft width 22' x depth 24'
Kitchen:
156 sq/ft width 13' x depth 12'
Living Room:
303 sq/ft width 17' 4" x depth 17' 6"
Master Bedroom:
221 sq/ft width 17' x depth 13'
Nook:
99 sq/ft width 9' x depth 11'
Porch - Screened:
212 sq/ft width 17' 8" x depth 12'
Study:
126 sq/ft width 11' 6" x depth 11'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1025.00
$1320.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
