PLAN 929-926
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Here's a striking home with a flexible layout. Do you have school-age kids? They'll enjoy the privacy of the bonus room upstairs. When they're out of the house, no big adjustments need happen, because the master suite is already on the first floor. The bedroom/study on this level could also become an office or craft room, complete with an adjacent full bath. Convenient details include the master bath's linen closet, the kitchen's snack counter, and extra storage space in the garage.
Full Specs & Features
Dimension
Depth : 50' 2"
Height : 31' 6"
Width : 65'
Height : 31' 6"
Width : 65'
Area
Bonus: 518 sq/ft height 9'

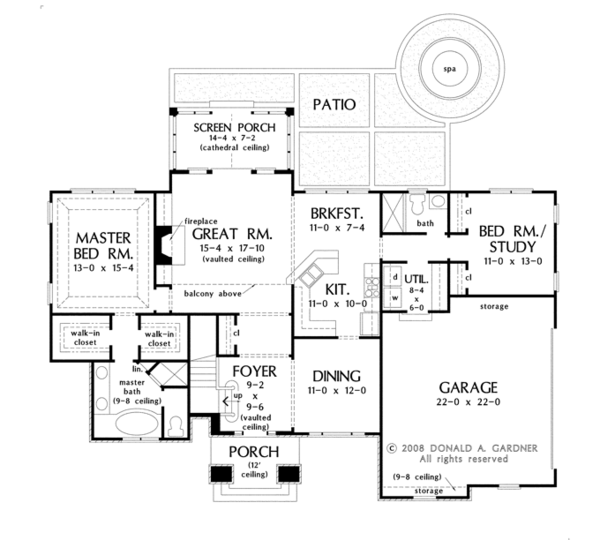

First Floor: 1655 sq/ft height 9'
Garage: 543 sq/ft height 9'
Patio: 509 sq/ft

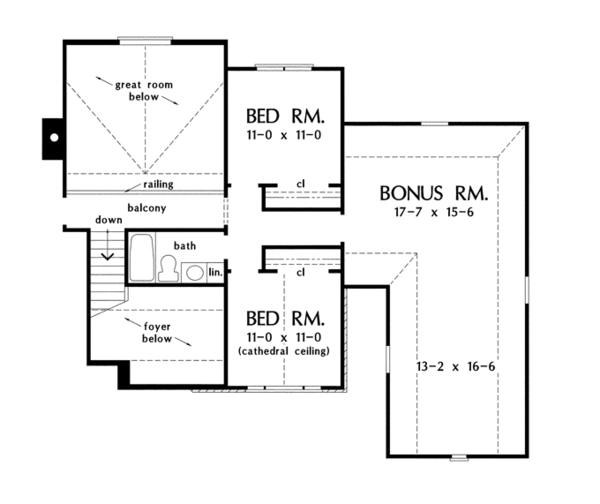

Second Floor: 480 sq/ft height 9'
First Floor: 1655 sq/ft height 9'
Garage: 543 sq/ft height 9'
Patio: 509 sq/ft
Second Floor: 480 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 14:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Cabana
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Unfinished Future Space
Vaulted / Cathedral Ceilings
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Screened Porch
Courtyard
Covered Front Porch
Screened Porch
Rooms
Bedroom 2:
width 11' x depth 13'
Bedroom 3:
11 sq/ft width 11" x depth 0"
Bedroom 4:
width 11' x depth 11'
Bonus:
518 sq/ft width 17' 7" x depth 15' 6"
Breakfast Nook:
width 11' x depth 7' 4"
Dining:
width 11' x depth 12'
Foyer:
width 9' 2" x depth 9' 6"
Garage:
543 sq/ft width 22' x depth 22'
Great Room:
width 15' 4" x depth 17' 10"
Kitchen:
width 11' x depth 10'
Master Bedroom:
width 13' x depth 15' 4"
Porch Front:
74 sq/ft
Porch Screened:
128 sq/ft width 14' 4" x depth 7' 2"
Utility Room:
width 8' 4" x depth 6'
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set
: $1195.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1195.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy Set
: $1295.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1345.00 |
8 printed plan sets mailed to you. |
| CAD Set
: $2390.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set
: $995.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Basement: $315.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse
: $190.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $100.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
