PLAN 569-7

Key Specs

2150
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

The transparent quality of the spaces created by a stunning curved wall, a serene Asian-themed courtyard area, a gret room done in subtle indoor outdoor flow of space, a kitchen planned for a gourmet chef and media/man cave room with a view, into an auto gallery best describes this home.

Floor Plans

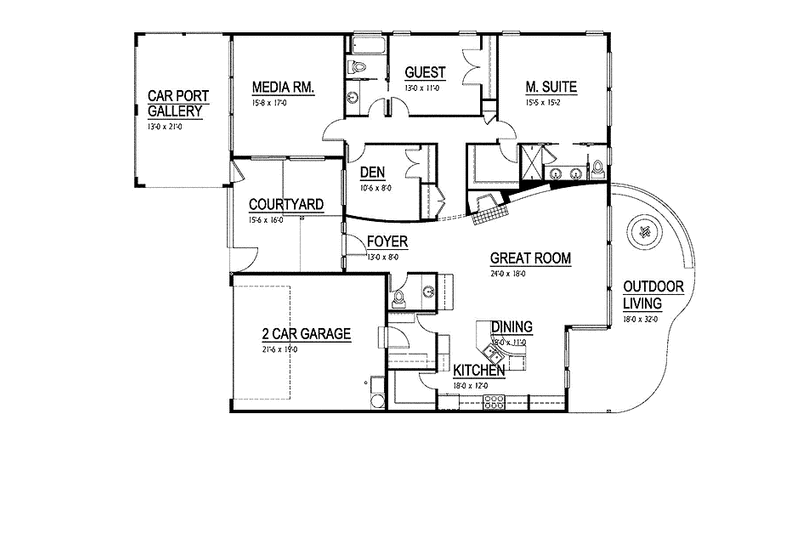

Floor Plan - Main Floor Plan

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 6"
Height : 17' 3"
Width : 54'

Area

First Floor: 2150 sq/ft height 9'
Garage: 735 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Guest Suite

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Media Room
Open Floor Plan

Outdoor Spaces

Courtyard
Covered Rear Porch

Rooms

Carport:

273 sq/ft width 13' x depth 21'

Courtyard:

248 sq/ft width 15' 6" x depth 16'

Den:

84 sq/ft width 10' 6" x depth 8'

Dining Room:

198 sq/ft width 18' x depth 11'

Foyer:

104 sq/ft width 13' x depth 8'

Garage:

408 sq/ft width 21' 6" x depth 19'

Great Room:

432 sq/ft width 24' x depth 18'

Guest Bedroom:

143 sq/ft width 13' x depth 11'

Kitchen:

216 sq/ft width 18' x depth 12'

Master Suite:

233 sq/ft width 15' 5" x depth 15' 2"

Media Room:

266 sq/ft width 15' 8" x depth 17'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
