PLAN 70-1119

Home > Style > Ranch

Key Specs

2181
sq ft

4
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Low sloping rooflines define the prairie style design of this 2181 square foot ranch where plenty of living space is packed in for maximum selling features. As you enter, the great room directly ahead leads you to the main living area where the kitchen features a breakfast bar that draws the space together. The bedroom area lies to the left of the home and includes a master suite with walk-in closet, tray ceilings and a Jacuzzi tub while three additional bedrooms share the main bath off the hall. A three-stall garage provides access to the laundry area where built-in lockers keeps the kids stuff under control.

Floor Plans

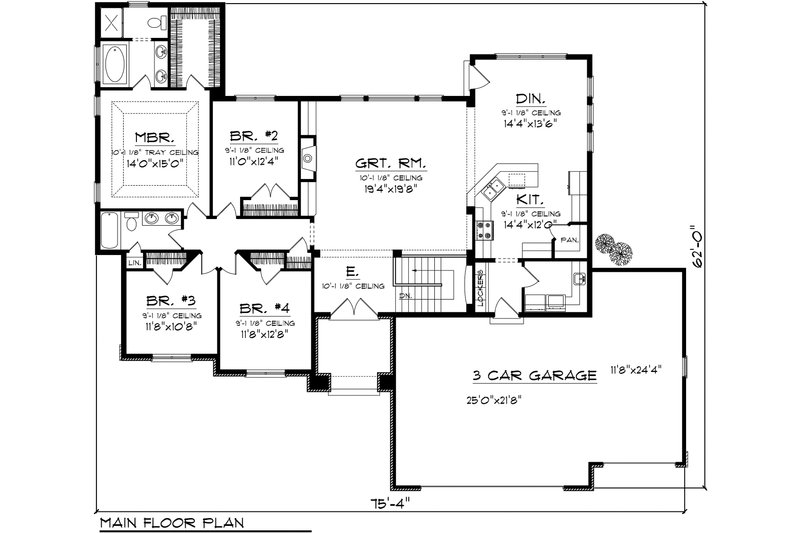

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 62'

Height : 19' 1"

Width : 75' 4"

Area

First Floor: 2181 sq/ft

Garage: 857 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 9'. Grt Rm/Entry 10', Master Bdrm 10' Tray

Lower Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco, Stone, Siding

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Unfinished Future Space

Garage Features

Front Entry Garage

Rooms

Bedroom 2:

width 11' x depth 12' 4"

Bedroom 3:

width 11' 8" x depth 10' 8"

Bedroom 4:

width 11' 8" x depth 12' 8"

Dining:

width 14' 4" x depth 13' 6"

Garage 1:

573 sq/ft width 25' x depth 21' 8"

Garage 2:

284 sq/ft width 11' 8" x depth 24' 4"

Great Room:

width 19' 4" x depth 19' 8"

Kitchen:

width 14' 4" x depth 12'

Master Bedroom:

width 14' x depth 15'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$1089.00

5 printed plan sets mailed to you.

8 Copy Set:
$1140.00

8 printed plan sets mailed to you.

PDF Set:
$1370.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1370.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2174.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$395.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
