PLAN 1071-1

Key Specs

2182
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

It’s all about the impressive practical spaces in this graceful one-story home. Take a look at the kitchen’s sizeable pantry: not only is it quite large, but windows let in natural light for easier perusal of groceries when planning meals. The master suite also will invite oohs and aahs at the ample size of the walk-in closet. In the middle of the home, the island kitchen overlooks the great room and breakfast nook. A bonus room upstairs allows for storage or expansion.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

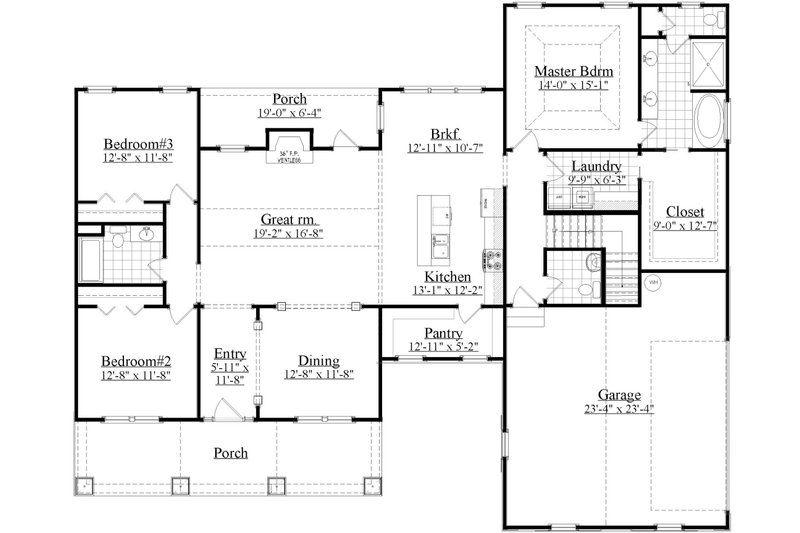

Craftsman Floor Plan - Main Floor Plan Plan #1071-1

Floor Plan - Other Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 56'
Height : 23' 9"
Width : 69' 9"

Area

Bonus : 327 sq/ft
Garage : 602 sq/ft
Main Floor : 2182 sq/ft
Porch : 109 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted Great Room & tray ceiling in the Master Bedroom
Main Ceiling : 9'

Roof

Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding
Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set

See a sample plan set

Cover sheet with rendering ( black and white )
Elevations: All exterior elevations of the front, left, rear, and right sides of the house. The elevations are noted with the materials and dimensioned for ceiling heights and window heights as well as other heights.
Foundation Plan: Foundation plans include drawings for a concrete slab, or crawlspace. Only one type is included with each plan and basement plans can be added for an additional fee. Bearing walls and all the necessary dimensioning are included on plans. Please note that these drawings are designed to meet IRC building codes but may not be sufficient for your local area. Foundation plans may need to be engineered locally.
Floor Plans: Dimensioned floor plans. Each floor of the house is shown in detail. The position and dimensions of walls, doors, windows, staircases, and columns are clearly indicated. Door and window sizes are also included.
Electrical Plan: A Suggested Electrical layout is included for the placement of light switches, power outlets, and lighting fixtures. National Electrical code and your builder / electrician should determine final placement.
Roof Plan: Showing roof pitches and overhang dimensions as well as ventilation notes.
Sections: Stair / Building cross sections. Also included are a few typical construction details
