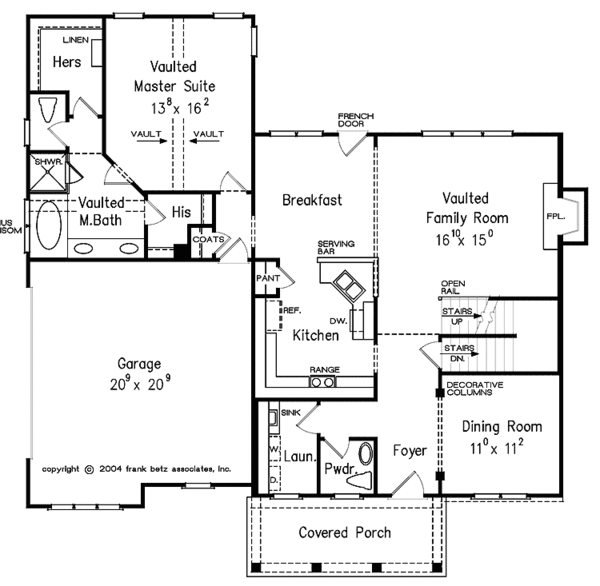

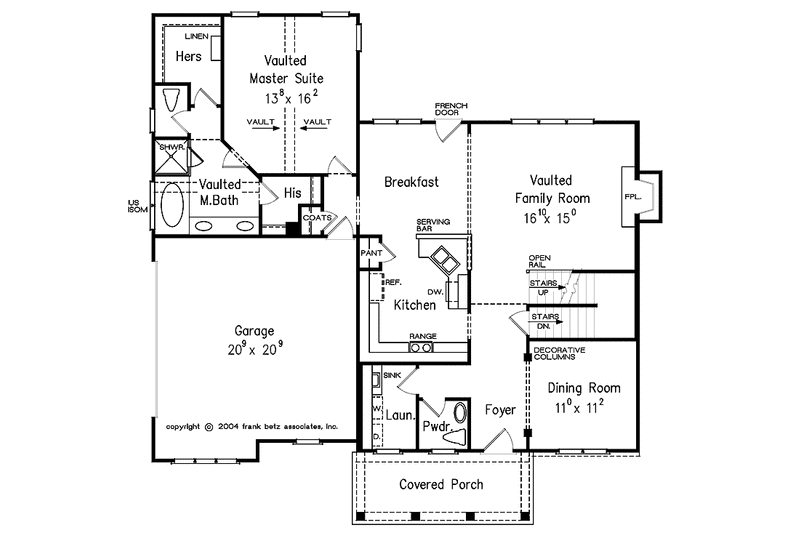

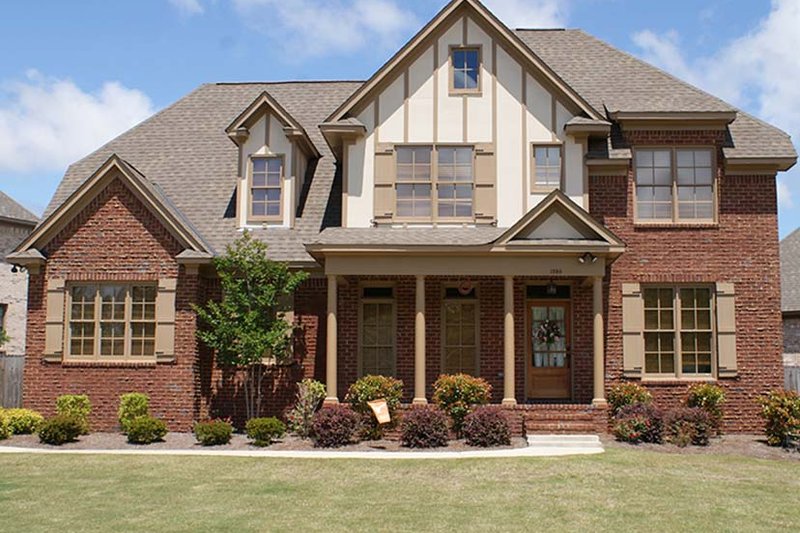

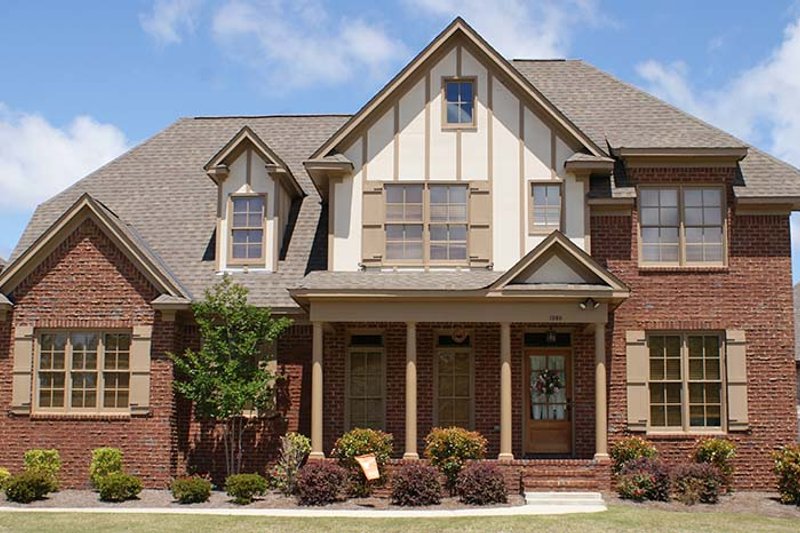

A covered porch makes for great socializing and curb appeal. An elongated foyer is flanked by a formal dining room, which opens to the right, lined with decorative columns. A split staircase follows, leading to the generous, vaulted family room. A sunny and casual breakfast room and kitchen lie to the left, with views of and access to the rear property afforded from the nook. The master suite, tucked in the rear left corner of the plan, is vaulted, and will pamper the female head of household with her enormous walk-in closet.

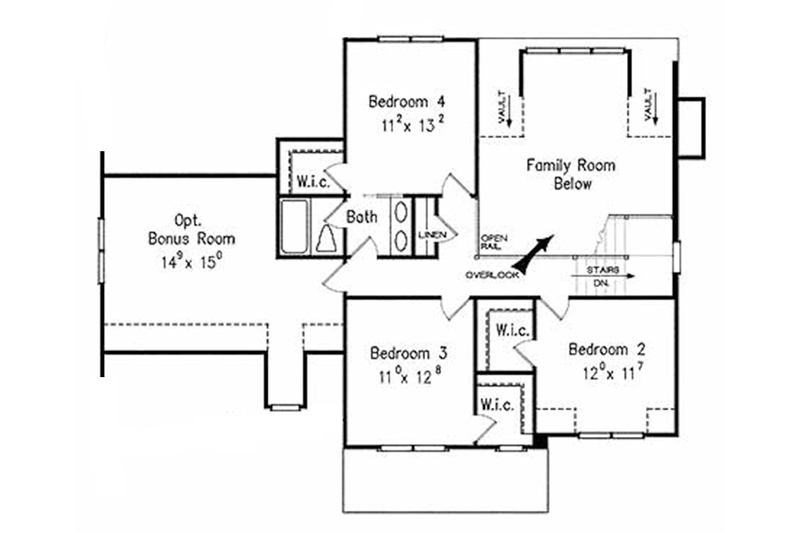

138 sq/ft width 12' x depth 11' 7"
139 sq/ft width 11' x depth 12' 8"
147 sq/ft width 11' 2" x depth 13' 2"

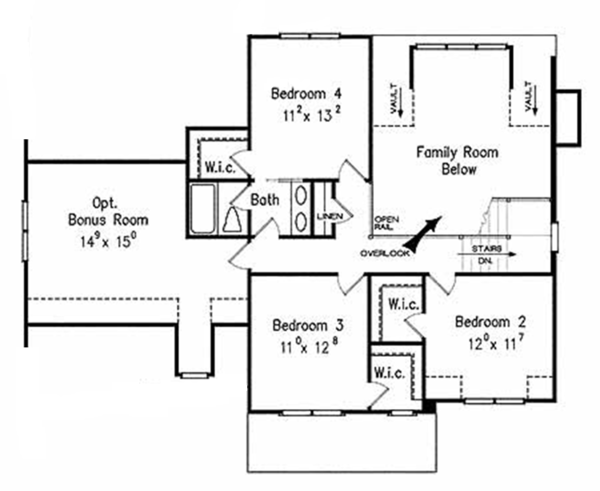

Bonus Room - Finished:
221 sq/ft width 14' 9" x depth 15'
127 sq/ft width 11' 2" x depth 11' 5"
122 sq/ft width 11' x depth 11' 2"
252 sq/ft width 16' 10" x depth 15'
84 sq/ft width 5' 9" x depth 14' 8"
430 sq/ft width 20' 9" x depth 20' 9"
142 sq/ft width 11' 2" x depth 12' 9"
36 sq/ft width 5' 6" x depth 6' 8"
105 sq/ft width 10' 9" x depth 9' 10"
220 sq/ft width 13' 8" x depth 16' 2"
46 sq/ft width 6' 10" x depth 6' 10"
Master Closet Two:
36 sq/ft width 6' x depth 6'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
