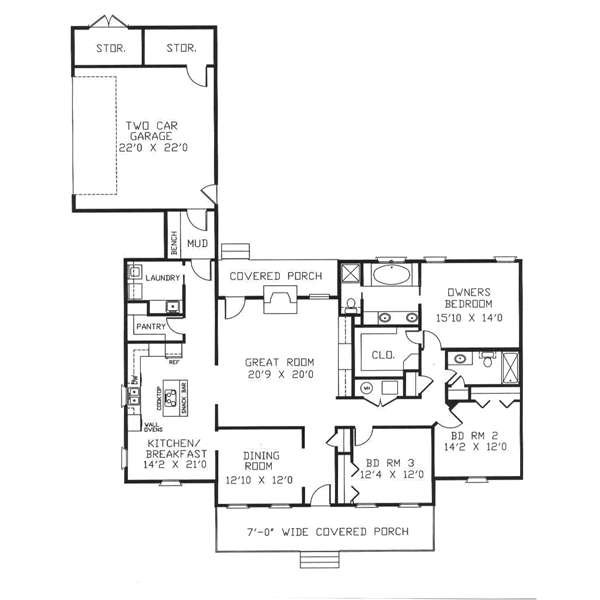

Great Room Features: French Door and Window flank a Gas Fireplace with French Door leading to a private Rear Covered Porch. Kitchen/Breakfast Features: Large Island with Snack Bar and Cook Top. Arched Opening between Kitchen and Great Room. Easy access to Large Walk In Pantry. Bedrooms 2 and 3 are nice sized. They share a Full Bath
170 sq/ft width 14' 2" x depth 12'
147 sq/ft width 12' 4" x depth 12'
153 sq/ft width 12' 10" x depth 12'
484 sq/ft width 22' x depth 22'
415 sq/ft width 20' 9" x depth 20'
297 sq/ft width 14' 2" x depth 21'
60 sq/ft width 9' 4" x depth 6' 6"
131 sq/ft width 12' 6" x depth 10' 6"
221 sq/ft width 15' 10" x depth 14'
Master Walk-In Closet:
82 sq/ft width 10' 3" x depth 8'
38 sq/ft width 9' 4" x depth 4' 2"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|5 Copy and PDF Set
|5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
