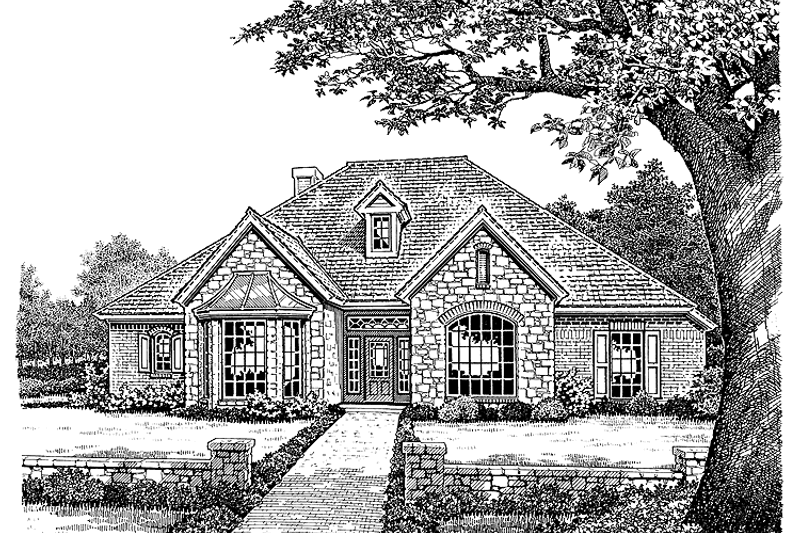

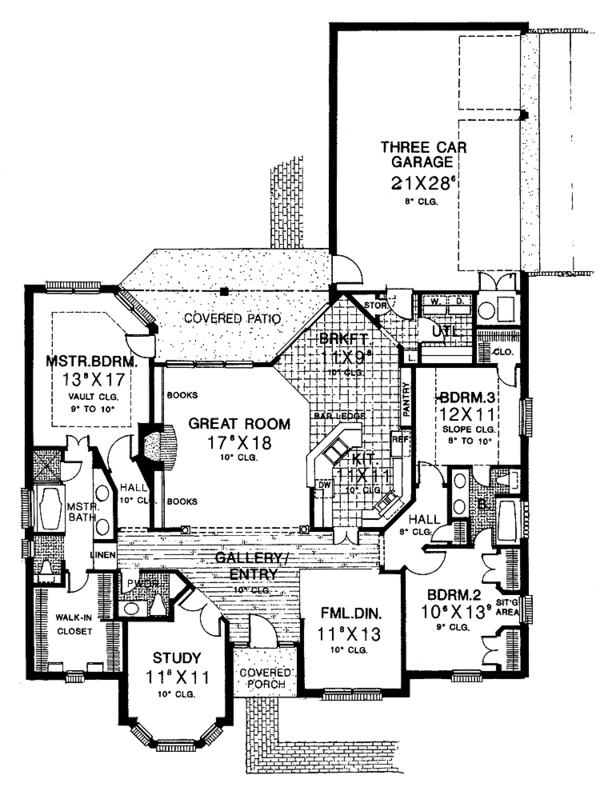

Hipped and gabled rooflines, combined with an arch-topped window and an elegant window bay with a flared top, herald a charming interior to this European-style beauty. A spacious gallery entry opens to the formal dining room to the right and the cozy great room straight ahead. Through French doors to the left enter the study set into the window bay. The great room boasts a fireplace flanked by rows of built-in bookshelves. Sliding doors lead to the rear covered patio. An angled counter ties the great room together with the kitchen and breakfast nook in a smoothly working unit. A master suite on the left side of plan is thoughtfully separated from the other two bedrooms located on the other side of the plan.
136 sq/ft width 10' 6" x depth 13'
132 sq/ft width 12' x depth 11'
106 sq/ft width 11' x depth 9' 8"
151 sq/ft width 11' 8" x depth 13'
598 sq/ft width 21' x depth 28' 6"
315 sq/ft width 17' 6" x depth 18'
121 sq/ft width 11' x depth 11'
232 sq/ft width 13' 8" x depth 17'
128 sq/ft width 11' 8" x depth 11'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
