PLAN 137-176
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

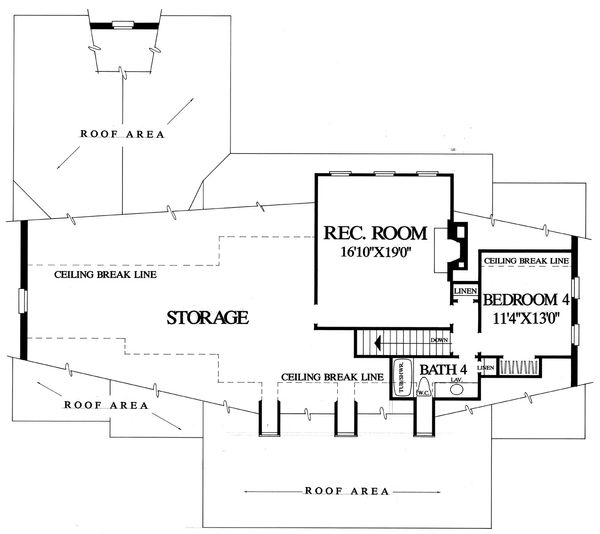

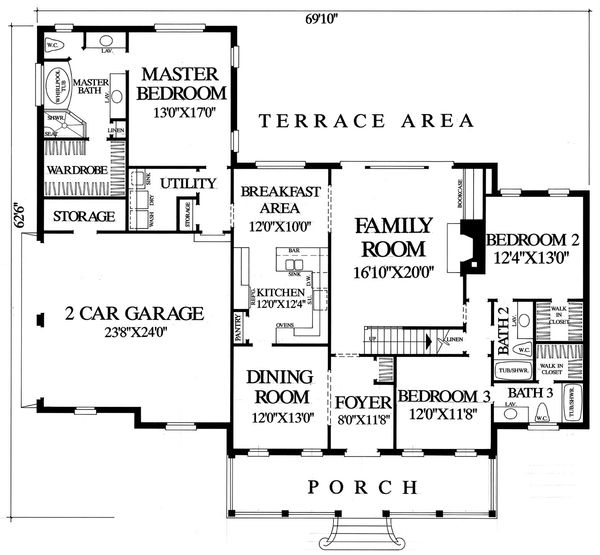

Floor Plans
Full Specs & Features
Dimension
Depth : 62' 6"
Height : 30'
Width : 69' 10"
Area
First Floor: 2215 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bathroom 2:
503 sq/ft width 100' 8" x depth 5'
Bathroom 3:
50 sq/ft width 10' 2" x depth 5'
Bedroom 2:
160 sq/ft width 12' 4" x depth 13'
Bedroom 2 Closet:
28 sq/ft width 5' x depth 5' 8"
Bedroom 3:
140 sq/ft width 12' x depth 11' 8"
Bedroom 3 Closet:
26 sq/ft width 4' 8" x depth 5' 8"
Bedroom 4:
147 sq/ft width 11' 4" x depth 13'
Breakfast Room:
120 sq/ft width 12' x depth 10'
Dining Room:
156 sq/ft width 12' x depth 13'
Foyer:
93 sq/ft width 8' x depth 11' 8"
Game Room:
319 sq/ft width 16' 10" x depth 19'
Garage:
568 sq/ft width 23' 8" x depth 24'
Gathering Room:
336 sq/ft width 16' 10" x depth 20'
Kitchen:
147 sq/ft width 12' x depth 12' 4"
Master Bathroom:
1918 sq/ft width 110' 8" x depth 17' 4"
Master Bedroom:
221 sq/ft width 13' x depth 17'
Master Walk-In Closet:
88 sq/ft width 7' 2" x depth 12' 4"
Porch - Front:
273 sq/ft width 34' 2" x depth 8'
Utility Room:
481 sq/ft width 60' 2" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Designer’s rendering of front elevations
- Foundation and dimensioned floor plans
- Electrical plans
- Section through house
- All exterior elevation
- Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
- Roof Plan and Exterior Details
Plan Set
$800.00
$875.00
$1100.00
$1100.00
$700.00
Foundation
$0.00
Additional Options
$55.00
$100.00
$495.00
$39.00
$55.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
