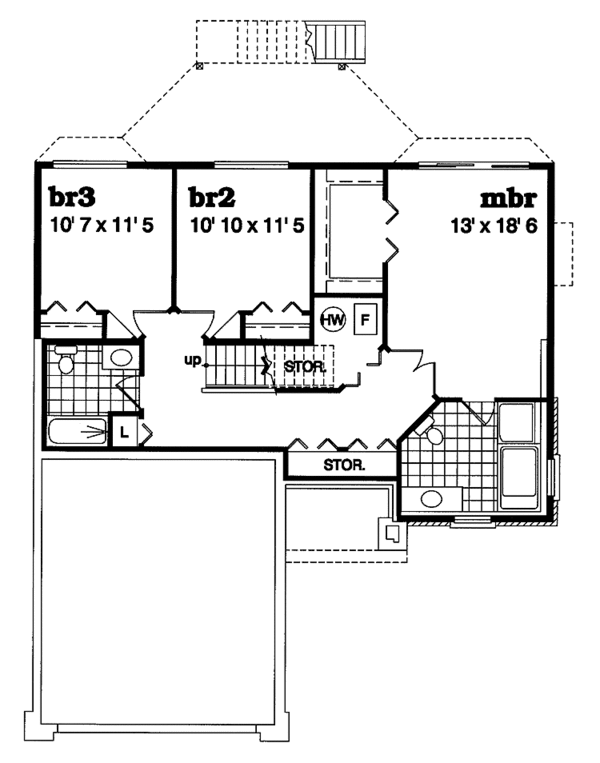

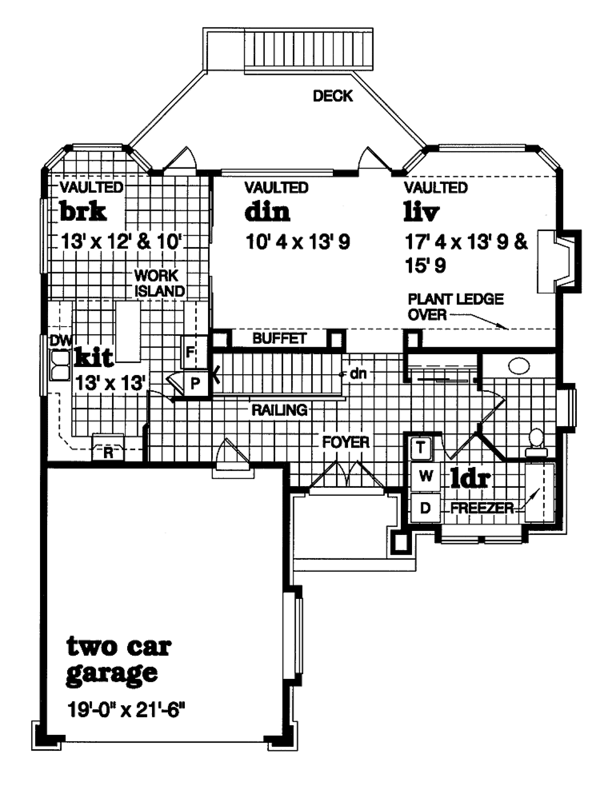

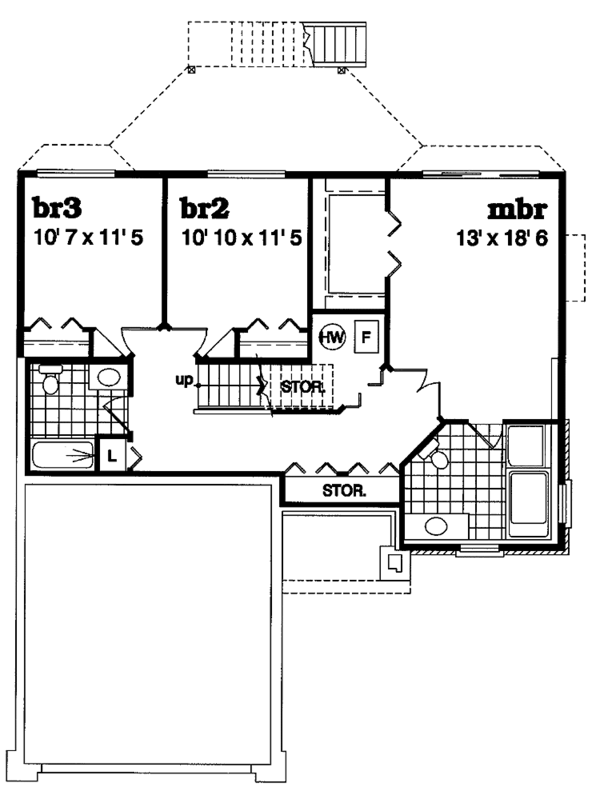

Beautiful Craftsman accents are evident in this design, perfect for a sloping lot. A double-door entry opens off a covered porch to an impressive vaulted foyer. Living areas are to the back and manifest in vaulted living and dining rooms. The living room boasts a bay window and fireplace. Access to the deck sits between the living and dining rooms. The L-shaped kitchen features an island work space and vaulted breakfast bay with deck access. The laundry area is to the front of the house and contains a half bath. Stairs to the lower level are found in the foyer. Sleeping quarters are found below—two family bedrooms and a master suite. The master suite has a walk-in closet and bath with separate tub and shower. Family bedrooms share a full bath.
3rd BR Closet:
9 sq/ft width 2' x depth 4' 6"
1231 sq/ft width 29' 4" x depth 42'
122 sq/ft width 11' 4" x depth 10' 10"
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5' 3"
119 sq/ft width 11' 4" x depth 10' 7"
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5' 3"
156 sq/ft width 12' x depth 13'
160 sq/ft width 8' x depth 20'
141 sq/ft width 13' 8" x depth 10' 4"
64 sq/ft width 7' x depth 9' 2"
408 sq/ft width 21' 6" x depth 19'
62 sq/ft width 8' 4" x depth 7' 6"
11 sq/ft width 2' x depth 5' 8"
169 sq/ft width 13' x depth 13'
236 sq/ft width 13' 8" x depth 17' 4"
98 sq/ft width 8' 8" x depth 11' 4"
240 sq/ft width 18' 6" x depth 13'
55 sq/ft width 10' x depth 5' 7"
Porch - Front:
44 sq/ft width 5' 4" x depth 8' 4"
51 sq/ft width 8' 6" x depth 6'
17 sq/ft width 2' x depth 8' 10"
84 sq/ft width 7' 1" x depth 12'
