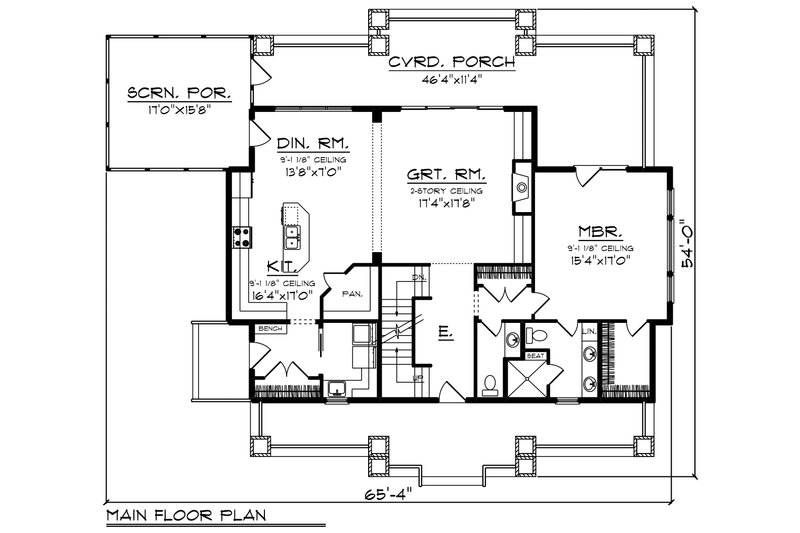

Home Plan - Craftsman Floor Plan - Main Floor Plan #70-1494

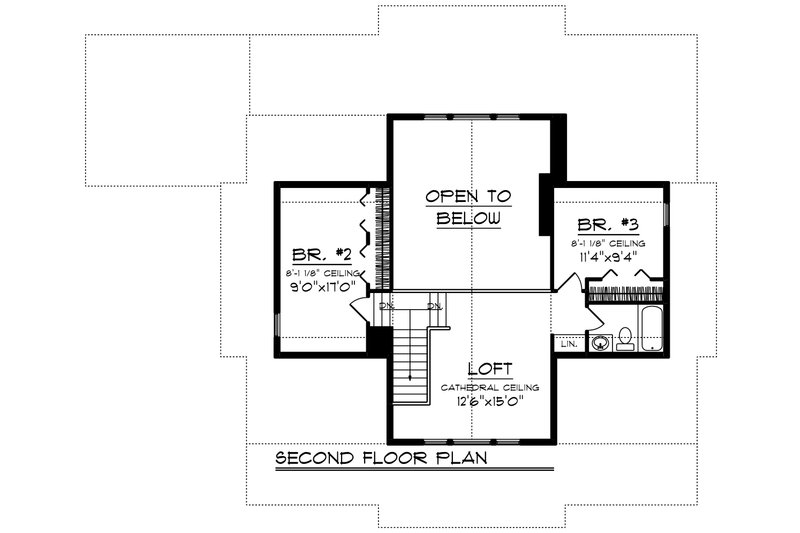

Home Plan - Craftsman Floor Plan - Upper Floor Plan #70-1494

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

2225
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$63.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1089.00 NOW $925.65

You save $163.35 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1494

Home > Style > Craftsman

Key Specs

2225
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Additional Use License: $280.00

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 54'

Height : 22' 10"

Width : 65' 4"

Area

Main Floor : 1575 sq/ft

Porch : 1132 sq/ft

Upper Floor : 650 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Two story Great Room ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Shingle

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2 x 6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Empty Nester

Rooms

Bath 2:

width 7' 8" x depth 5'

Bedroom 2:

width 9' x depth 17'

Bedroom 3:

width 11' 4" x depth 9' 4"

Covered Front Porch:

width 46' 8" x depth 8' 8"

Covered Rear Porch:

width 46' 4" x depth 11' 4"

Dining Room:

width 13' 8" x depth 7'

Foyer:

width 10' 8" x depth 15' 4"

Great Room:

width 17' 4" x depth 17' 8"

Kitchen:

width 16' 4" x depth 17'

Laundry:

width 6' 4" x depth 8' 8"

Loft:

width 12' 6" x depth 15'

Master Bath:

width 10' 4" x depth 8' 8"

Master Bedroom:

width 15' 4" x depth 17'

Master Closet:

width 5' 6" x depth 8' 8"

Mud Room:

width 7' 6" x depth 6'

Pantry:

width 6' x depth 6' 6"

Screened Porch:

width 17' x depth 15' 8"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
