PLAN 455-633
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

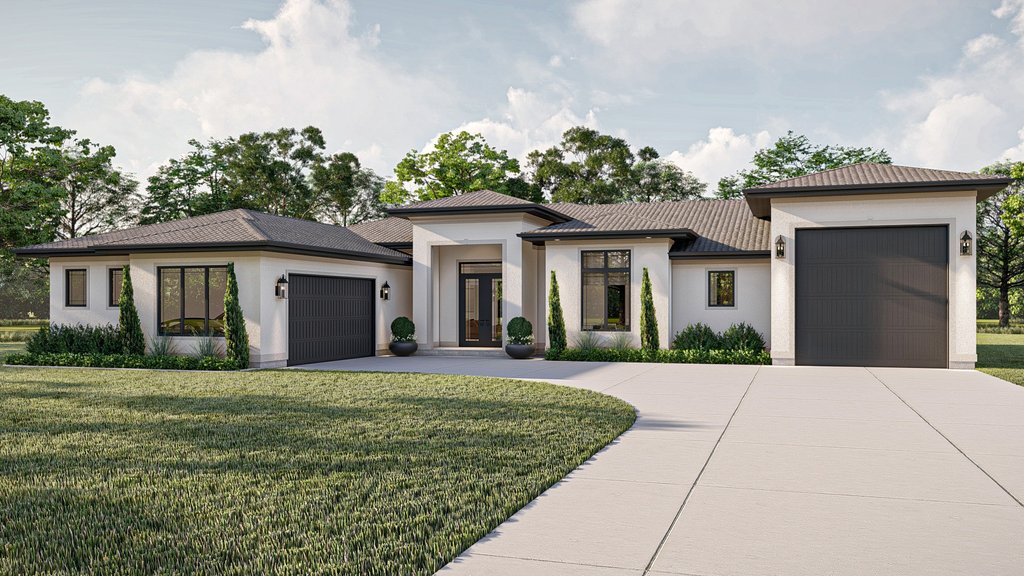

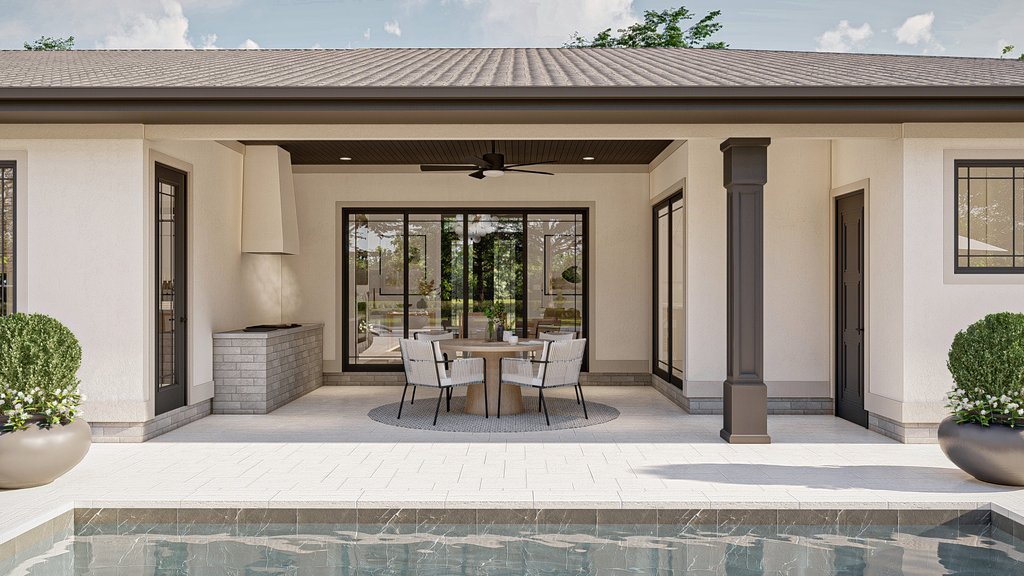

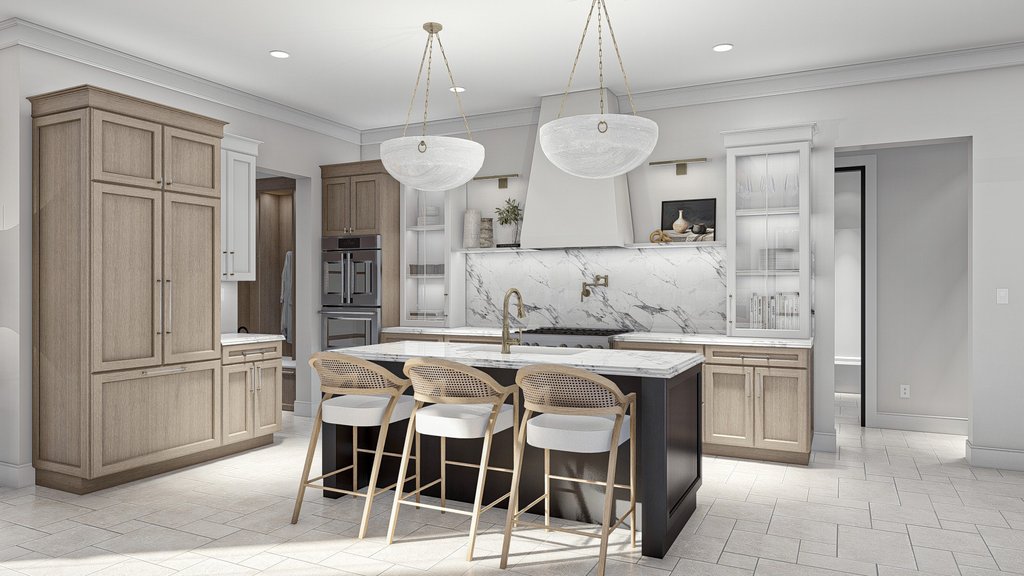

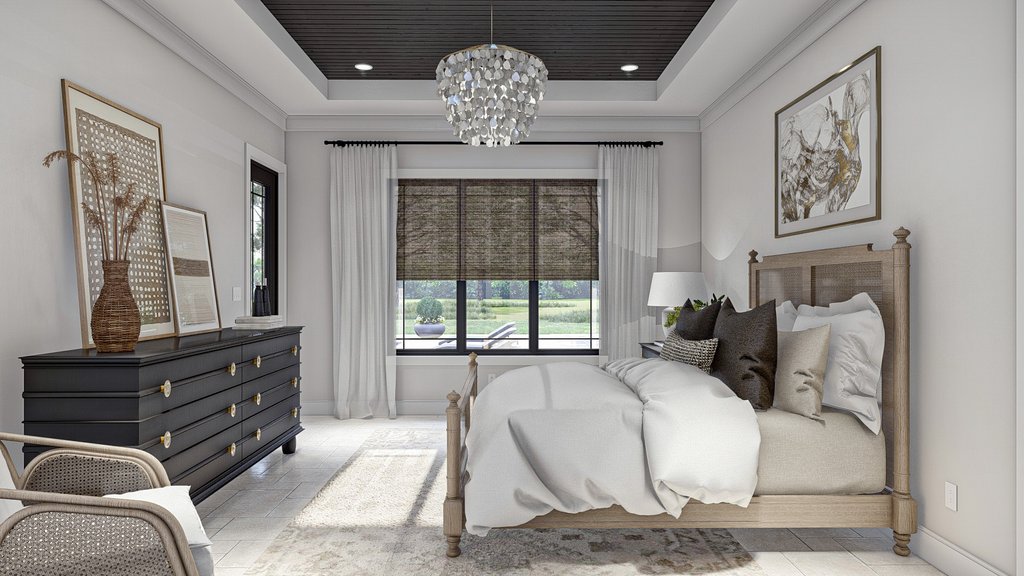

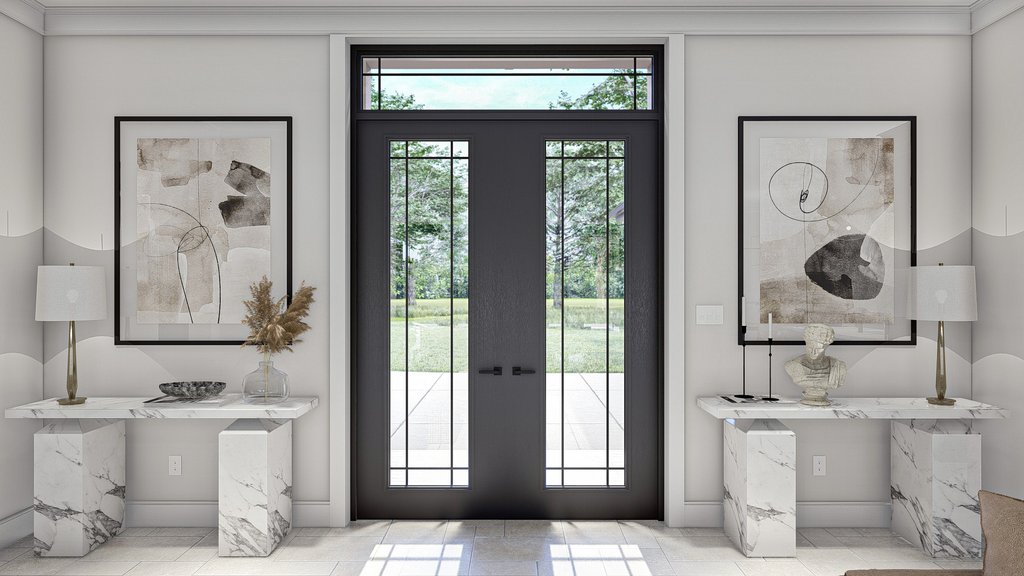

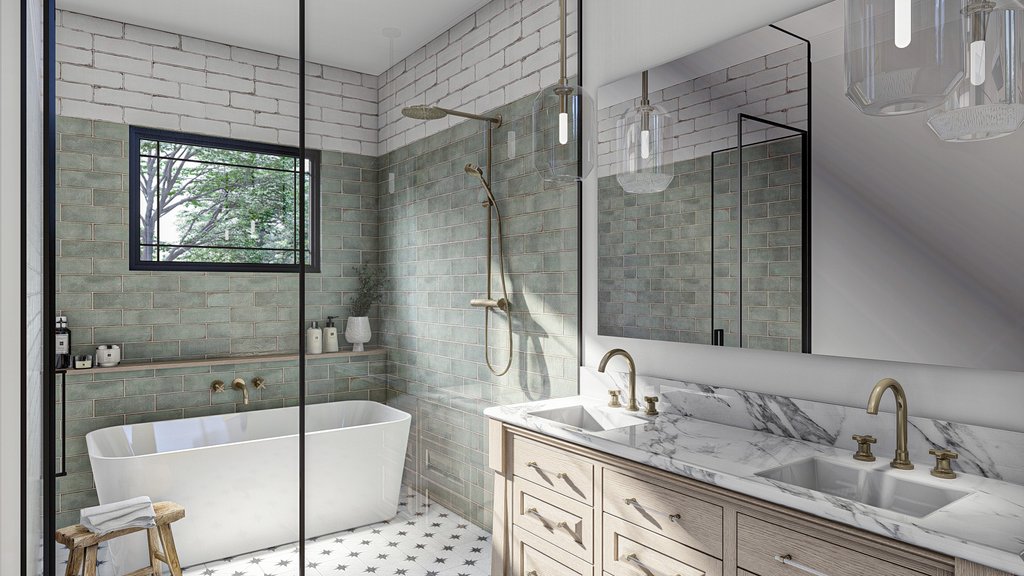

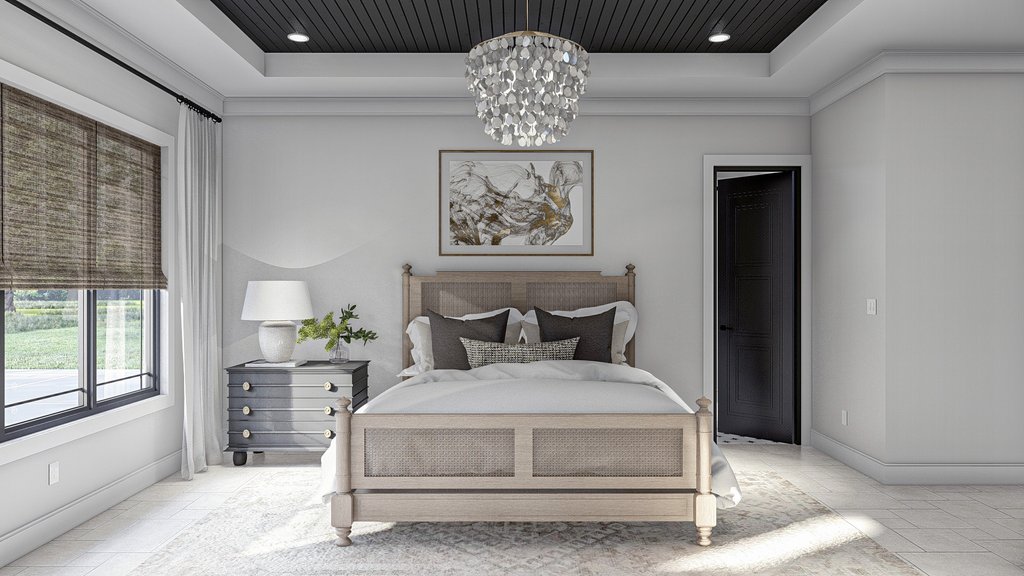

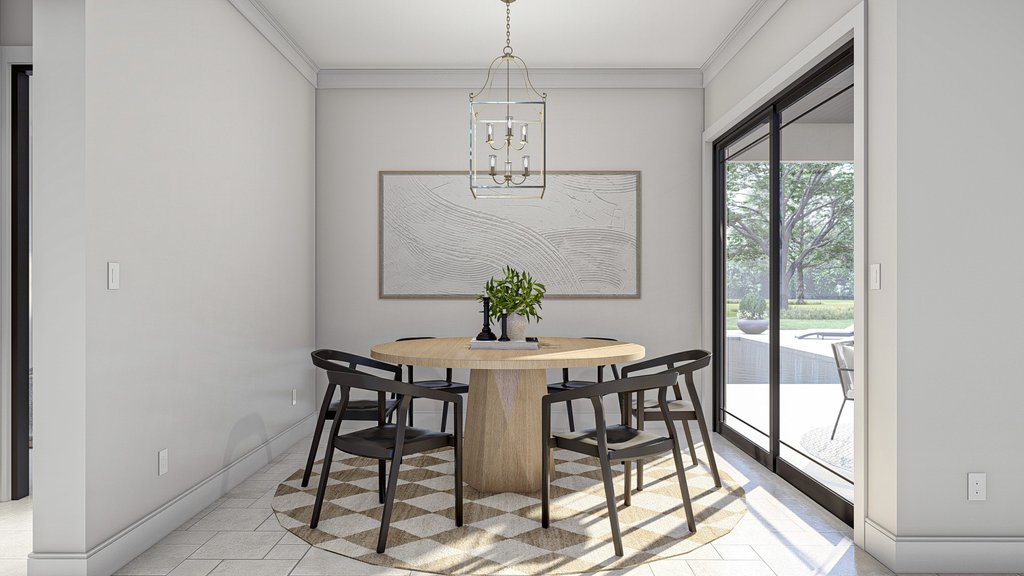

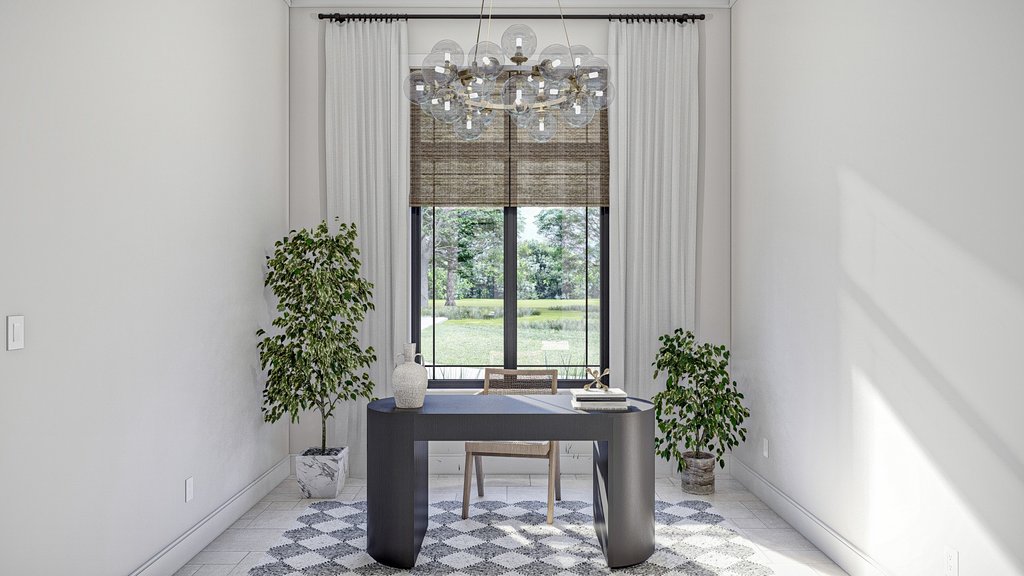

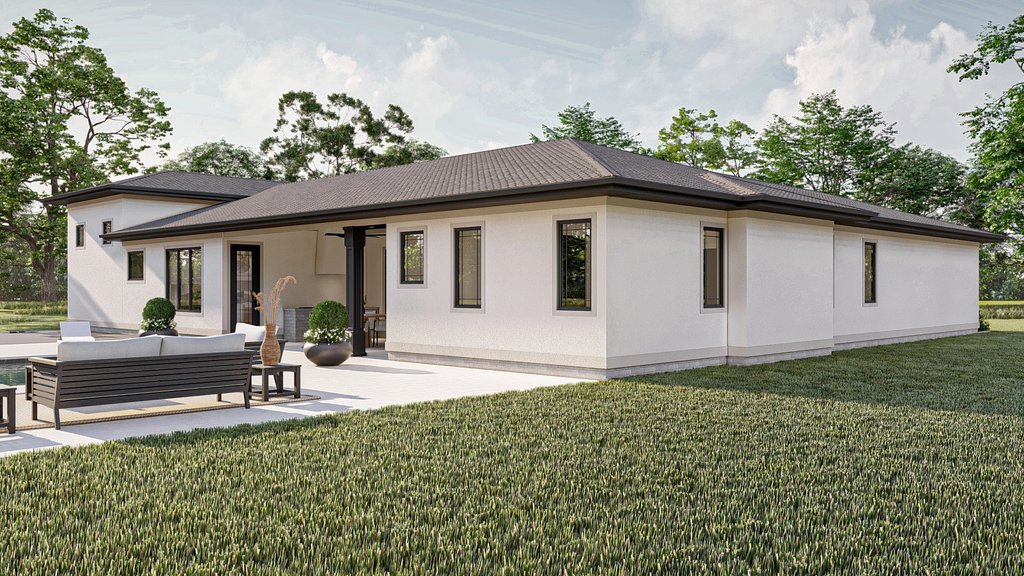

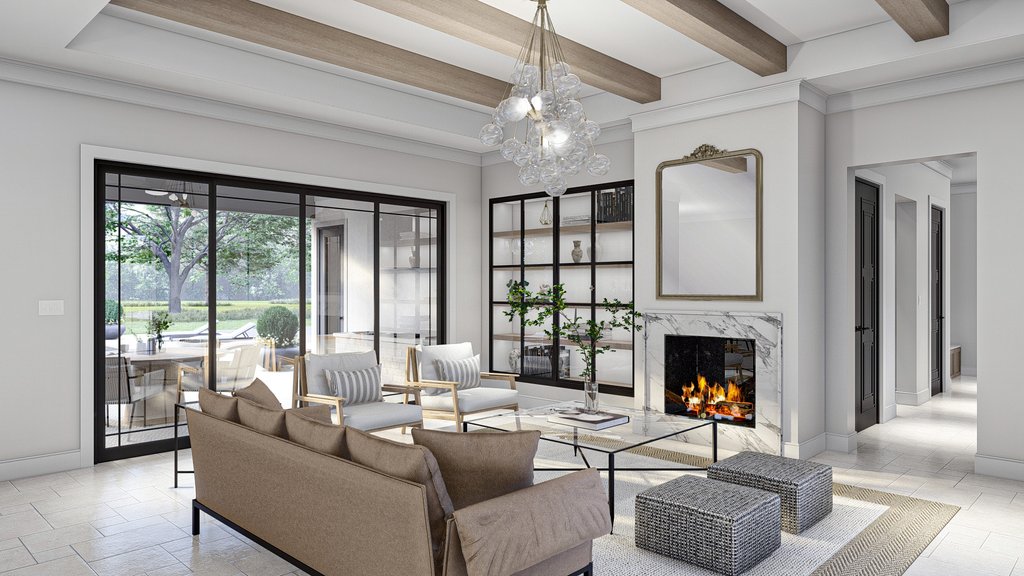

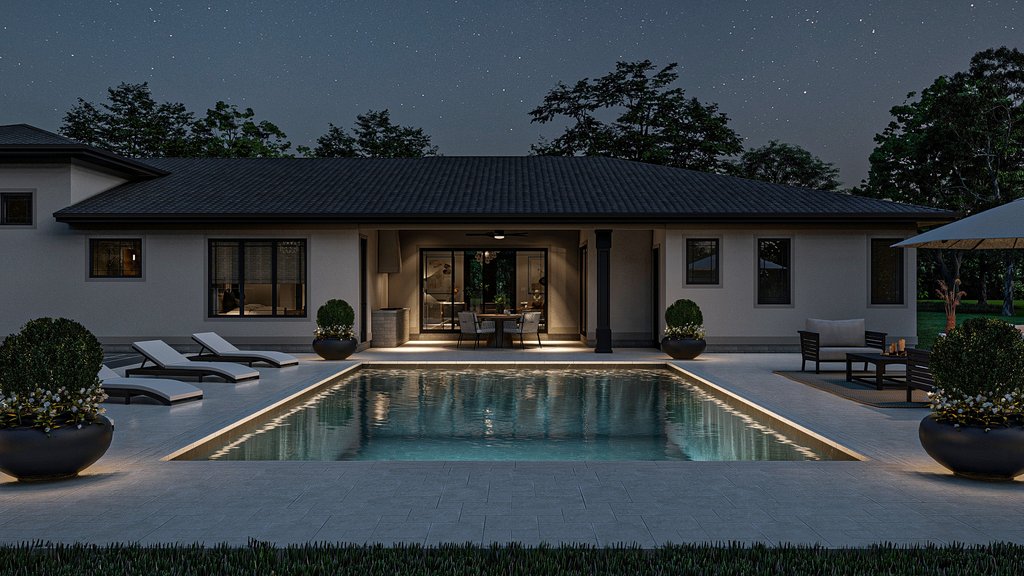

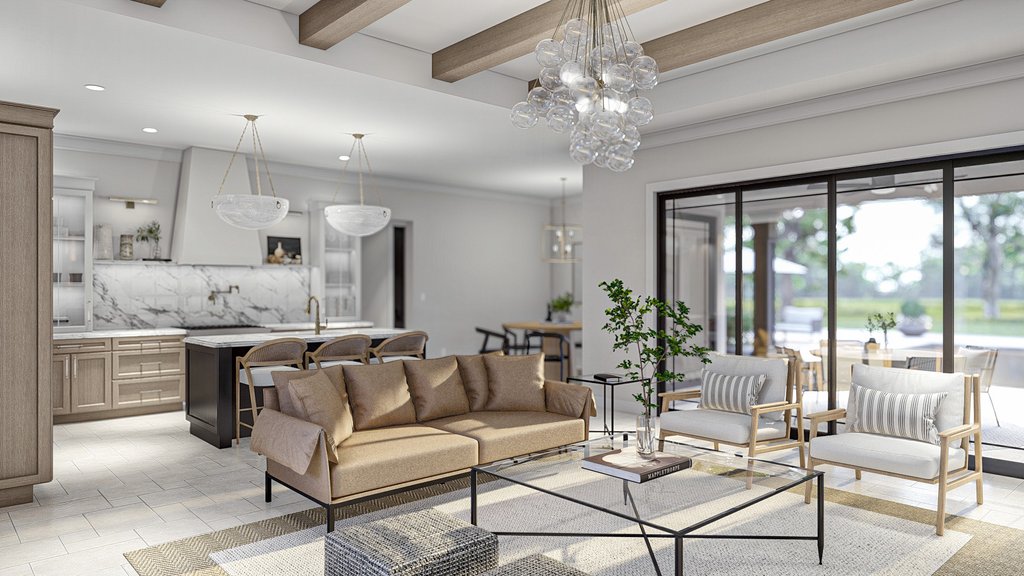

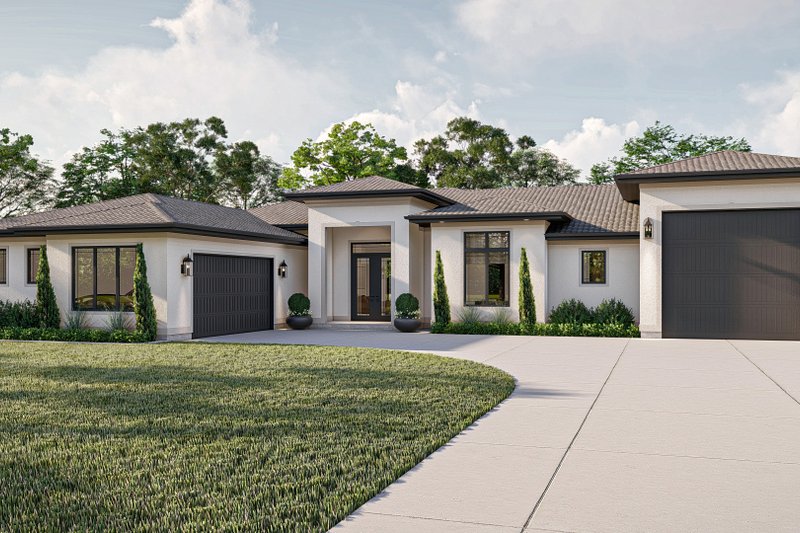

This is a handsome 3 bed, 3 bath, 3 car garage home. The low pitches and contrasting stucco give this home amazing curb appeal. On the inside, you are greeted by a large entry that opens into the great room. The 11 foot tray ceiling has exposed beams in it. The great room flows into the kitchen and the dining room. The kitchen has a walk-in pantry off the mudroom. The left side of the home has two bedrooms that share a hall bath. The right side of the home houses the main suite. It includes two walk-in closets, a shower room, and a dual vanity. There is an office and another mudroom coming in from the RV garage. The laundry room is located off of the mudroom. This home has a 2 car garage on the left side while the right side has an RV garage with an oversized overhead door. At the rear, there is a large covered lanai that has a built in grill and access to a bathroom.
Floor Plans

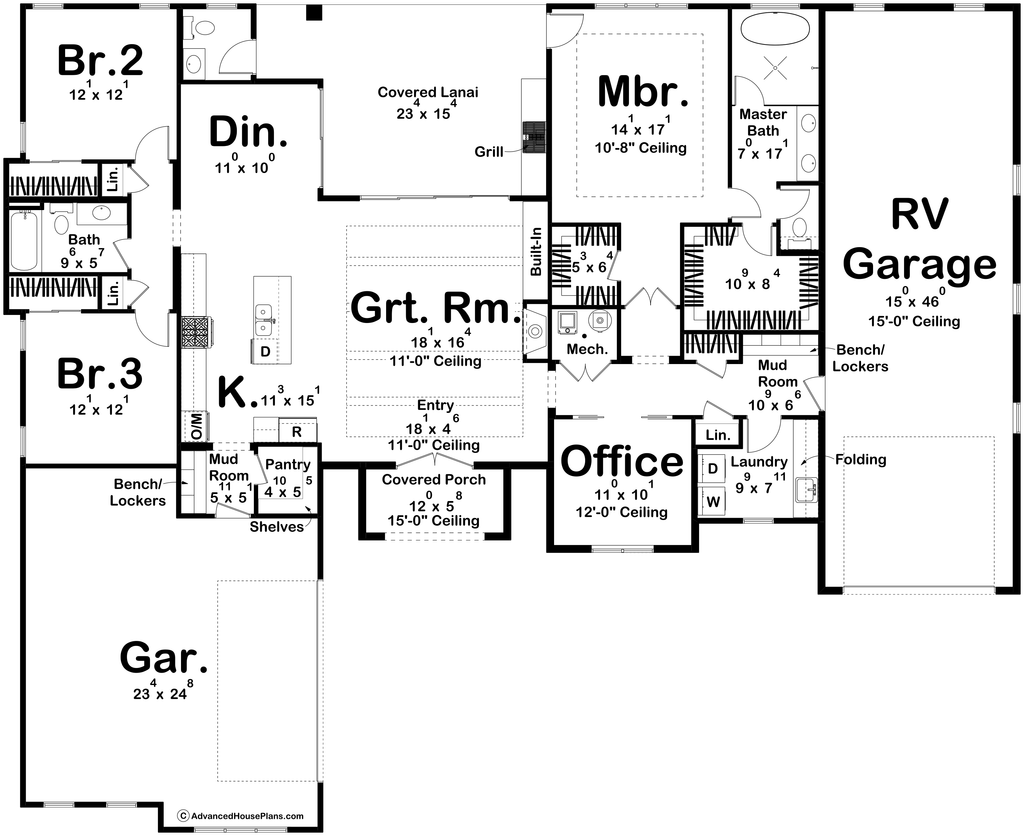

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 66'
Height : 18' 2"
Width : 81'
Area
Garage : 1359 sq/ft
Main Floor : 2230 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered porch and RV garage feature 15'-0" ceiling. The office has a 12'-0" ceiling. The master bedroom features a 10'-0" ceiling. The entry and great room have 11'-0" ceilings.
Main Ceiling : 10'
Roof
Primary Pitch : 4/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
RV Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Outdoor Kitchen Grill
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$1359.15
$1359.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1609.90
$1609.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1868.30
$1868.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2208.30
$2208.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$254.15
$254.15
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$254.15
$254.15
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Walk Out Basement:
$254.15
$254.15
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$254.15
$254.15
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$254.15
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.15
$50.15
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List:
$254.15
$254.15
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
