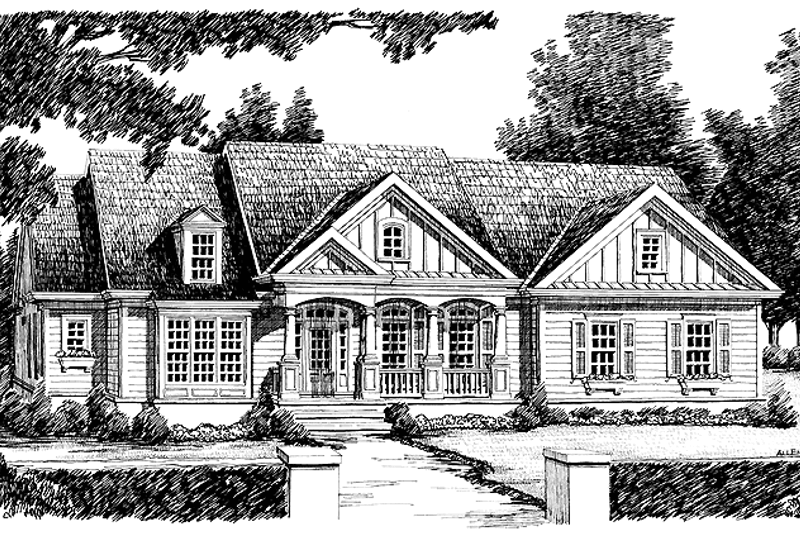

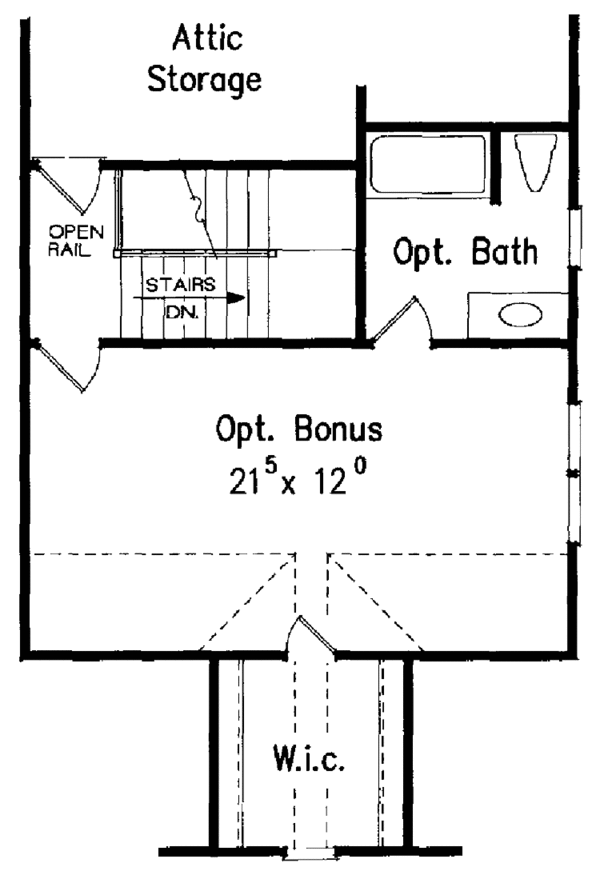

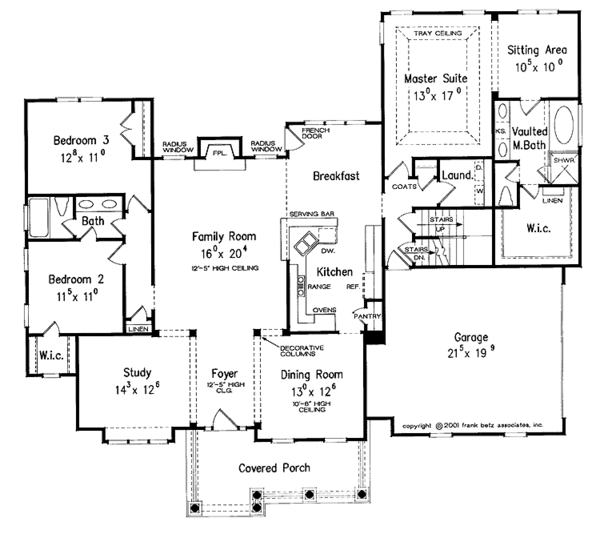

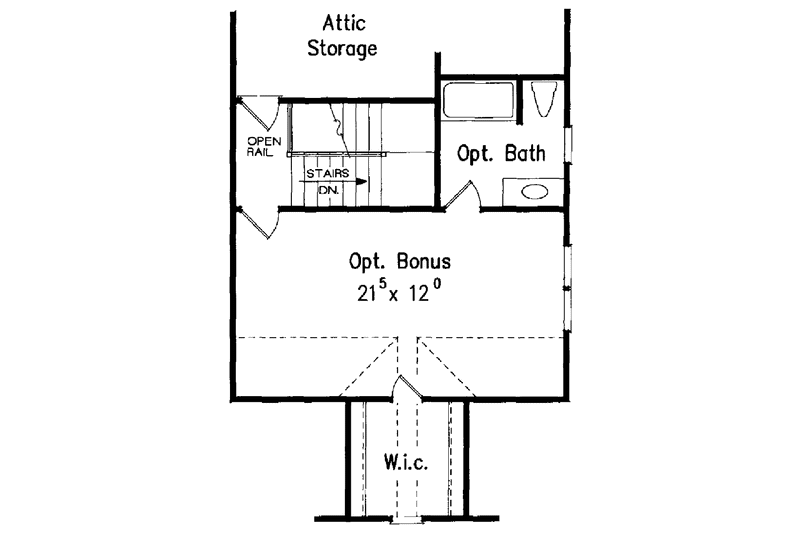

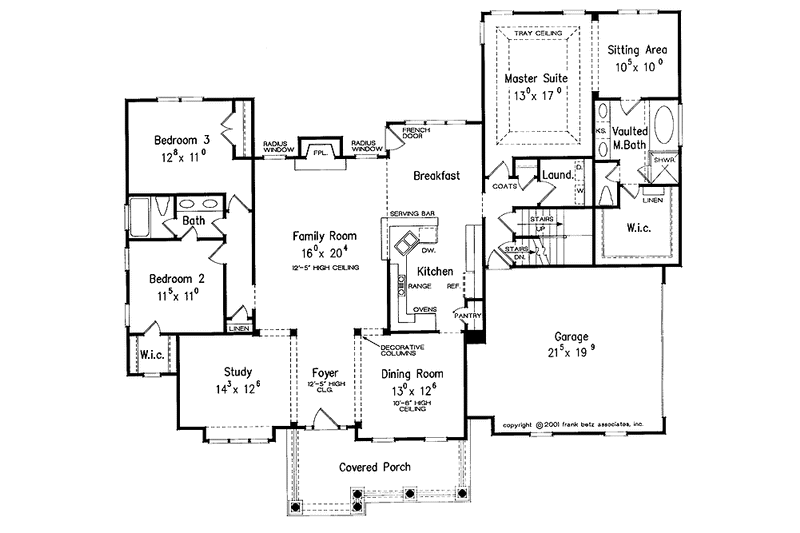

This charming cottage design offers rustic character and traditional simplicity. The quaint covered porch welcomes you inside to a foyer flanked on either side by the formal dining room and study. The family room is central and features a cozy fireplace. The kitchen serves the breakfast room, which accesses the rear through a French door. Two family bedrooms that share a hall bath are located to the left side of the plan. The secluded master suite is on the opposite side of the home and is enhanced by a sitting room, vaulted master bath and a walk-in closet. A two-car garage and laundry room complete the first floor. Upstairs, the optional bonus room features a bath and walk-in closet--great for a private home office or guest suite.
width 11' 5" x depth 11'
width 12' 8" x depth 11'
441 sq/ft width 21' 5" x depth 12'
width 11' 3" x depth 11' 10"
width 13' x depth 12' 6"
width 16' x depth 20' 4"
width 7' x depth 11'
453 sq/ft width 21' 5" x depth 19' 9"
140 sq/ft width 11' 3" x depth 12' 6"
width 6' 4" x depth 5' 8"
width 12' 2" x depth 10'
width 13' x depth 17'
width 10' 2" x depth 9' 4"
width 10' 5" x depth 10'
width 14' 3" x depth 12' 6"
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
