This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Modify This Plan
Full Specs & Features
Depth : 30'
Height : 16'
Width : 85'

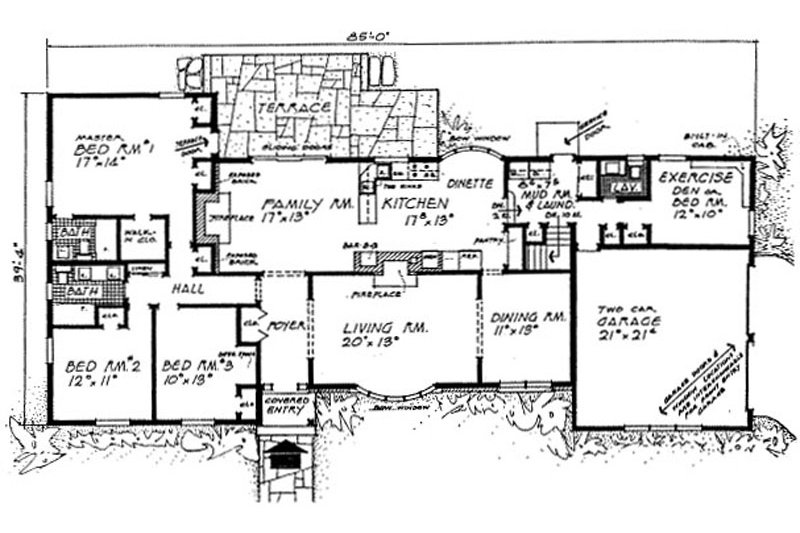

First Floor: 2259 sq/ft
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x6"
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
238 sq/ft width 17' x depth 14'
132 sq/ft width 12' x depth 11'
143 sq/ft width 11' x depth 13'
120 sq/ft width 12' x depth 10'
306 sq/ft width 17' x depth 18'
221 sq/ft width 17' x depth 13'
260 sq/ft width 20' x depth 13'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
