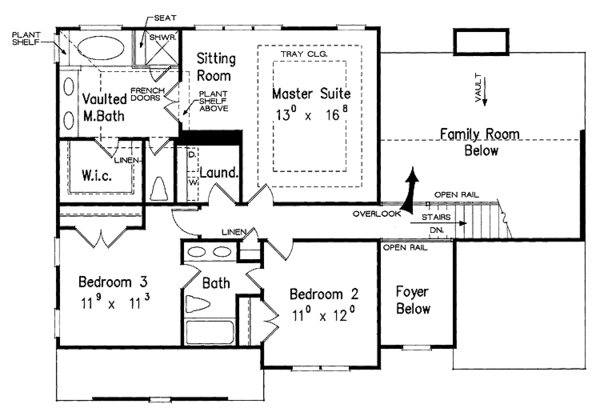

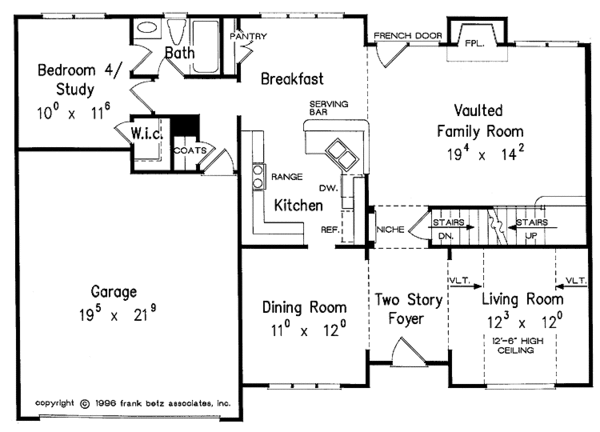

Classic capstones and cornices complement a new blend of siding, stucco and asymmetrical gables on a traditional design that's going places. Vaulted family living space offsets quiet, formal rooms, and offers a focal-point fireplace framed by a French door. A study or guest suite nestles off the breakfast room. Upstairs, a sensational master suite with a tray ceiling, a sitting room and a vaulted bath with a plant shelf, whirlpool spa and walk-in closet with linen storage leads to a gallery hall with a balcony overlook.
width 10' 9" x depth 12'
width 11' 9" x depth 11' 3"
width 10' x depth 11' 6"
110 sq/ft width 11' x depth 10'
width 11' x depth 12'
width 19' 4" x depth 14' 2"
width 7' x depth 10'
440 sq/ft width 19' 5" x depth 21' 9"
width 11' x depth 10' 5"
width 6' 1" x depth 5' 7"
width 12' 2" x depth 12'
width 11' 7" x depth 10' 4"
width 13' x depth 16' 8"
width 8' x depth 8' 4"
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
