PLAN 70-1054

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

A hip roofline defines this spacious ranch where every square foot of space is made use of. As you enter the home, the dramatic beamed ceilings in the great room directly ahead will amaze you with their presence in the main living area. The open plan includes a kitchen with and island that provides additional seating, and a formal dining room with step ceiling. An octagonal deck is accessed off both the dining room and the den that's located to the right of the kitchen. The master suite will impress mom with step ceilings, an on-suite bath and impressive walk-in closet. A second bedroom lies to the right of the entry with access to a full bath just outside its door. A two-stall, side load garage completes this plan.

Floor Plans

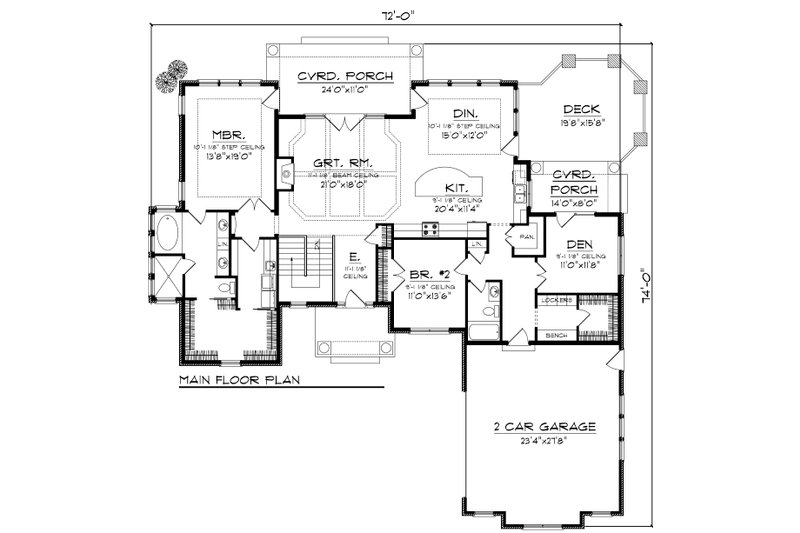

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-1054

Full Specs & Features

Depth : 74'
Height : 23'
Width : 72'
First Floor: 2271 sq/ft
Garage: 648 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Entry 11', Great Room 11' Beam, Master Bedroom and Dining Rm 10' Step
Main Ceiling : 9'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : stucco, stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck


width 72' x depth 68'

Bathroom 2:

width 5' x depth 9'

Bedroom 2:

width 11' x depth 13' 6"

Bedroom 2 Closet:

width 2' 1" x depth 8'


width 19' 8" x depth 15' 8"


width 11' x depth 11' 8"


width 15' x depth 12'


width 6' 4" x depth 10'


648 sq/ft width 23' 4" x depth 27' 8"

Great Room:

width 21' x depth 18'


width 6' x depth 3' 10"

Hall Closet:

width 2' 1" x depth 3' 4"


width 20' 4" x depth 11' 4"


width 7' x depth 10' 6"

Master Bath:

width 11' 6" x depth 13'

Master Bedroom:

width 13' 8" x depth 19'

Master Walk In Closet:

width 14' x depth 9' 4"

Mud Room:

width 6' x depth 7'

Porch Front:

width 12' 2" x depth 8'

Porch Rear:

width 24' x depth 11'

Porch Side:

width 14' x depth 8'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
