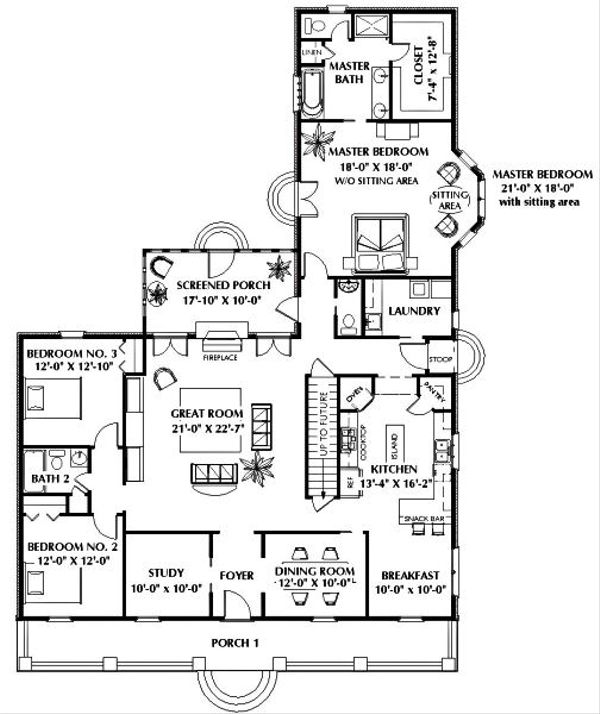

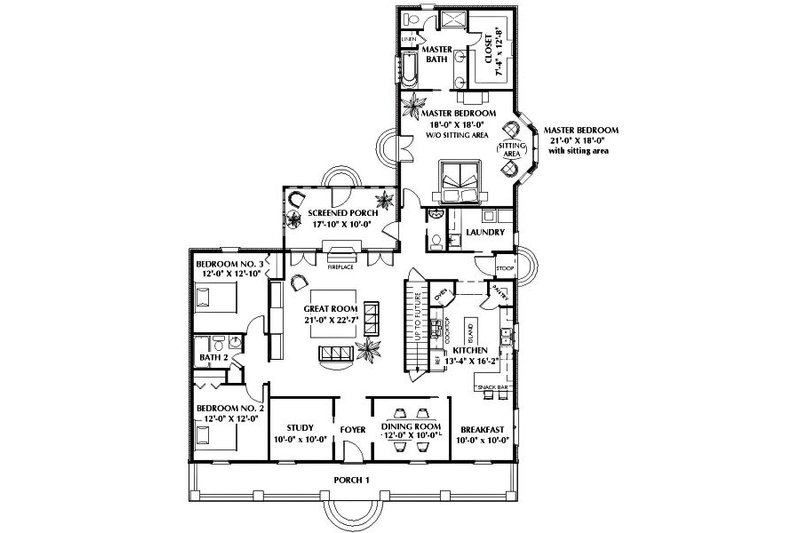

Bathroom 2:
43 sq/ft width 8' x depth 5' 5"
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
153 sq/ft width 12' x depth 12' 10"
Breakfast Room:
118 sq/ft width 10' x depth 11' 10"
Dining Room:
120 sq/ft width 12' x depth 10'
Foyer:
60 sq/ft width 6' x depth 10'
Great Room:
474 sq/ft width 21' x depth 22' 7"
Kitchen:
215 sq/ft width 13' 4" x depth 16' 2"
Laundry Room:
72 sq/ft width 10' 6" x depth 6' 11"
Master Bathroom:
135 sq/ft width 10' 8" x depth 12' 8"
Master Bedroom:
135 sq/ft width 10' 8" x depth 12' 8"
Master Closet:
92 sq/ft width 7' 4" x depth 12' 8"
Porch - Front:
300 sq/ft width 50' x depth 6'
Porch - Screened:
100 sq/ft width 10' x depth 10'
Powder Room:
21 sq/ft width 3' 2" x depth 6' 11"
Study:
100 sq/ft width 10' x depth 10'
All plans are drawn at ¼” scale or larger and include :
PDF Set : $1000.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
5 Copy Set : $1110.00 |
5 printed plan sets mailed to you. |
5 Copy and PDF Set : $1130.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Right-Reading Reverse : $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
Additional Construction Sets : $45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $70.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
