PLAN 437-89
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Modern Ranch plan with finished walkout basement.
Full Specs & Features
Dimension
Depth : 82'
Height : 30' 6"
Width : 47'
Height : 30' 6"
Width : 47'
Area
Basement : 1366 sq/ft
Garage : 658 sq/ft
Lower Floor : 942 sq/ft
Main Floor : 2308 sq/ft
Porch : 267 sq/ft
Garage : 658 sq/ft
Lower Floor : 942 sq/ft
Main Floor : 2308 sq/ft
Porch : 267 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 12' Great Room ceiling; tray ceiling in Master Bedroom
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt Shingle
Secondary Pitch : 4:12
Roof Framing : Truss
Roof Type : Asphalt Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2 x 4
Framing : 2 x 4
Bedroom Features

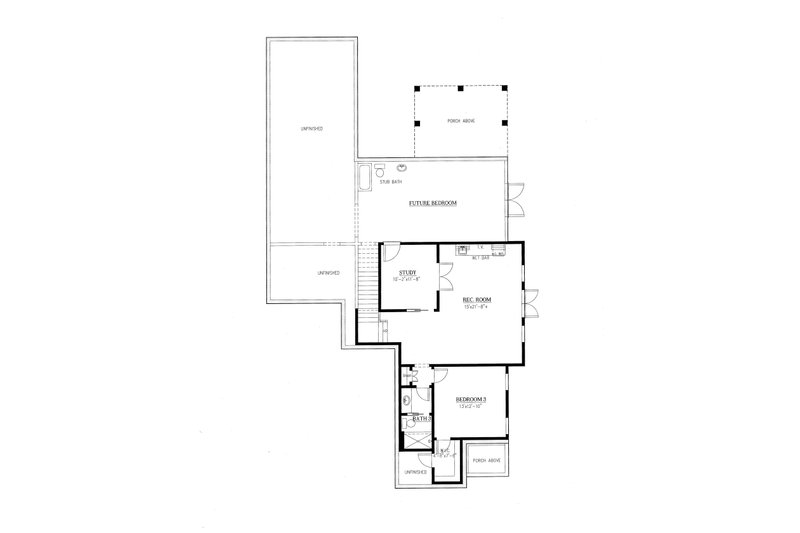

Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Sunroom
Unfinished Future Space
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Covered Rear Porch
Screened Porch
What's Included In This Plan Set
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1195.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $1385.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Additional Options
| Right-Reading Reverse : $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
Other Plans By this Designer
Browse Similar Plans
Recently Viewed Floor Plans
