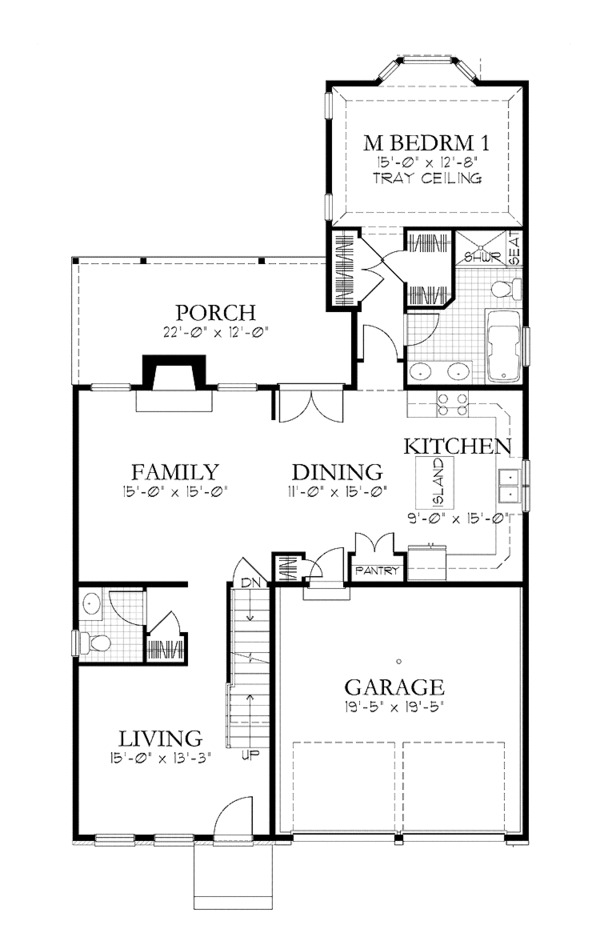

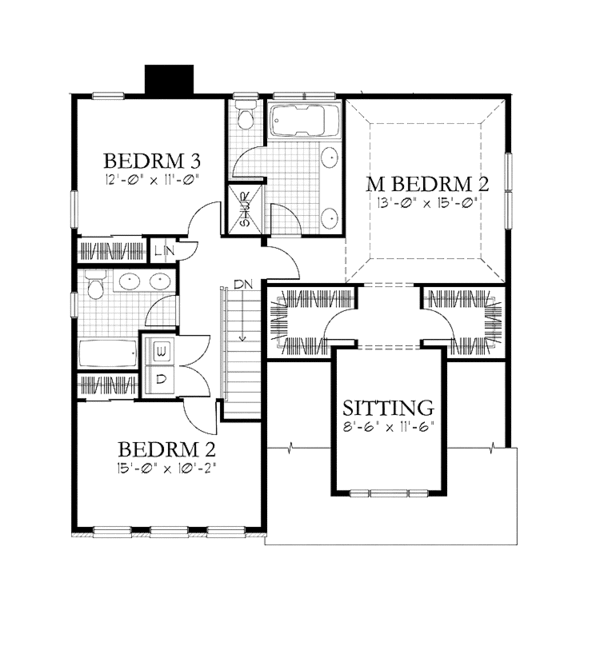

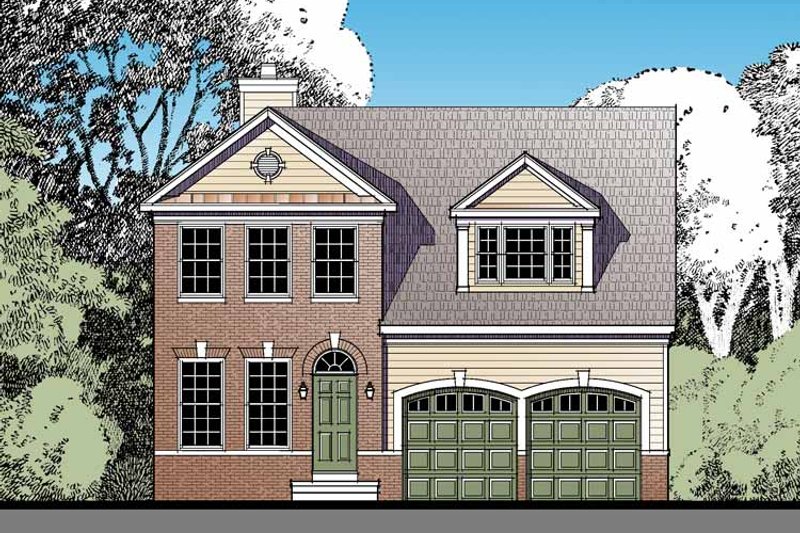

A house to grow into or to accommodate an extended family, this design has two Master Suites - one up and one down to allow a variety of family arrangements. The house can sit on a narrow infill lot and will have all amenities of a new house with the charm of a traditional early 20th century home. Elegant brick and siding facade. Family Room, Dining and Kitchen are completely open across the back with fireplace and plenty of glass. Wrap-around island Kitchen with Pantry is open to all Family Room activity. Back porch accessed through the Dining area takes in the entire rear yard. Formal front-facing Living Room and open stair. First Floor Master Suite with angled bay window, tray ceiling, Master Bath with soaking tub, shower and seat, and His-n-Hers Closets. Luxurious Second Floor Master Suite with Siting room, tray ceiling, Master Bath with soaking but, shower, and His-n-Hers Walk-In Closets.
152 sq/ft width 15' x depth 10' 2"
132 sq/ft width 12' x depth 11'
165 sq/ft width 11' x depth 15'
225 sq/ft width 15' x depth 15'
377 sq/ft width 19' 5" x depth 19' 5"
135 sq/ft width 9' x depth 15'
198 sq/ft width 15' x depth 13' 3"
190 sq/ft width 15' x depth 12' 8"
195 sq/ft width 13' x depth 15'
Master Sitting Room:
97 sq/ft width 8' 6" x depth 11' 6"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
