PLAN 310-1186
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

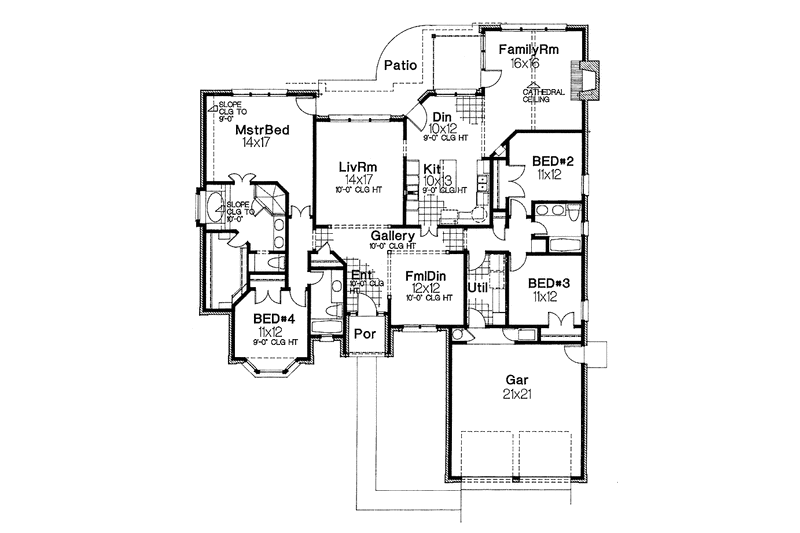

Floor Plans
Full Specs & Features
Dimension
Depth : 70'
Height : 26'
Width : 60'
Area
First Floor: 2416 sq/ft height 8'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 4:
132 sq/ft width 11' x depth 12'
Dining Room:
144 sq/ft width 12' x depth 12'
Kitchen:
130 sq/ft width 10' x depth 13'
Living Room:
238 sq/ft width 14' x depth 17'
Master Bedroom:
238 sq/ft width 14' x depth 17'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

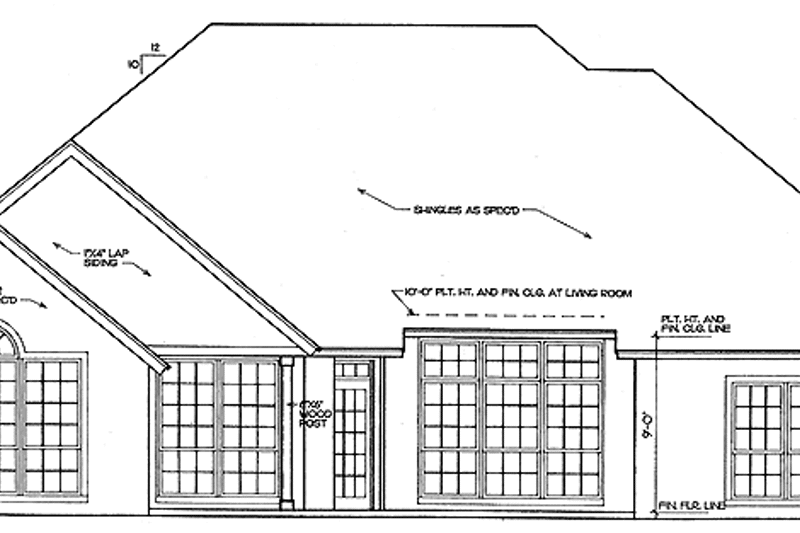

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$1045.00
$1185.00
$1335.00
$1335.00
$990.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$65.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
