PLAN 1060-24
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 1060-24
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Perfect for a getaway, relax in this cozy cabin home with an awesome front porch with plenty of space to soak in the view. The large main level master furthers the theme of relaxation and 2 large bedrooms in the basement ensure ample room for guests. A bonus second floor has endless possibilities, like 2 additional bedrooms and a bath.
Full Specs & Features
Height : 24' 3"
Width : 40'
Bonus: 650 sq/ft
First Floor: 1218 sq/ft height 9'
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 7:12
Framing : Wood - 2x6
Split Bedrooms
Walk In Closet
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Bath 2:
64 sq/ft width 12' 10" x depth 5'
Bedroom 2:
163 sq/ft width 14' 6" x depth 11' 3"
Bedroom 3:
118 sq/ft width 10' 6" x depth 11' 3"
Covered Front Porch:
354 sq/ft width 40' x depth 9'
Family Room:
592 sq/ft width 21' 1" x depth 28' 1"
Great Room/Kitchen:
502 sq/ft width 17' 3" x depth 29' 1"
Master Closet:
62 sq/ft width 7' 4" x depth 8' 6"
Master Bath:
119 sq/ft width 9' 8" x depth 12' 4"
Master Bedroom:
285 sq/ft width 17' 3" x depth 16' 6"
Opt Bath 3:
50 sq/ft width 6' 10" x depth 7' 3"
Optional Bedroom 4:
210 sq/ft width 15' x depth 14'
Optional Bedroom 5:
210 sq/ft width 15' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

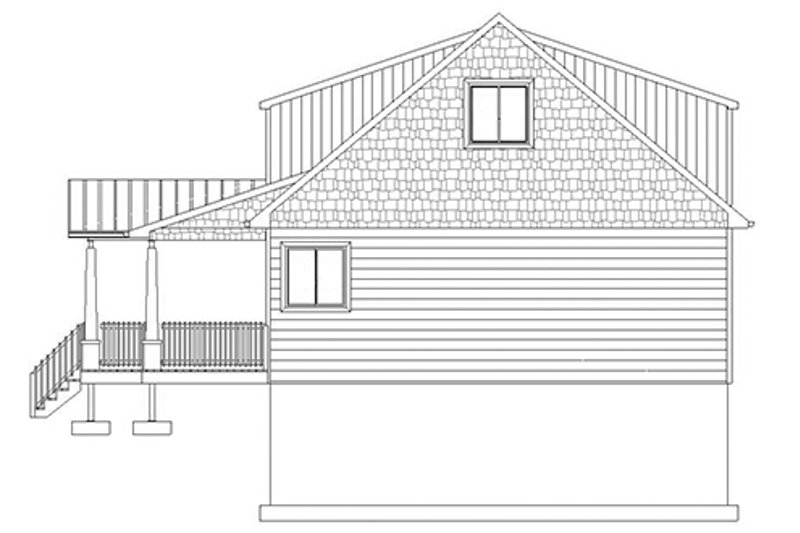

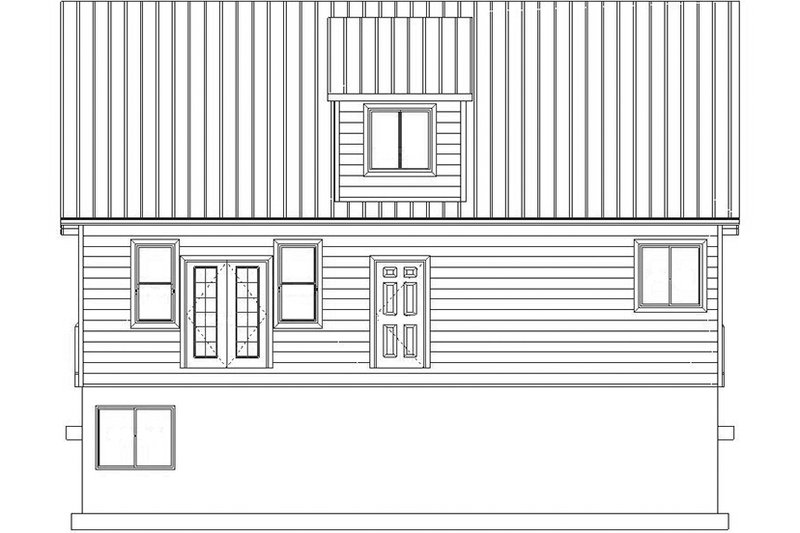

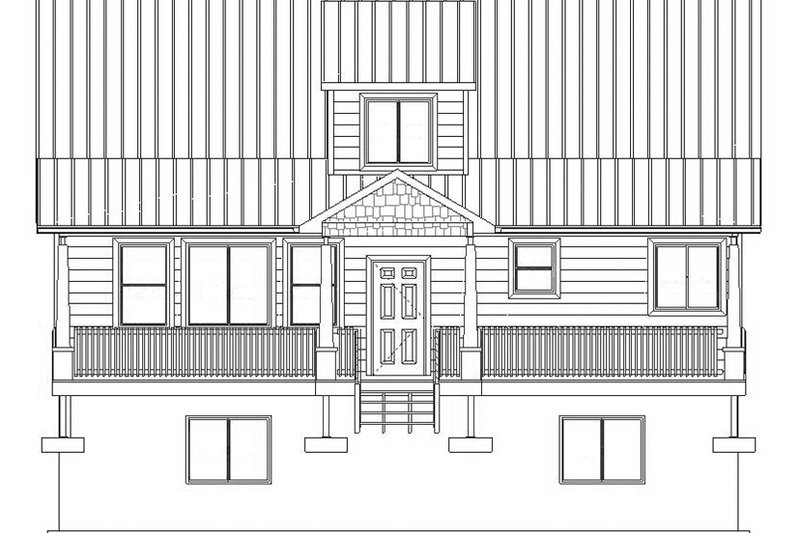

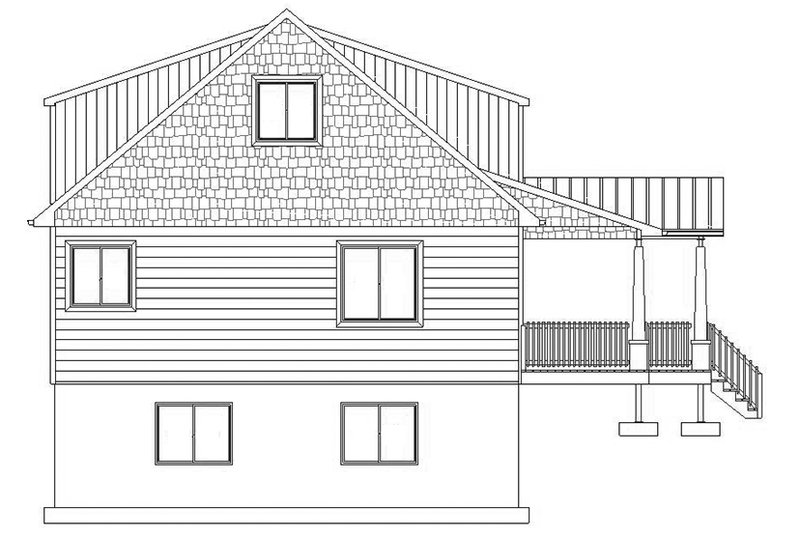

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

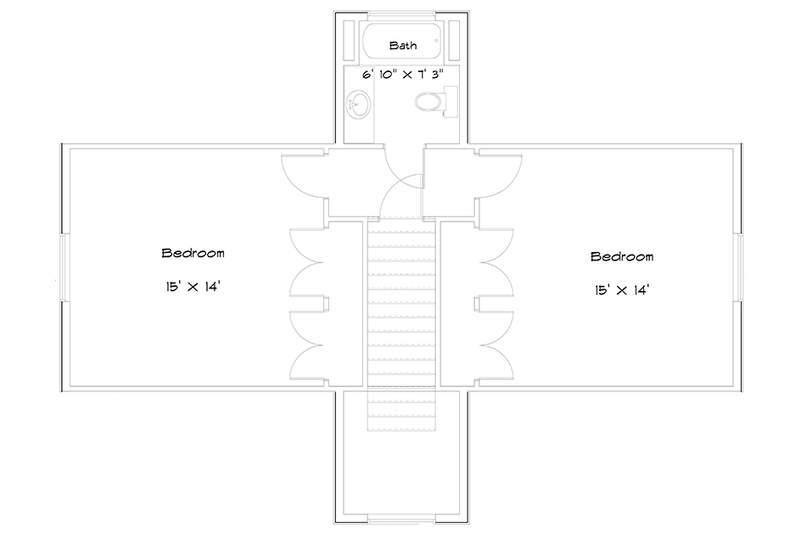

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
