PLAN 79-279
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

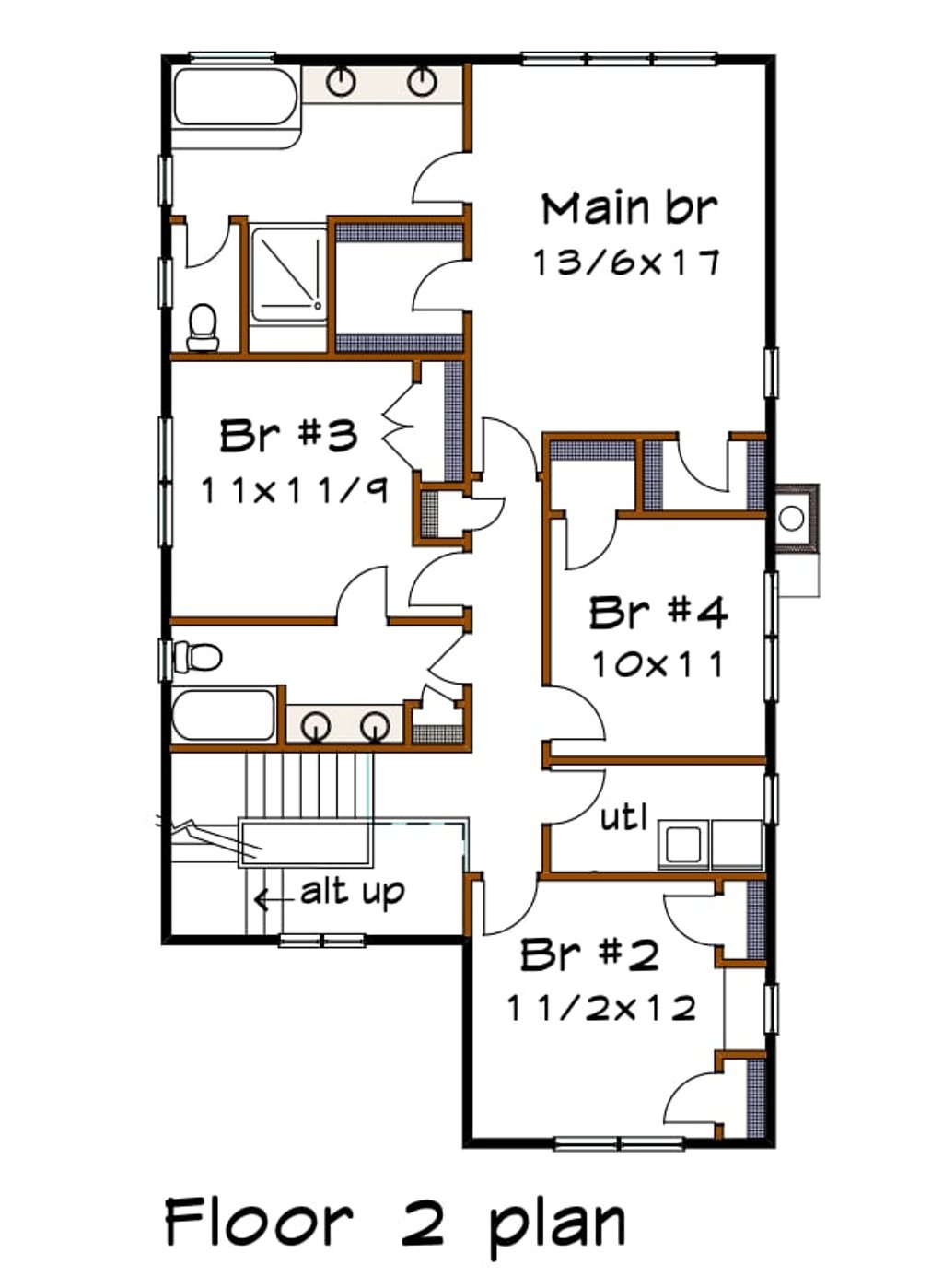

Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 30' 6"
Width : 28'
Area
Main Floor : 1254 sq/ft
Upper Floor : 1164 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Upstairs Laundry
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
- Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.
- Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.
- Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.
- Exterior Elevations - All elevations drawn at 1/4"=1'-0". Electrical Plans - All electrical located on separate drawings. Schedules - Door and window schedules.
- Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.
- Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.
- Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0" Roof Plan - Roof plan at 1/8"=1'-0"
Plan Set
$1075.00
$1800.00
$1900.00
Foundation
$0.00
Framing
$0.00
$295.00
Additional Options
$175.00
$165.00
$295.00
$39.00
$165.00
$150.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
