PLAN 120-115
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58'
Height : 30'
Width : 67'
Area
Bonus: 240 sq/ft

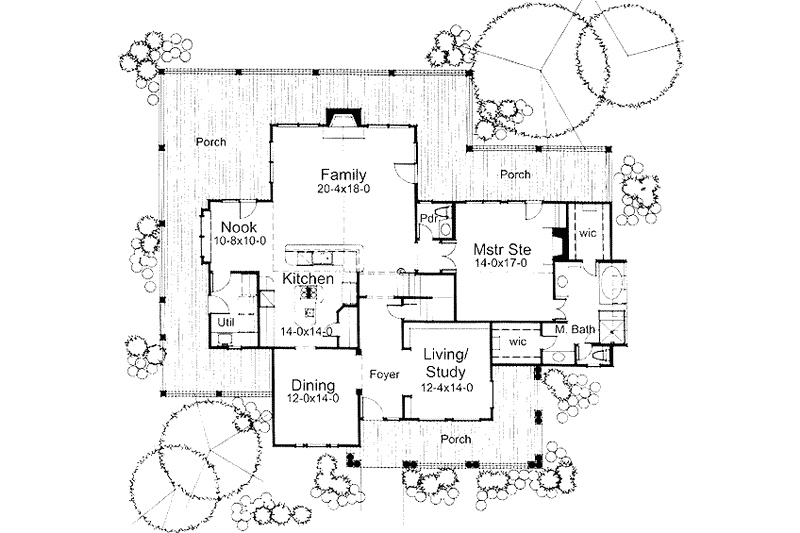

First Floor: 1932 sq/ft height 9'

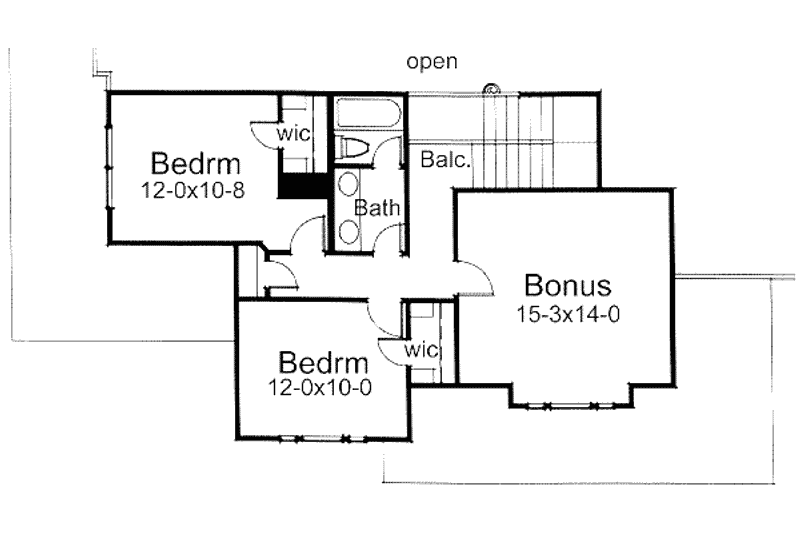

Second Floor: 488 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Play Flex Room
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
3rd BR Closet:
18 sq/ft width 3' 3" x depth 5' 8"
Attic:
213 sq/ft width 15' 3" x depth 14'
Basement Foundation:
2820 sq/ft width 60' x depth 47'
Bathroom 2:
56 sq/ft width 5' x depth 11' 4"
Bedroom 2:
119 sq/ft width 12' 1" x depth 9' 11"
Bedroom 2 Closet:
18 sq/ft width 3' 2" x depth 5' 11"
Bedroom 3:
128 sq/ft width 12' x depth 10' 8"
Bedroom 3 Closet:
18 sq/ft width 3' 2" x depth 5' 11"
Breakfast Room:
90 sq/ft width 9' x depth 10' 1"
Crawlspace Foundation:
2820 sq/ft width 60' x depth 47'
Dining Room:
169 sq/ft width 12' 1" x depth 14'
Foyer:
105 sq/ft width 6' x depth 17' 6"
Gathering Room:
430 sq/ft width 20' 5" x depth 21' 1"
Hall:
64 sq/ft width 21' x depth 3' 1"
Kitchen:
197 sq/ft width 14' 1" x depth 14'
Master Bathroom:
176 sq/ft width 11' 10" x depth 14' 11"
Master Bedroom:
237 sq/ft width 13' 10" x depth 17' 2"
Master Closet:
409 sq/ft width 6' 10" x depth 60'
Porch - Front:
238 sq/ft width 34' x depth 7'
Porch - Rear:
1008 sq/ft width 126' x depth 8'
Powder Room:
25 sq/ft width 5' 1" x depth 5' 1"
Utility Room:
71 sq/ft width 6' 8" x depth 10' 8"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

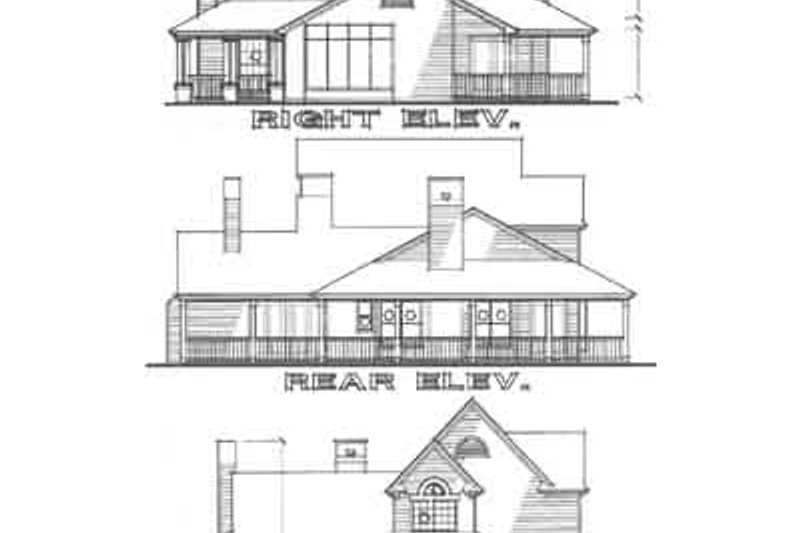

- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1095.00
$1095.00
$1245.00
$1345.00
$1895.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$245.00
Additional Options
$195.00
$50.00
$395.00
$165.00
$295.00
$39.00
$395.00
$195.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
