PLAN 328-417
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 76'
Width : 50'
Area
First Floor: 2044 sq/ft height 9'
Second Floor: 380 sq/ft height 9'
Roof
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Outdoor Spaces
Deck
Rooms

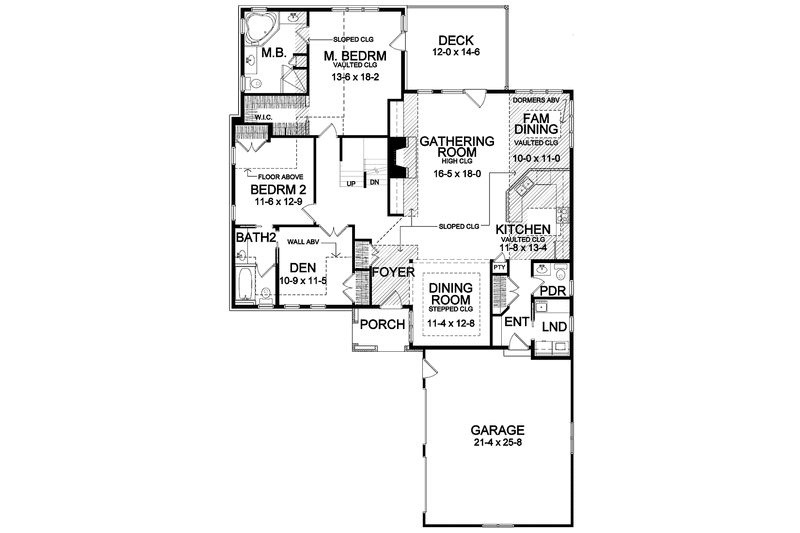

Bedroom 2:
146 sq/ft width 11' 6" x depth 12' 9"
Bedroom 3:
183 sq/ft width 15' 4" x depth 12'
Deck:
174 sq/ft width 12' x depth 14' 6"
Den:
122 sq/ft width 10' 9" x depth 11' 5"
Dining Room:
143 sq/ft width 11' 4" x depth 12' 8"
Family Dining Room:
110 sq/ft width 10' x depth 11'
Garage:
547 sq/ft width 21' 4" x depth 25' 8"
Gathering Room:
295 sq/ft width 16' 5" x depth 18'
Kitchen:
155 sq/ft width 11' 8" x depth 13' 4"
Master Bedroom:
245 sq/ft width 13' 6" x depth 18' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

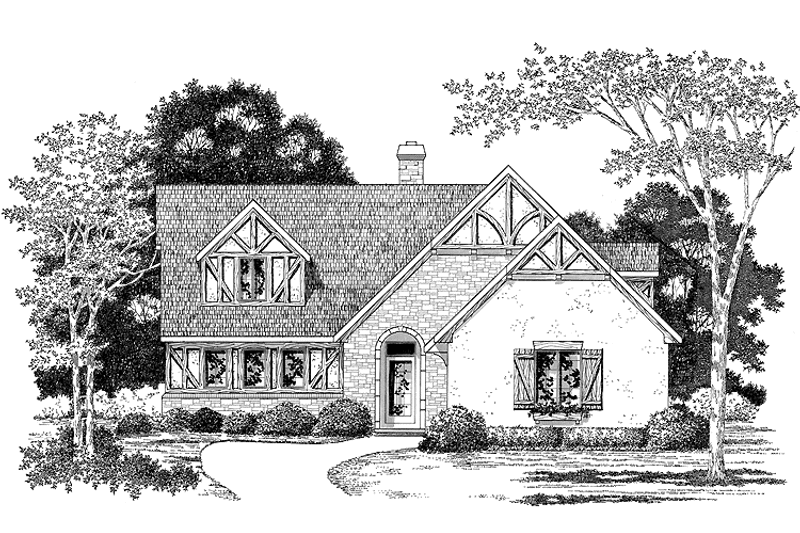

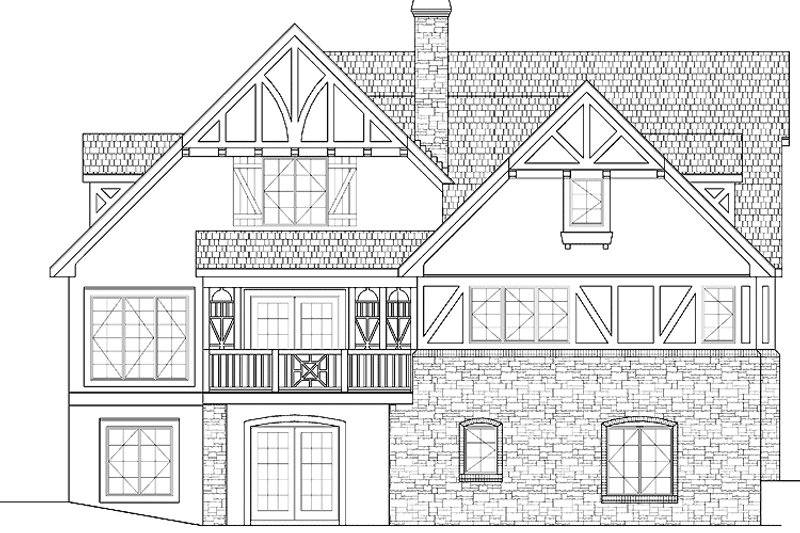

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

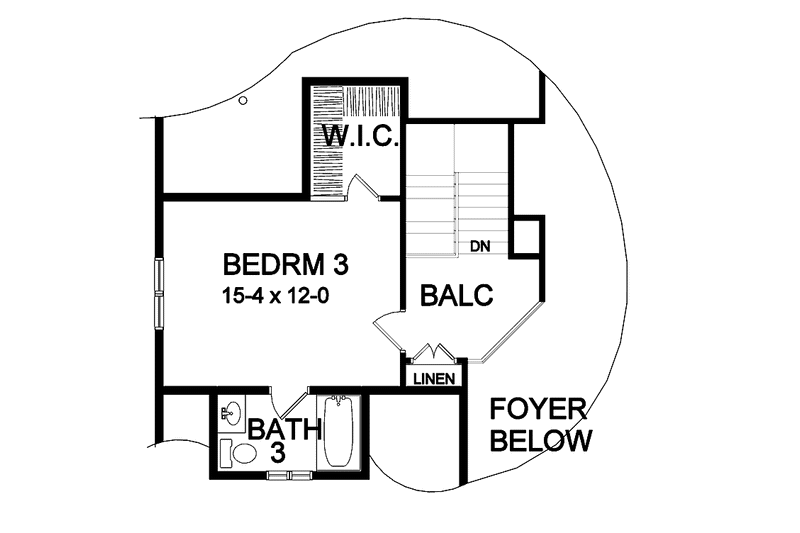

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$675.00
$750.00
$900.00
$1700.00
$600.00
Foundation
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$100.00
$40.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
