PLAN 456-84
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 41' 8"
Height : 32'
Width : 65'
Area
Bonus: 316 sq/ft

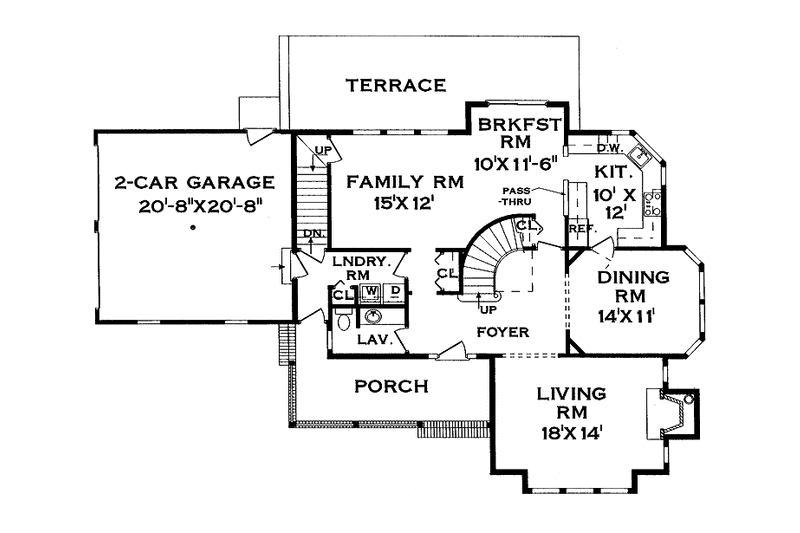

First Floor: 1292 sq/ft height 8'

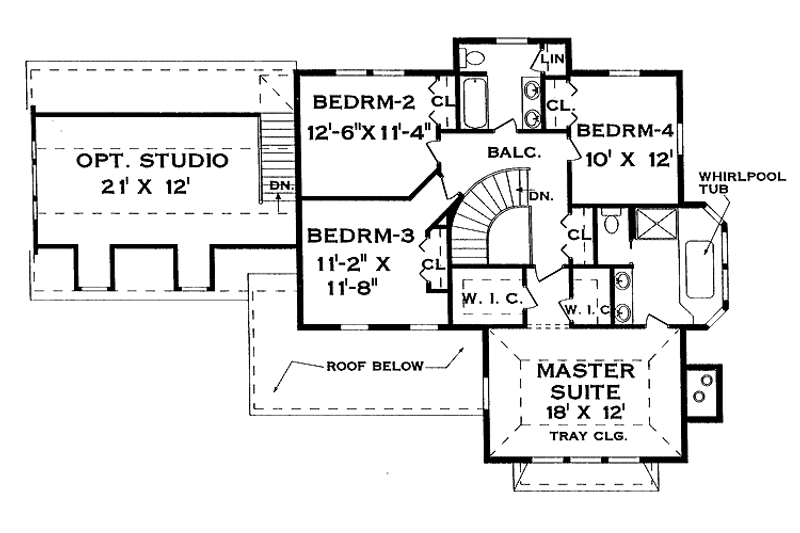

Second Floor: 1135 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Rooms
3rd BR Closet:
12 sq/ft width 6' x depth 2'
Bedroom 2:
141 sq/ft width 12' 6" x depth 11' 4"
Bedroom 2 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 3:
130 sq/ft width 11' 2" x depth 11' 8"
Bedroom 3 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 4:
120 sq/ft width 10' x depth 12'
Bedroom 4 Closet:
9 sq/ft width 4' 8" x depth 2'
Bonus Room - Finished:
291 sq/ft width 24' 4" x depth 12'
Breakfast Room:
115 sq/ft width 10' x depth 11' 6"
Dining Room:
154 sq/ft width 14' x depth 11'
Foyer:
121 sq/ft width 11' x depth 11'
Garage:
413 sq/ft width 20' 8" x depth 20'
Gathering Room:
180 sq/ft width 15' x depth 12'
Hall Bathroom:
61 sq/ft width 7' 8" x depth 8'
Hall Closet:
8 sq/ft width 4' 3" x depth 2'
Kitchen:
120 sq/ft width 10' x depth 12'
Laundry Room:
44 sq/ft width 7' 10" x depth 5' 8"
Living Room:
252 sq/ft width 18' x depth 14'
Master Bathroom:
121 sq/ft width 11' x depth 11'
Master Bedroom:
216 sq/ft width 18' x depth 12'
Master Closet:
35 sq/ft width 6' 8" x depth 5' 4"
Porch - Front:
234 sq/ft width 21' 4" x depth 11'
Powder Room:
37 sq/ft width 7' 8" x depth 4' 10"
Walk-In Closet:
18 sq/ft width 3' 6" x depth 5' 2"
What's Included In This Plan Set

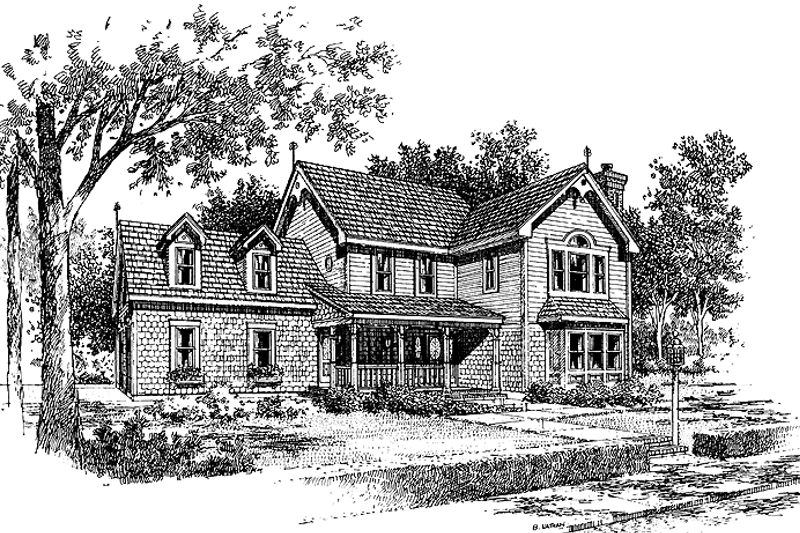

- Exterior Elevations: showing the front, rear, and side views with standard and alternate material choices; all elevations are usually ¼" scale.
- Foundation plans: separate foundation plans are usually provided for a basement/crawl space, and slab, unless otherwise noted. All are drawn at ¼" scale and include first floor framing information for basement/crawl spaces, including beams, girders, columns and piers. Some plans include walk-out(daylight) basement options as well.
- Floor plans: ¼" scale for each floor, including all room dimensions, door and window sizes and locations, stairways, kitchens, baths, etc. Framing information for stick framed ceiling beams and/or second floor framing is included.
- Cross sections: ¼" scale cut-away views for each distinct area, showing all framing, ceiling details, heights, roof pitches, etc.
- Roof plan: a separate roof plan is usually provided showing all pitches, rafter sizes, valley, hip and ridge locations, and areas of double roof framing.
- Schematic electrical: shows suggested locations for outlets, switches and fixtures on either a separate drawing or directly on the floor plans.
- Kitchen cabinets: schematic drawings of all kitchen cabinets.
- Specifications: a separate 8 page outline specification of most materials, construction methods and techniques, in a format for customizing; for use in obtaining bids and as a contract document.
- Standard details: 2 additional drawing pages filled with standard construction details.
- Energy conservation details: 2 more drawing pages chock full of drawings and ideas on how to build to conserve energy.
- Making changes: finally we include a separate 6 page primer on choosing a contractor and making changes, as virtually everyone makes some changes in building their home.
Plan Set
$1125.00
$1235.00
$1310.00
$1320.00
Foundation
$0.00
$0.00
$150.00
Framing
$0.00
$150.00
Additional Options
$350.00
$50.00
$100.00
$39.00
$95.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
