PLAN 1064-13
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

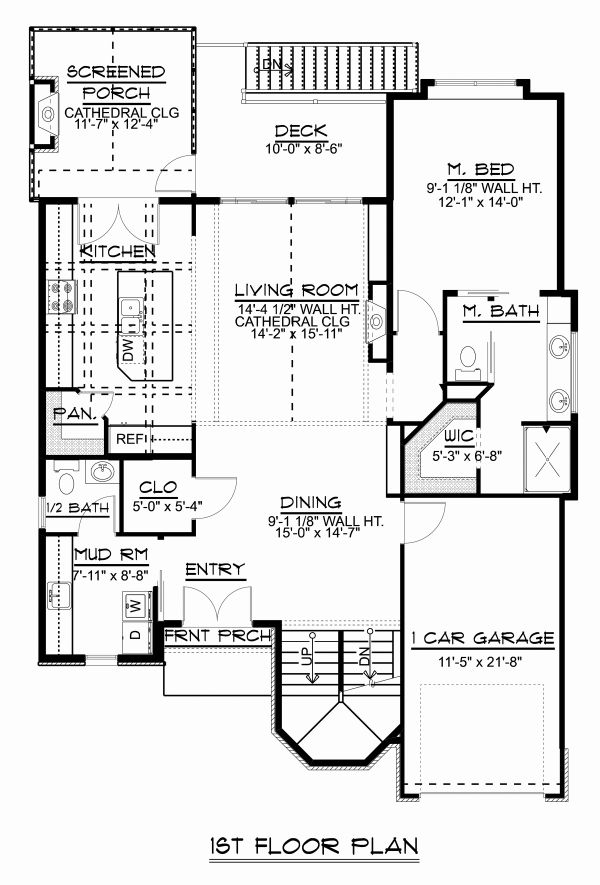

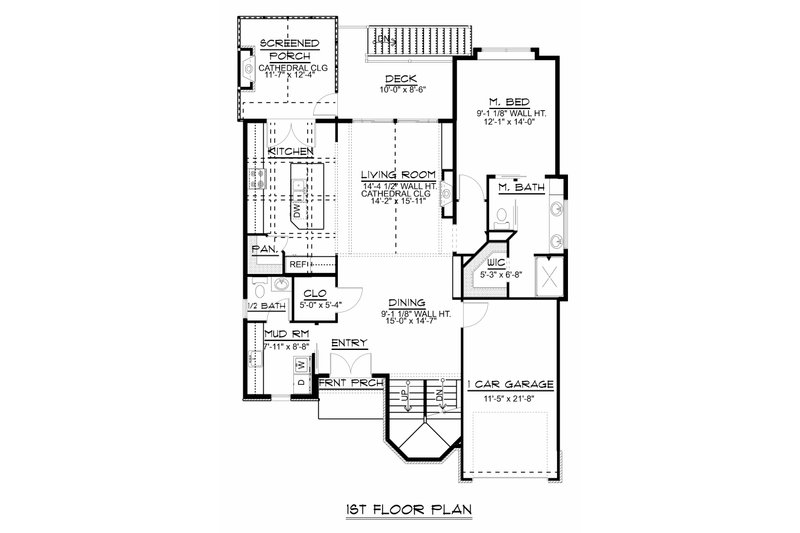

Floor Plan - Main Floor

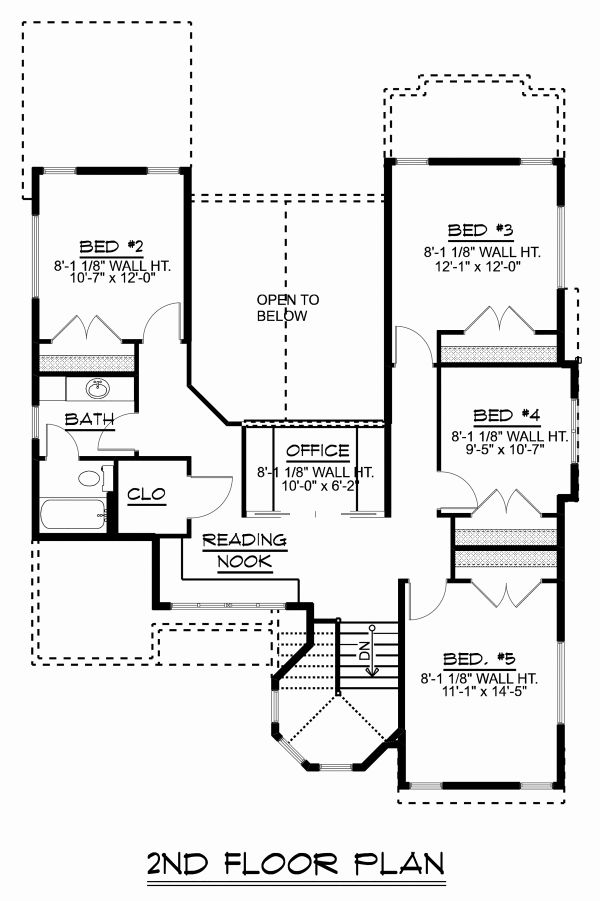

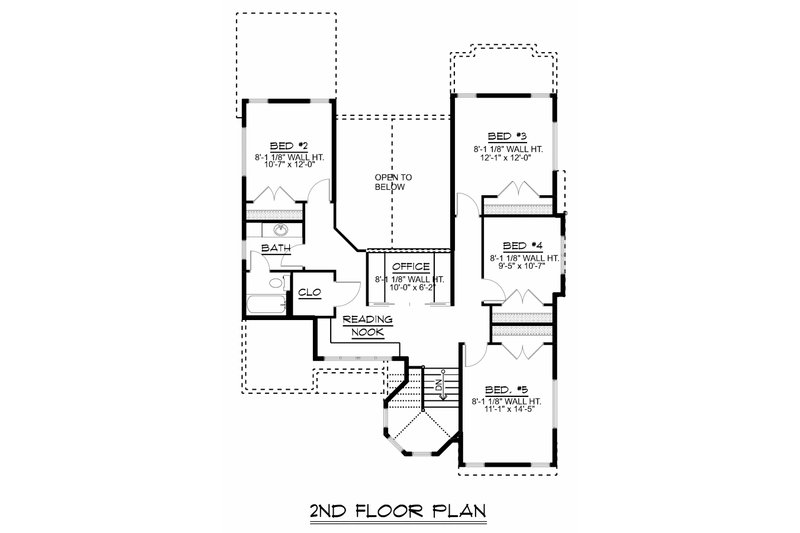

Floor Plan - Upper Floor

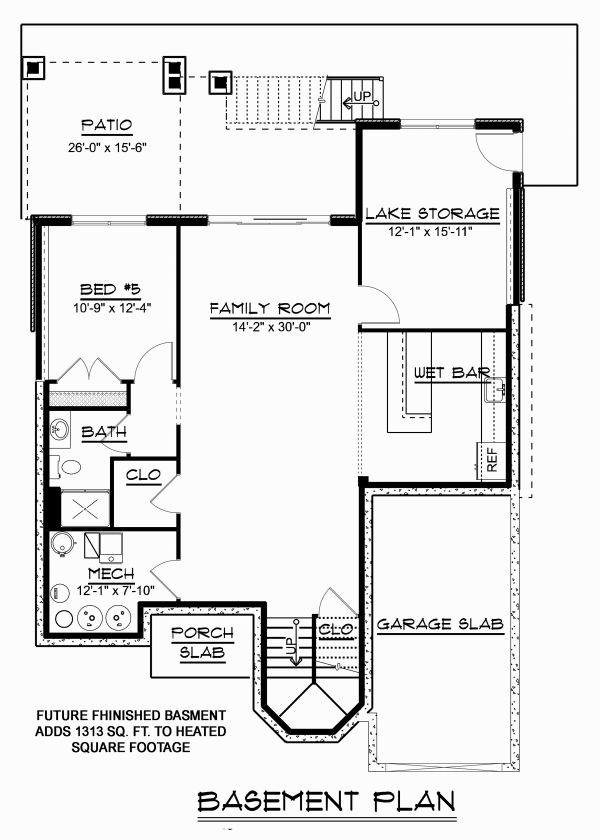

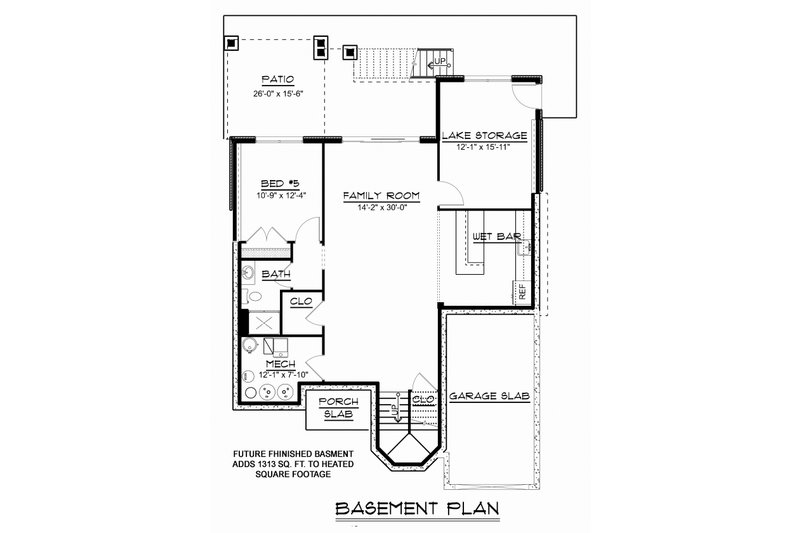

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 56' 6"
Height: 24' 2"
Width: 38' 6"
Area
Basement: 1313 sq/ft
Decks: 116 sq/ft
Garage: 258 sq/ft
Main Floor: 1330 sq/ft
Patios: 570 sq/ft
Porch: 191 sq/ft
Upper Floor: 1106 sq/ft
Ceiling
Garage Ceiling: 9'
Lower Ceiling: 9'
Main Ceiling: 9'
Upper Ceiling Ft: 8'
Roof
Roof Framing: Conventional
Roof Load: 30 psf
Roof Type: Asphalt Shingle
Exterior Wall Framing
Exterior Wall Finish: Siding/Stone/Shake
Framing: 2x6
Insulation: R-19
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Mud Room
Unfinished Future Space
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
1 Car Garage:
width 11' 5" x depth 21' 8"
Bedroom 2:
width 10' 7" x depth 12'
Bedroom 3:
width 12' 1" x depth 12'
Bedroom 4:
width 9' 5" x depth 10' 7"
Bedroom 5:
width 11' 1" x depth 14' 5"
Deck:
width 10' x depth 8' 6"
Dining:
width 15' x depth 14' 7"
Living Room:
width 14' 2" x depth 15' 11"
Master Bedroom:
width 12' 1" x depth 14'
Master Closet:
width 5' 3" x depth 6' 8"
Mud Room:
width 7' 11" x depth 8' 8"
Office:
width 10' x depth 6' 2"
Screened Porch:
width 11' 7" x depth 12' 4"
What's Included In This Plan Set
- Cover Sheet: Artist sketch of the front elevation and a plan sheet index
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing Room Dimensions, Wall Partitions, a Window and Door Schedule, Area Schedule, and General Notes
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details. * May be shown at 1/8" Scale.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the locations of lights, receptacles, switches, etc. throughout the dwelling with a legend.
- Mechanical Plan(s): Shows the suggested location of mechanical items like a water heater and furnace (reference only). Ductwork and HVAC systems not included.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Wall Sections for Porches, Main Structure, Garage, and Foundations (as Per Plan)
Plan Set
$1250.00
$1600.00
$1850.00
$2850.00
