PLAN 23-382
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

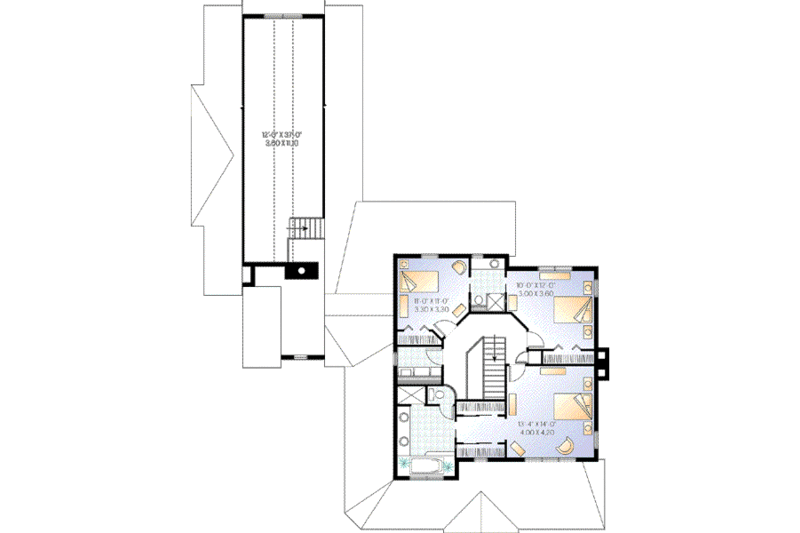

Floor Plans
Full Specs & Features
Dimension
Depth : 72'
Height : 31'
Width : 61' 4"
Area
Basement Unfinished: 1448 sq/ft
Bonus: 468 sq/ft
First Floor: 1448 sq/ft height 9'
Garage: 827 sq/ft
Second Floor: 1000 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Play Flex Room
Unfinished Future Space
Upstairs Laundry
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
13 sq/ft width 6' 8" x depth 2'
Bathroom 2:
43 sq/ft width 5' 2" x depth 8' 4"
Bedroom 2:
159 sq/ft width 13' 4" x depth 12'
Bedroom 2 Closet:
15 sq/ft width 7' 10" x depth 2'
Bedroom 3:
119 sq/ft width 10' 10" x depth 11'
Bedroom 3 Closet:
15 sq/ft width 7' 10" x depth 2'
Bonus Room - Finished:
447 sq/ft width 12' x depth 37' 4"
Den/Office or Bedroom 1:
86 sq/ft width 8' 8" x depth 10'
Foyer:
43 sq/ft width 7' 4" x depth 5' 11"
Garage:
408 sq/ft width 22' 8" x depth 18'
Garage Storage:
17 sq/ft width 5' 4" x depth 3' 4"
Gathering Room:
199 sq/ft width 15' x depth 13' 4"
Hall Closet:
9 sq/ft width 2' x depth 4' 8"
Kitchen:
215 sq/ft width 16' 4" x depth 13' 2"
Laundry Room:
37 sq/ft width 6' 8" x depth 5' 8"
Living Room:
382 sq/ft width 13' 4" x depth 28' 8"
Master Bathroom:
117 sq/ft width 8' 8" x depth 13' 7"
Master Bedroom:
186 sq/ft width 13' 4" x depth 14'
Master Closet:
63 sq/ft width 7' 4" x depth 8' 8"
Porch - Front:
285 sq/ft width 31' 8" x depth 9'
Porch - Left:
137 sq/ft width 6' 4" x depth 21' 8"
Porch - Rear:
165 sq/ft width 23' 8" x depth 7'
Powder Room:
43 sq/ft width 5' 6" x depth 7' 10"
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Foundation plans typically include: All exterior / interior dimensions, thickness of foundation walls (if variable), all structural details, location of stairwell, location and size of windows and location / dimensions of footings (where applicable and required)
- Floor Plan(s): Floor plans typically include: All interior / exterior dimensions (included but not as a schedule), location and sizes of doors / windows, indication of the structure above (second floor or roof), indication that details are on other pages
- Exterior Elevations: Front, rear, left & right sides) typically include: Floor/ceiling heights, dimensions of standard windows & roof overhangs, location of all needed flashings, height and location of foundation, type of finishing and textures, dimensions of chimney,
- Overhead Roof Plan(s): Roof plans typically include: location of all the different trusses, general overcharge of the roof compared to the floor footprint.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Details typically include: Roof sections, sections of concrete wall with wood connection, sections of walls with particular called out, section of concrete porch and connection with wood frame, foundation particulars, wall components.
- Wall Section(s): Wall sections typically include: All the details and components needed in construction.
*** Please note that some plans from this designer may be delayed 5-7 days as they are updating plan content. ***
Plan Set
$1500.25
$1619.25
$2350.25
Foundation
$0.00
$361.25
$361.25
$361.25
Additional Options
$212.50
$55.25
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
