PLAN 406-268

Key Specs


2465
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

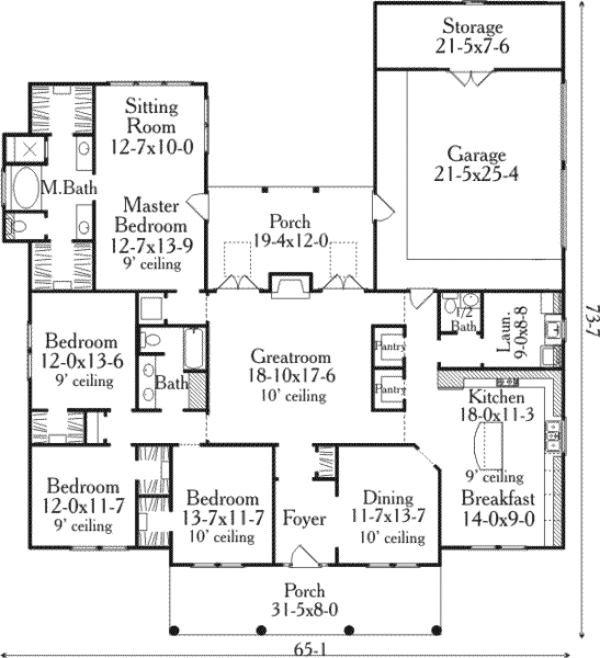

Floor Plan - Main Floor Plan
Reverse
Traditional Floor Plan - Main Floor Plan Plan #406-268

Full Specs & Features


Dimension
Depth : 73' 7"
Height : 28'
Width : 65' 1"
Area
First Floor: 2465 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Master Sitting Area
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

73 sq/ft width 7' 9" x depth 9' 6"

Bedroom 2:

157 sq/ft width 13' 7" x depth 11' 7"

Bedroom 2 Closet:

20 sq/ft width 3' 8" x depth 5' 8"

Bedroom 3:

138 sq/ft width 12' x depth 11' 7"

Bedroom 3 Closet:

20 sq/ft width 3' 8" x depth 5' 8"

Bedroom 4:

162 sq/ft width 12' x depth 13' 6"

Bedroom 4 Closet:

22 sq/ft width 6' x depth 3' 8"

Breakfast Room:

126 sq/ft width 14' x depth 9'

Dining Room:

157 sq/ft width 11' 7" x depth 13' 7"

Foyer:

94 sq/ft width 7' x depth 13' 6"

Garage:

542 sq/ft width 21' 5" x depth 25' 4"

Garage Storage:

160 sq/ft width 21' 5" x depth 7' 6"

Half Bathroom:

21 sq/ft width 4' 8" x depth 4' 8"

Kitchen:

202 sq/ft width 18' x depth 11' 3"

Laundry Room:

78 sq/ft width 9' x depth 8' 8"

Master Bathroom:

123 sq/ft width 10' 2" x depth 12' 2"

Master Bedroom:

173 sq/ft width 12' 7" x depth 13' 9"

Master Closet:

39 sq/ft width 7' 2" x depth 5' 6"

Master Closet Two:

40 sq/ft width 7' 2" x depth 5' 8"

Pantry:

21 sq/ft width 4' 8" x depth 4' 8"

Porch - Front:

251 sq/ft width 31' 5" x depth 8'

Porch - Rear:

231 sq/ft width 19' 4" x depth 12'

Powder Room:

20 sq/ft width 4' 6" x depth 4' 6"

What's Included In This Plan Set


  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
» See important information before purchasing.

Plan Set

5 Copy Set :
$1045.00
5 printed plan sets mailed to you.
8 Copy Set :
$1145.00
8 printed plan sets mailed to you.
PDF Set :
$1200.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$350.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets :
$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$65.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
$255.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
