PLAN 927-939
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

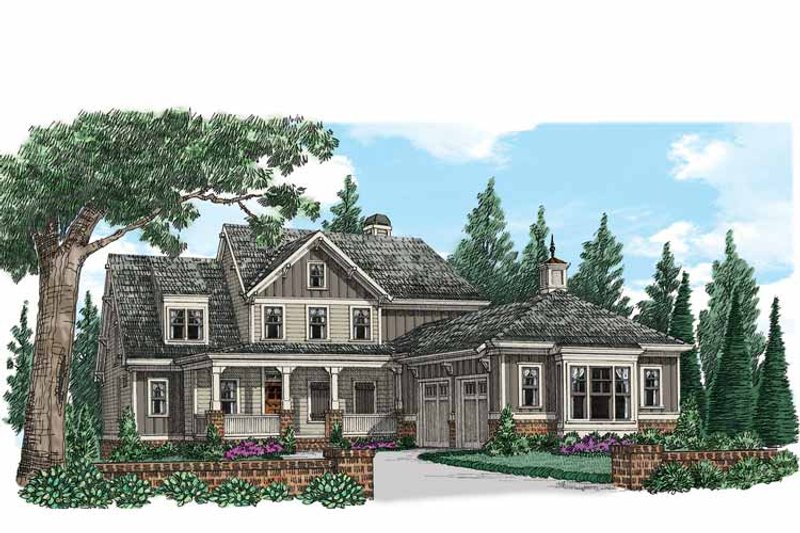

Decorative columns define spaces in this home's very open configuration. The dining room, vaulted grand room, and bayed breakfast nook make up the core of the home's gathering spaces, along with the island kitchen. Enjoy views of the covered porch while sitting next to the fireplace in the grand room. Built-in cabinets keep DVDs or photo albums organized. The first-floor master suite takes up the left wing of the home, and features a decorative ceiling, large walk-in closet, and separate tub and shower. Three bedrooms upstairs access the tech loft. Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 70' 6"
Height : 28' 6"
Width : 53' 6"
Height : 28' 6"
Width : 53' 6"
Area
Basement Unfinished: 1640 sq/ft
First Floor: 1640 sq/ft
Garage: 545 sq/ft
Second Floor: 834 sq/ft
First Floor: 1640 sq/ft
Garage: 545 sq/ft
Second Floor: 834 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Rear Porch
Deck
Covered Rear Porch
Deck
Rooms
Bedroom 2:
150 sq/ft width 12' 6" x depth 12'
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 4:
129 sq/ft width 10' 10" x depth 12'
Breakfast:
117 sq/ft width 10' 3" x depth 11' 5"
Dining Room:
150 sq/ft width 12' x depth 12' 6"
Family Room:
306 sq/ft width 19' 2" x depth 16'
Foyer:
55 sq/ft width 5' 6" x depth 10'
Garage:
501 sq/ft width 21' 5" x depth 23' 5"
Kitchen:
190 sq/ft width 13' 10" x depth 13' 9"
Laundry Room:
45 sq/ft width 8' x depth 5' 8"
Loft:
55 sq/ft width 5' 6" x depth 10'
Master Bathroom:
113 sq/ft width 9' 7" x depth 11' 10"
Master Bedroom:
208 sq/ft width 16' x depth 13'
Master Closet:
74 sq/ft width 9' x depth 8' 3"
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.

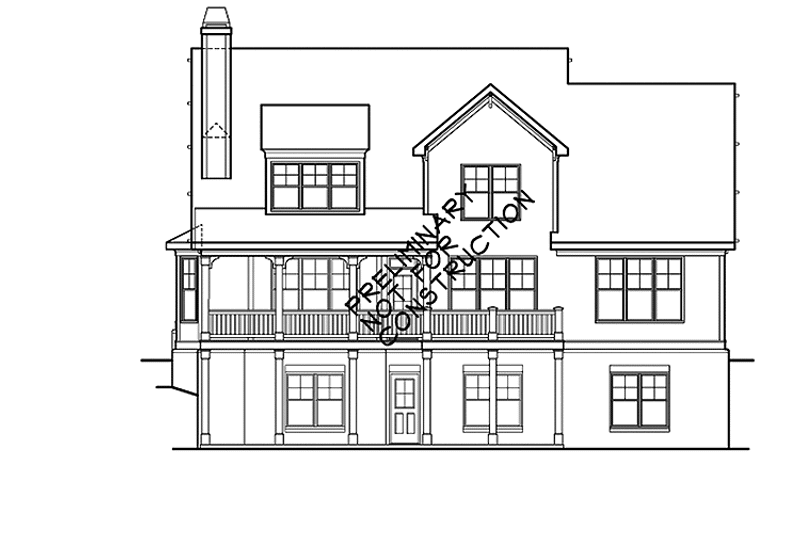

- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.

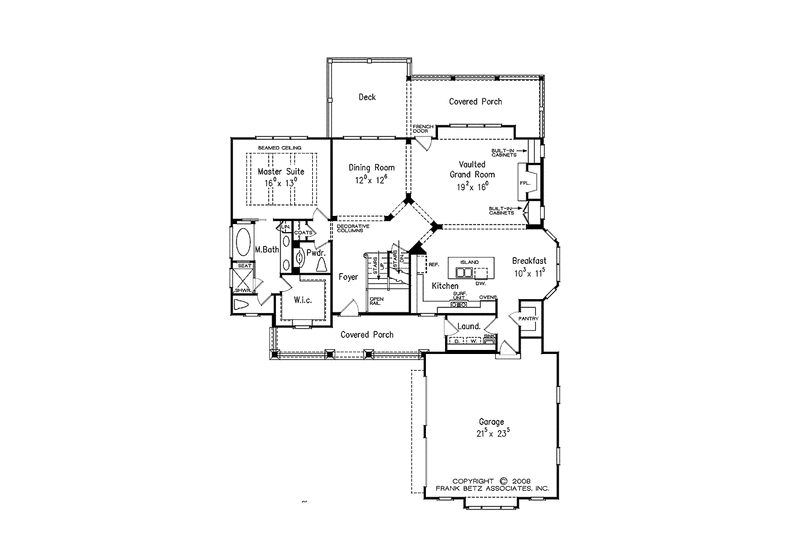

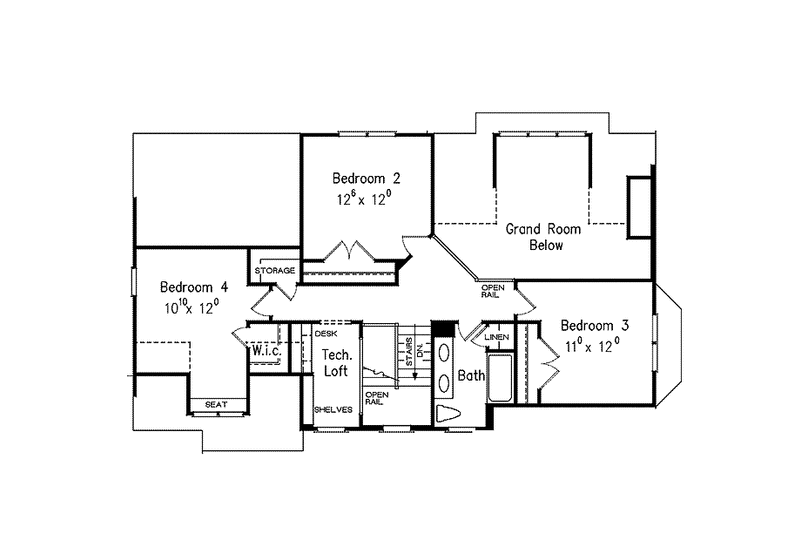

- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-888-447-1946
Plan Set
