PLAN #120-184

Key Specs


2482
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


This elegant mountain lodge style craftsman home lives larger than its' 2500 square feet floor plan due to a clever open plan for the public spaces and angled garage and Master Suite. Two "master suites" on the first floor makes this house ideal for families with live-in help, returning children or parents in the house. A generous master bath and large walk-in closets, and beautifully integrated outdoor living features make this house a best seller.

Floor Plans


Floor Plan - Main Floor Plan

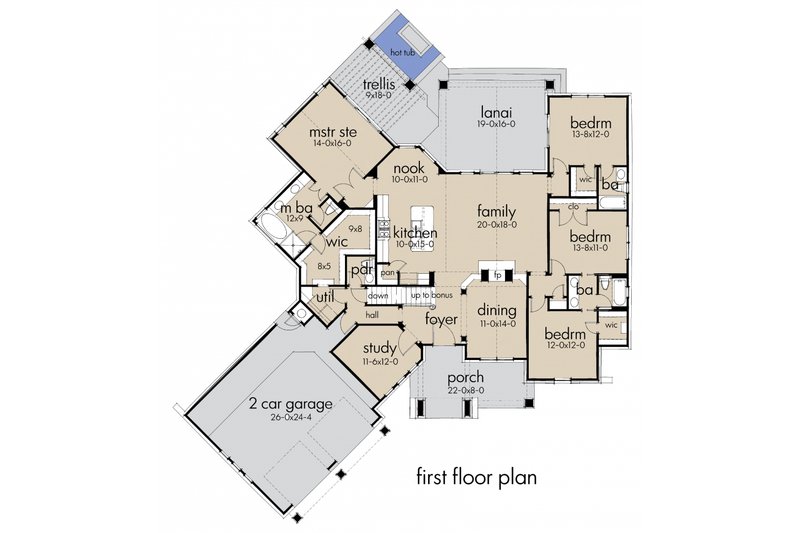

Craftsman style house plan, main level floor plan

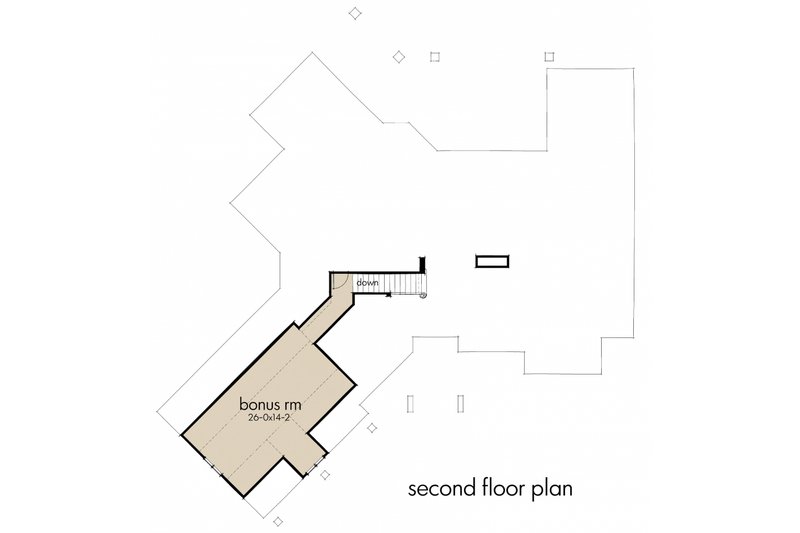

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #120-184

Full Specs & Features


Dimension
Depth : 86' 6"
Height : 29' 4"
Width : 81' 6"
Area
Bonus: 473 sq/ft
First Floor: 2482 sq/ft height 9'
Garage: 695 sq/ft
Ceiling
Ceiling Details : Vaults at Family, Dining and Master
Bonus Ceiling : 9'
Garage Ceiling : 8'
Main Ceiling : 10'
Roof
Roof Framing : stick
Roof Load : 40
Primary Pitch : 12:12
Secondary Pitch : 14:12
Roof Type : Composition
Exterior Wall Framing
Insulation : R-15
Exterior Wall Finish : stone/shake
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Jack Jill Bath
Bonus Play Flex Room
Den Office Study Computer
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Unusual Shape
Rooms

Bedroom 2:

width 13' 8" x depth 12'

Bedroom 3:

width 13' 8" x depth 11'

Bedroom 4:

width 12' x depth 12'

Bonus:

473 sq/ft width 26' x depth 14' 2"

Dining:

width 11' x depth 14'

Garage:

695 sq/ft width 26' x depth 24' 4"

Kitchen:

width 10' x depth 15'

Lanai:

305 sq/ft width 19' x depth 16'

Master Bath:

width 12' x depth 9'

Master Bedroom:

width 14' x depth 16'

Nook:

width 10' x depth 11'

Pantry:

width 3' 8" x depth 3' 8"

Porch Front:

196 sq/ft width 22' x depth 8'

Study:

width 11' 6" x depth 12'

Trellis Area:

width 9' x depth 18'
